RT530E-2 SERVICE MANUAL
14, 15
17
6759-3
Item
1 Outrigger Box Assembly
2 Hex Nut
3 Capscrew
4 Pin
5 Hex Nut
6 Capscrew
7 Adjusting Plate
8 Hex Nut
9 Setscrew
GROVE
1
4, 5, 6
18
7
Description
Published 4-22-15, Control # 556-00
16
2, 3
8, 9, 10, 11, 12, 13
Item
10 Capscrew
11 Plate
12 Wear Pad
13 Flatwasher
14 Cotter Pin
15 Clevis Pin
16 Extension Cylinder
17 Cover
18 Jack Cylinder
UNDERCARRIAGE
14, 15
2, 3

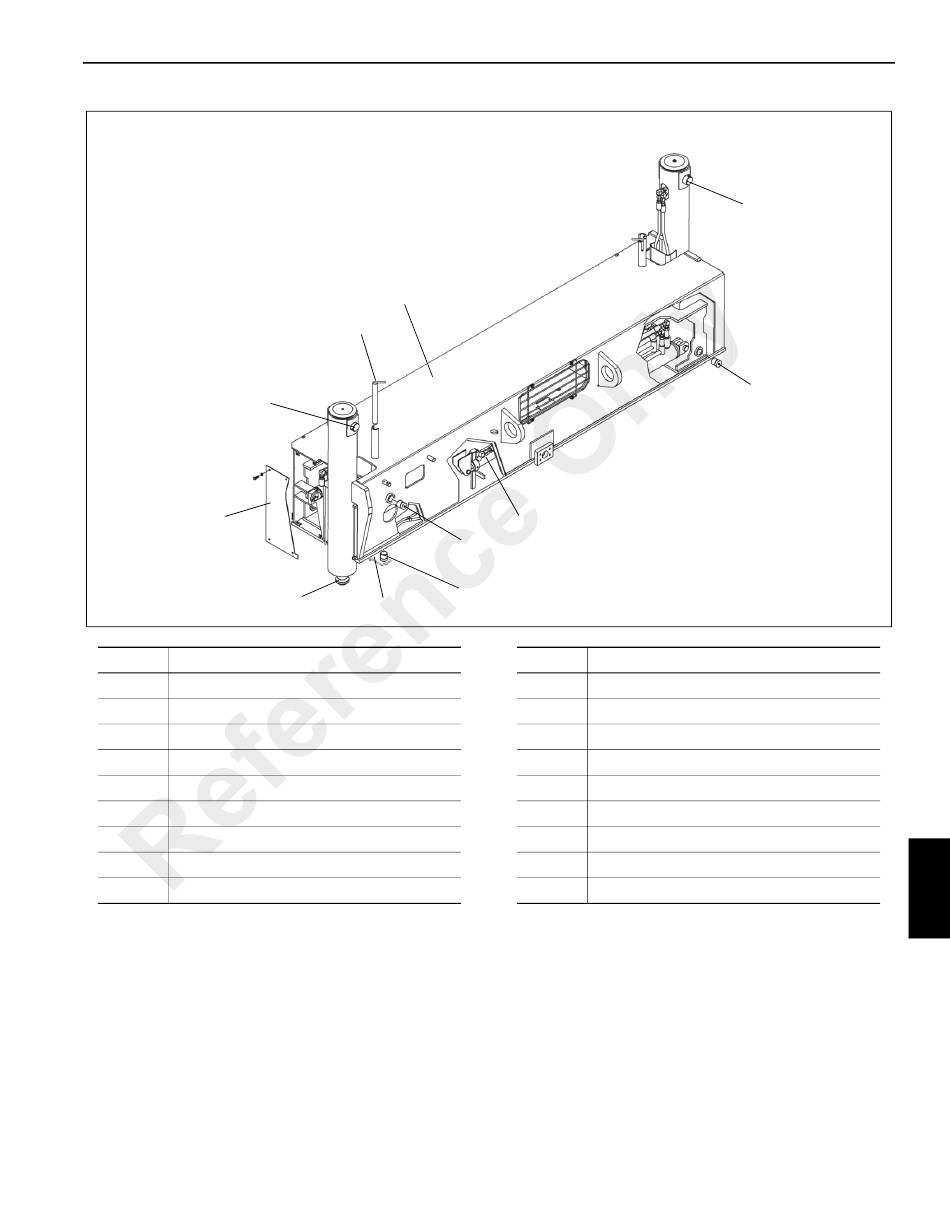

FIGURE 8-20
Description
8-29
