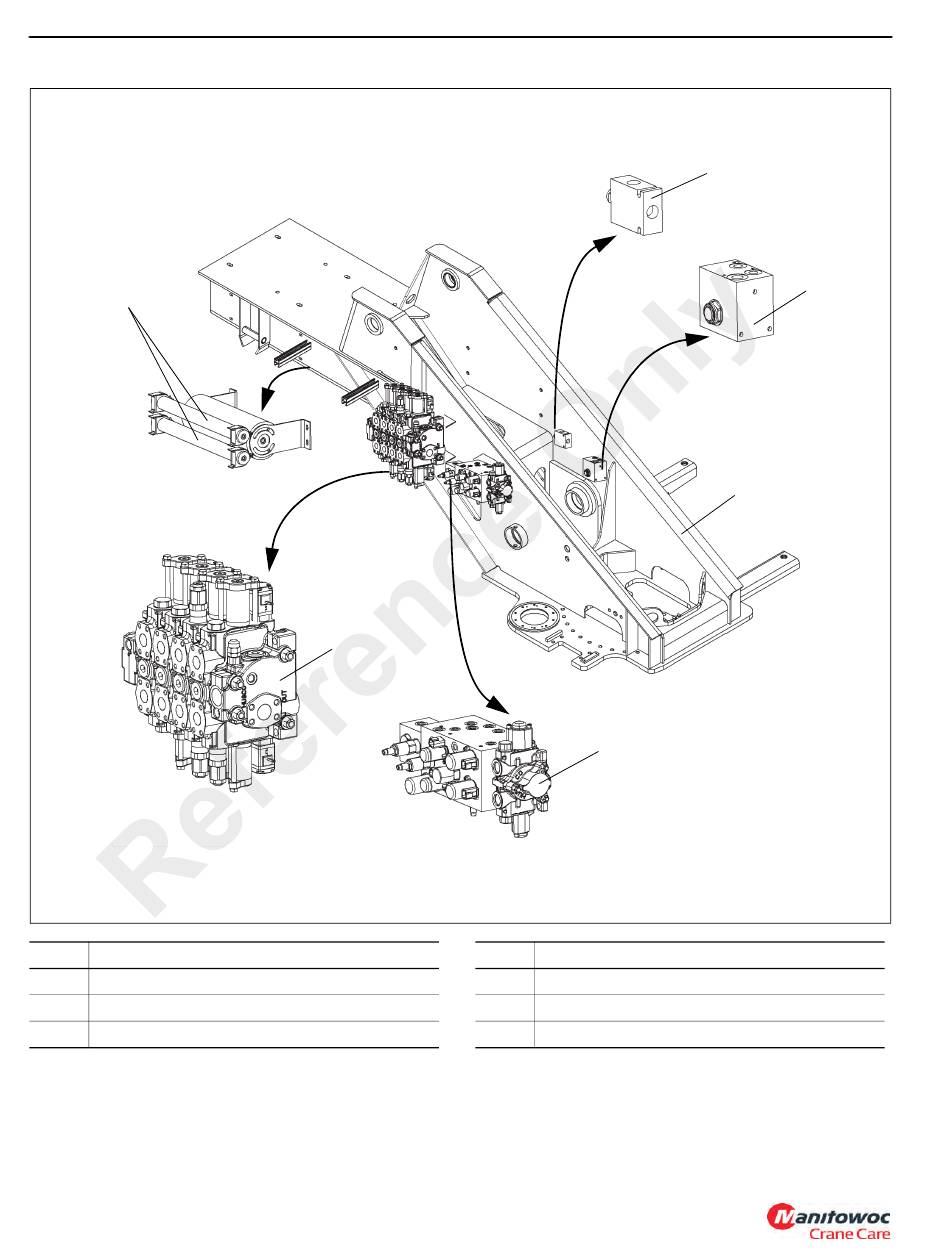

HYDRAULIC SYSTEM
5
Item
1 Hoist/Telescope/Lift Directional Valve
2 Swing/Steer Directional Valve
3 Service Brake Dual Accumulator Charge Valve
2-28
1
SUPERSTRUCTURE
Description
Published 4-22-15, Control # 556-00
RT530E-2 SERVICE MANUAL
2
Item
4 Secondary Steer Valve (CE Option)
5 Accumulator
6 Superstructure
4
3
6
6726
FIGURE 2-14
Description
