RT530E-2 SERVICE MANUAL
Item Description
1 Slip Ring Assembly
2 Capscrew
3 Washer
4 Hydraulic Swivel
5 Retaining Plate
6 Capscrew
7 Hex Nut
8 Adapter
9 Hose Nipple
10 Adapter
11 Plate
12 Capscrew
13 Jam Nut
14 Flatwasher
15 Capscrew
16 Hose Nipple
17 Adapter
18 Turntable Base Plate
19 Carrier Top Plate
20 Capscrew
21 Washer
22 Bushing
23 Plug
24 Retaining Plate
GROVE
11
12, 13, 14, 15
8, 9, 10
Forward
18
19
Published 4-22-15, Control # 556-00
SWING SYSTEM
1
2, 3
16, 17
4
5
6, 7
6733-1
20, 21
22
23
6752-2
24

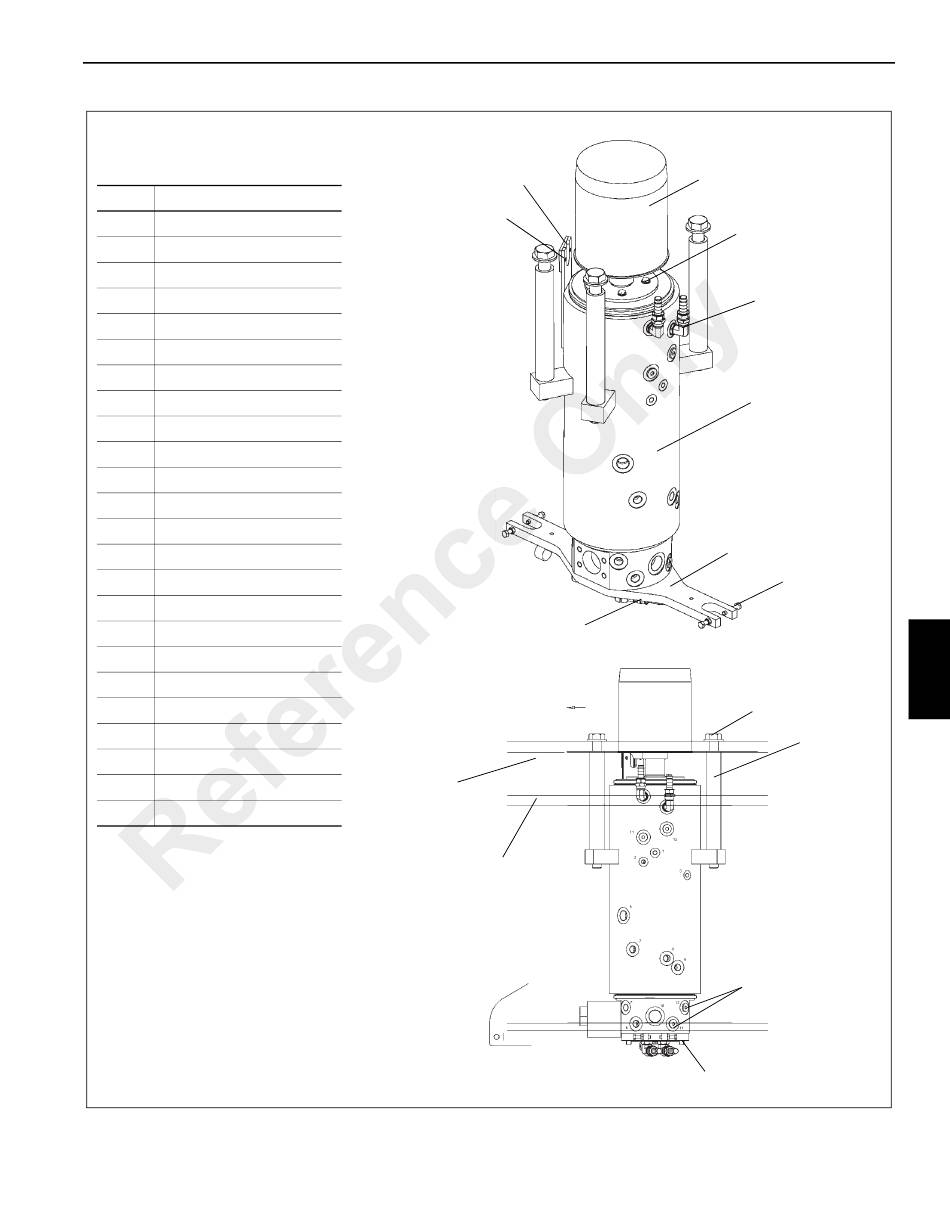

FIGURE 6-5
