RT530E-2 SERVICE MANUAL

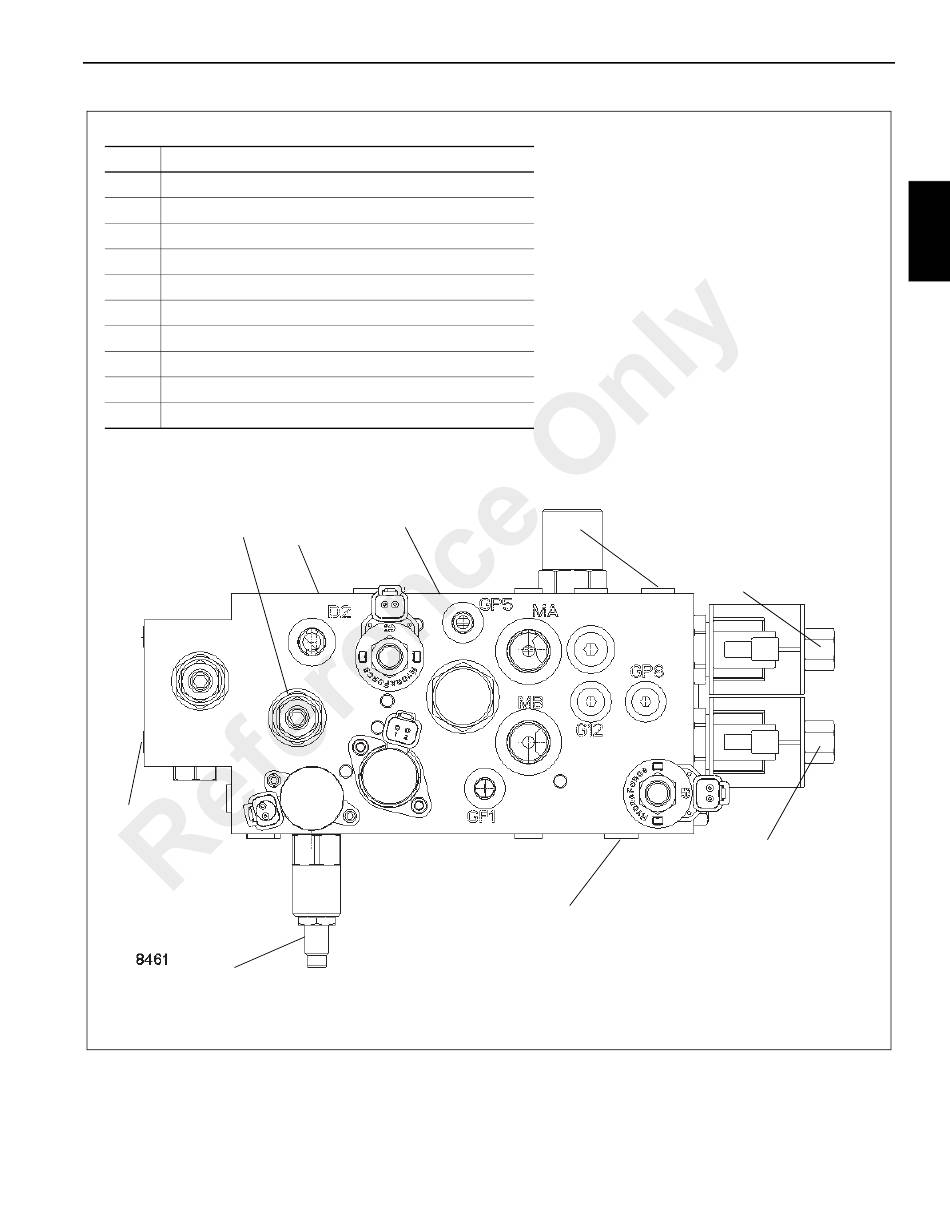

Item
1 Procedure G- Pilot Supply PSI Reducing Valve
2 Procedure H - Swing Brake PSI Reducing Valve
3 Procedure C - Swing Left Port Relief Valve
4 Procedure F - Front Steer Load Sense Relief Valve
5 Procedure C - Swing Right Port Relief Valve
6 Gauge Port 2
7 Gauge Port 3
8 Gauge Port 6
9 Pilot End Cap GP8 - Swing Left
10 Pilot End Cap GP9 - Swing Right
2
1
6
4
GROVE
Description
7
8
Published 4-22-15, Control # 556-00
HYDRAULIC SYSTEM
9
3
10
2
5
FIGURE 2-9
2-23
