Manitowoc Grove RT530E-2 Service And Maintenance Manual page 238

POWER TRAIN
3
8089-2
Item
1 Radiator Assembly
2 Drain Cock
3 Fan Guard
4 Overflow Tank
7-20
2
Description
Published 4-22-15, Control # 556-00
RT530E-2 SERVICE MANUAL
1
Installation
1. Position the radiator assembly in the carrier using a
lifting device and secure the radiator to the mount
bracket with the hardware.
2. Secure the support plates to each side of the radiator
using a bolt.
3. Attach the fan guard to the shroud using the hardware.
4. Connect all hoses to the radiator assembly as tagged
during removal.
5. Ensure the drain cock is closed.
6. Service the engine coolant system, transmission oil
system, and the hydraulic system as necessary. Start
the engine, operate all systems and check for leaks.
4

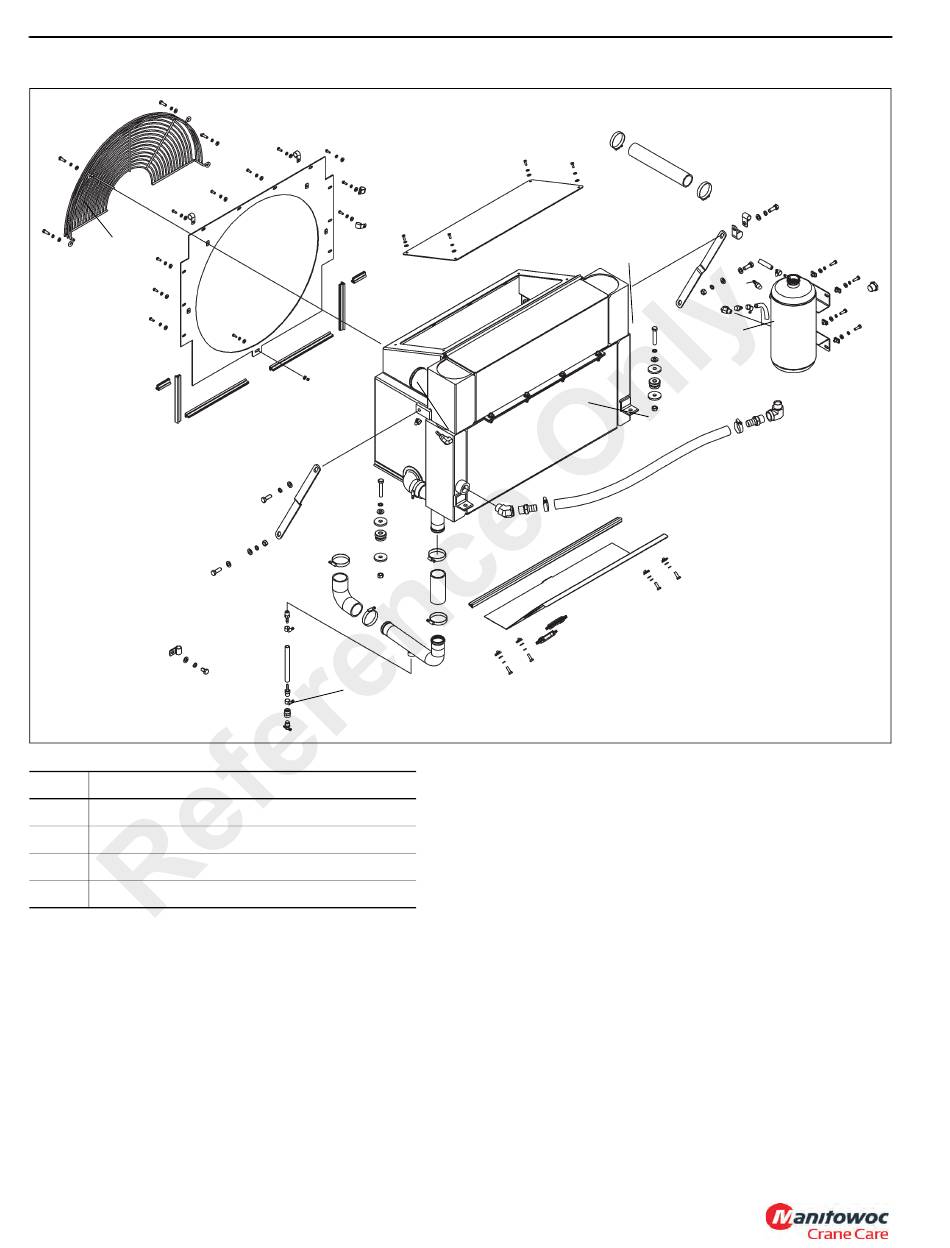

FIGURE 7-10
