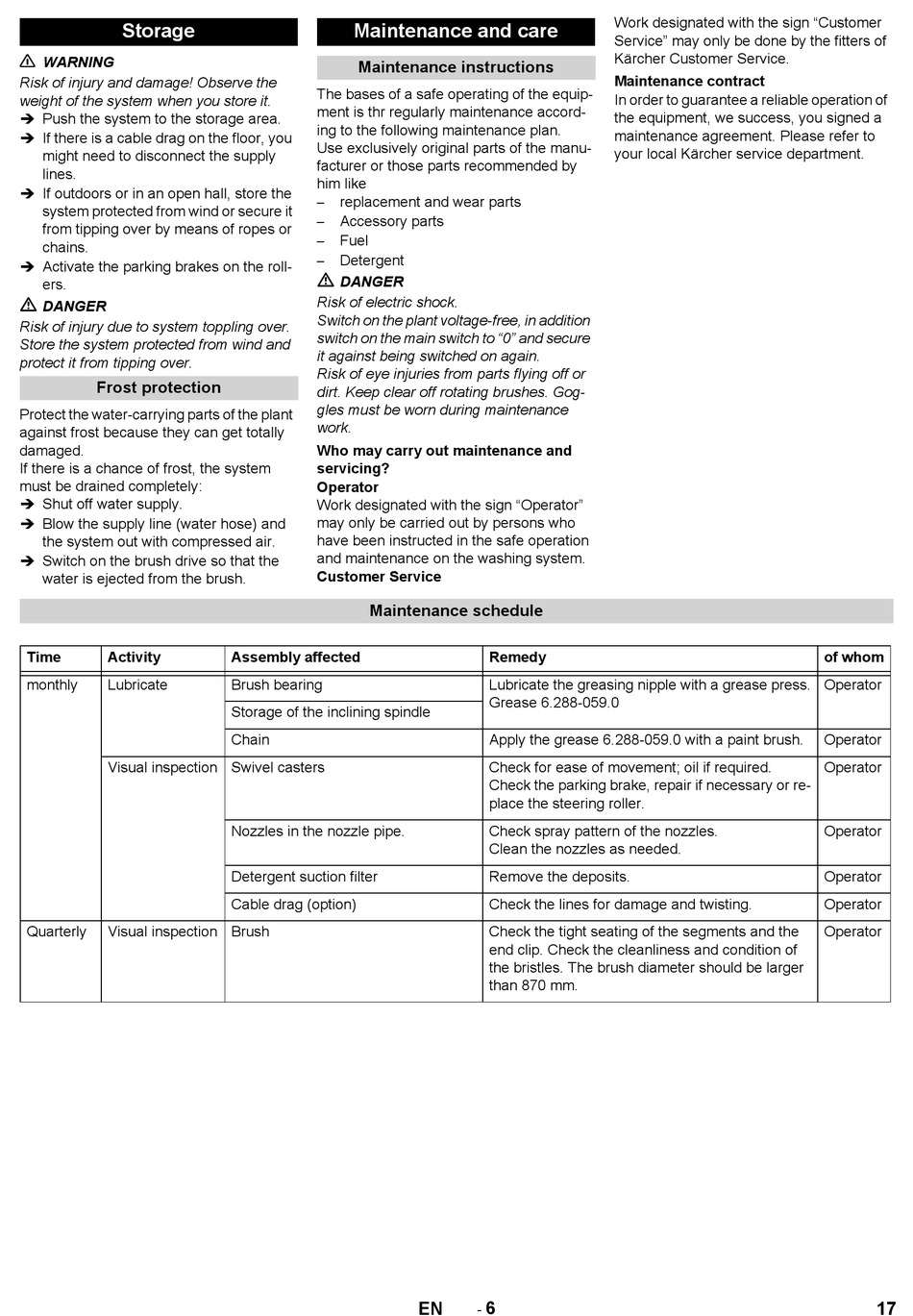

Kärcher RBS 6000 Original Instructions Manual page 17

Storage
WARNING
Risk of injury and damage! Observe the
weight of the system when you store it.
 Push the system to the storage area.
 If there is a cable drag on the floor, you
might need to disconnect the supply
lines.
 If outdoors or in an open hall, store the
system protected from wind or secure it
from tipping over by means of ropes or
chains.
 Activate the parking brakes on the roll-
ers.
DANGER
Risk of injury due to system toppling over.
Store the system protected from wind and
protect it from tipping over.
Frost protection
Protect the water-carrying parts of the plant
against frost because they can get totally
damaged.
If there is a chance of frost, the system
must be drained completely:
 Shut off water supply.
 Blow the supply line (water hose) and
the system out with compressed air.
 Switch on the brush drive so that the
water is ejected from the brush.
Time Activity
monthly Lubricate
Visual inspection Swivel casters
Quarterly Visual inspection Brush
Maintenance and care
Maintenance instructions
The bases of a safe operating of the equip-
ment is thr regularly maintenance accord-
ing to the following maintenance plan.
Use exclusively original parts of the manu-
facturer or those parts recommended by
him like
replacement and wear parts
–
Accessory parts
–
Fuel
–
Detergent
–
DANGER
Risk of electric shock.
Switch on the plant voltage-free, in addition
switch on the main switch to "0" and secure
it against being switched on again.
Risk of eye injuries from parts flying off or
dirt. Keep clear off rotating brushes. Gog-
gles must be worn during maintenance
work.
Who may carry out maintenance and
servicing?
Operator
Work designated with the sign "Operator"
may only be carried out by persons who
have been instructed in the safe operation
and maintenance on the washing system.
Customer Service
Maintenance schedule
Assembly affected
Brush bearing
Storage of the inclining spindle
Chain
Nozzles in the nozzle pipe.
Detergent suction filter
Cable drag (option)
Remedy
Lubricate the greasing nipple with a grease press.
Grease 6.288-059.0
Apply the grease 6.288-059.0 with a paint brush.
Check for ease of movement; oil if required.
Check the parking brake, repair if necessary or re-
place the steering roller.
Check spray pattern of the nozzles.
Clean the nozzles as needed.
Remove the deposits.
Check the lines for damage and twisting.
Check the tight seating of the segments and the
end clip. Check the cleanliness and condition of
the bristles. The brush diameter should be larger
than 870 mm.
6
-
EN
Work designated with the sign "Customer
Service" may only be done by the fitters of
Kärcher Customer Service.
Maintenance contract
In order to guarantee a reliable operation of
the equipment, we success, you signed a
maintenance agreement. Please refer to
your local Kärcher service department.
of whom
Operator
Operator
Operator
Operator
Operator
Operator
Operator
