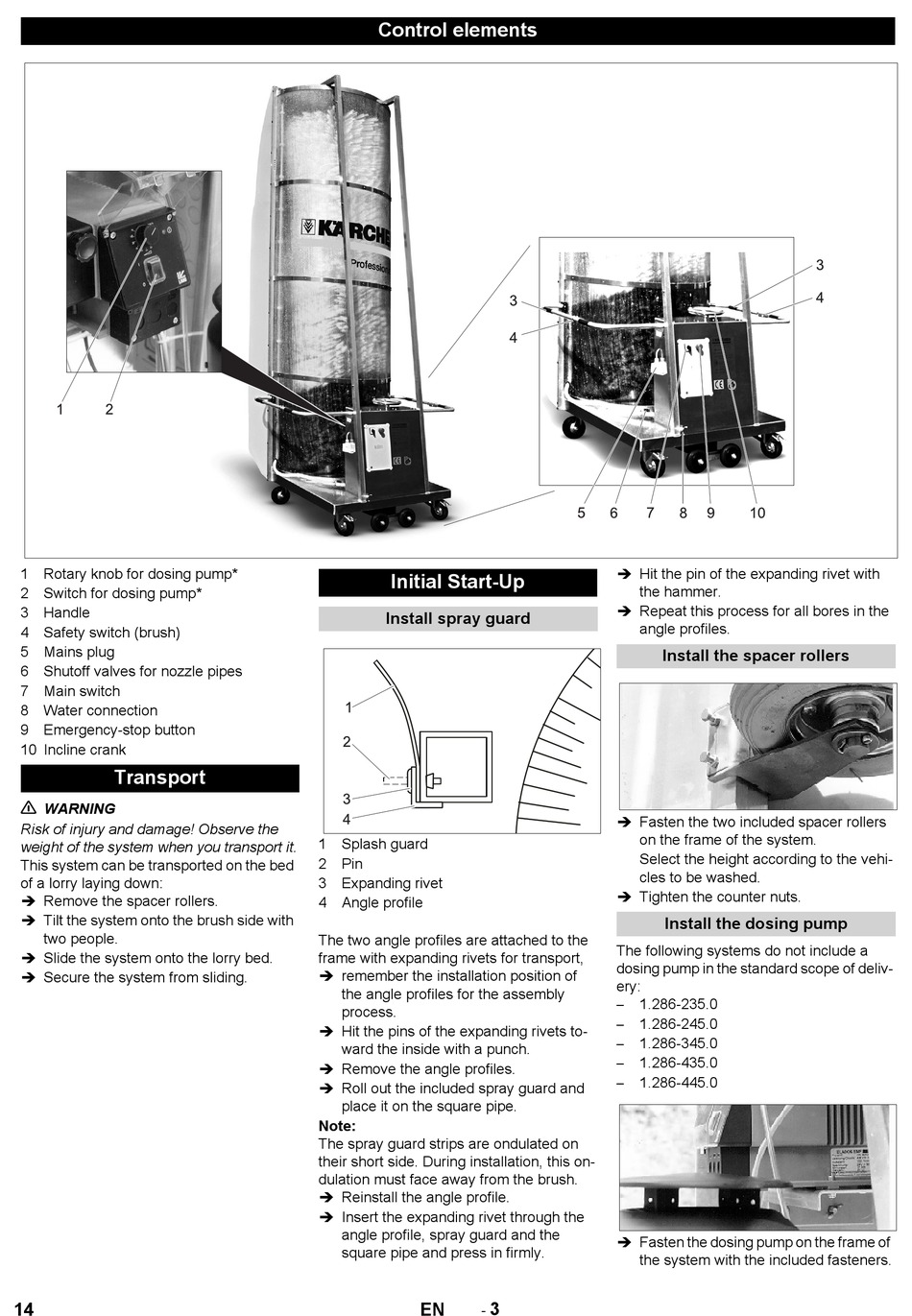

Kärcher RBS 6000 Original Instructions Manual page 14

1 Rotary knob for dosing pump*
2 Switch for dosing pump*
3 Handle
4 Safety switch (brush)
5 Mains plug
6 Shutoff valves for nozzle pipes
7 Main switch
8 Water connection
9 Emergency-stop button
10 Incline crank
Transport
WARNING
Risk of injury and damage! Observe the
weight of the system when you transport it.
This system can be transported on the bed
of a lorry laying down:
 Remove the spacer rollers.
 Tilt the system onto the brush side with
two people.
 Slide the system onto the lorry bed.
 Secure the system from sliding.
14
Control elements
Initial Start-Up
Install spray guard
1 Splash guard
2 Pin
3 Expanding rivet
4 Angle profile
The two angle profiles are attached to the
frame with expanding rivets for transport,
 remember the installation position of
the angle profiles for the assembly
process.
 Hit the pins of the expanding rivets to-
ward the inside with a punch.
 Remove the angle profiles.
 Roll out the included spray guard and
place it on the square pipe.
Note:
The spray guard strips are ondulated on
their short side. During installation, this on-
dulation must face away from the brush.
 Reinstall the angle profile.
 Insert the expanding rivet through the
angle profile, spray guard and the
square pipe and press in firmly.
3
-
EN
 Hit the pin of the expanding rivet with
the hammer.
 Repeat this process for all bores in the
angle profiles.
Install the spacer rollers
 Fasten the two included spacer rollers
on the frame of the system.
Select the height according to the vehi-
cles to be washed.
 Tighten the counter nuts.
Install the dosing pump
The following systems do not include a
dosing pump in the standard scope of deliv-
ery:
1.286-235.0
–
1.286-245.0
–
1.286-345.0
–
1.286-435.0
–
1.286-445.0
–
 Fasten the dosing pump on the frame of
the system with the included fasteners.
