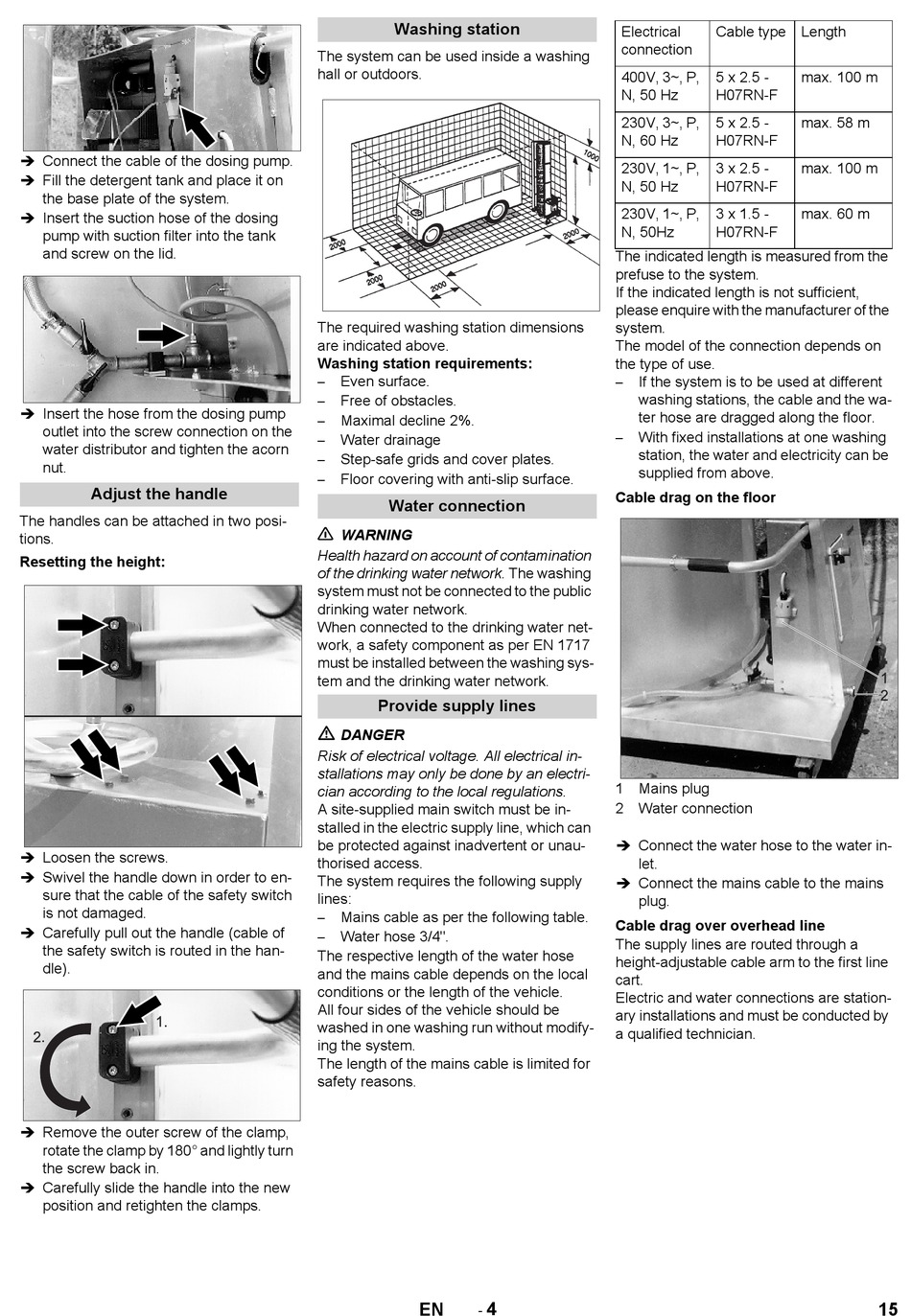

 Connect the cable of the dosing pump.
 Fill the detergent tank and place it on
the base plate of the system.
 Insert the suction hose of the dosing
pump with suction filter into the tank
and screw on the lid.
 Insert the hose from the dosing pump
outlet into the screw connection on the
water distributor and tighten the acorn
nut.
Adjust the handle
The handles can be attached in two posi-
tions.
Resetting the height:
 Loosen the screws.
 Swivel the handle down in order to en-
sure that the cable of the safety switch
is not damaged.
 Carefully pull out the handle (cable of
the safety switch is routed in the han-
dle).
 Remove the outer screw of the clamp,
rotate the clamp by 180° and lightly turn
the screw back in.
 Carefully slide the handle into the new
position and retighten the clamps.
Washing station
The system can be used inside a washing
hall or outdoors.
The required washing station dimensions
are indicated above.
Washing station requirements:
Even surface.
–
Free of obstacles.
–
Maximal decline 2%.
–
Water drainage
–
Step-safe grids and cover plates.
–
Floor covering with anti-slip surface.
–
Water connection
WARNING
Health hazard on account of contamination
of the drinking water network. The washing
system must not be connected to the public
drinking water network.
When connected to the drinking water net-
work, a safety component as per EN 1717
must be installed between the washing sys-
tem and the drinking water network.
Provide supply lines
DANGER
Risk of electrical voltage. All electrical in-
stallations may only be done by an electri-
cian according to the local regulations.
A site-supplied main switch must be in-
stalled in the electric supply line, which can
be protected against inadvertent or unau-
thorised access.
The system requires the following supply
lines:
Mains cable as per the following table.
–
Water hose 3/4".
–
The respective length of the water hose
and the mains cable depends on the local
conditions or the length of the vehicle.
All four sides of the vehicle should be
washed in one washing run without modify-
ing the system.
The length of the mains cable is limited for
safety reasons.
4
-
EN
Electrical Cable type Length
connection
400V, 3~, P, 5 x 2.5 -
N, 50 Hz H07RN-F
230V, 3~, P, 5 x 2.5 -
N, 60 Hz H07RN-F
230V, 1~, P, 3 x 2.5 -
N, 50 Hz H07RN-F
230V, 1~, P, 3 x 1.5 -
N, 50Hz H07RN-F
The indicated length is measured from the
prefuse to the system.
If the indicated length is not sufficient,
please enquire with the manufacturer of the
system.
The model of the connection depends on
the type of use.
If the system is to be used at different
–
washing stations, the cable and the wa-
ter hose are dragged along the floor.
With fixed installations at one washing
–
station, the water and electricity can be
supplied from above.
Cable drag on the floor
1 Mains plug
2 Water connection
 Connect the water hose to the water in-
let.
 Connect the mains cable to the mains
plug.
Cable drag over overhead line
The supply lines are routed through a
height-adjustable cable arm to the first line
cart.
Electric and water connections are station-
ary installations and must be conducted by
a qualified technician.
max. 100 m
max. 58 m
max. 100 m
max. 60 m
