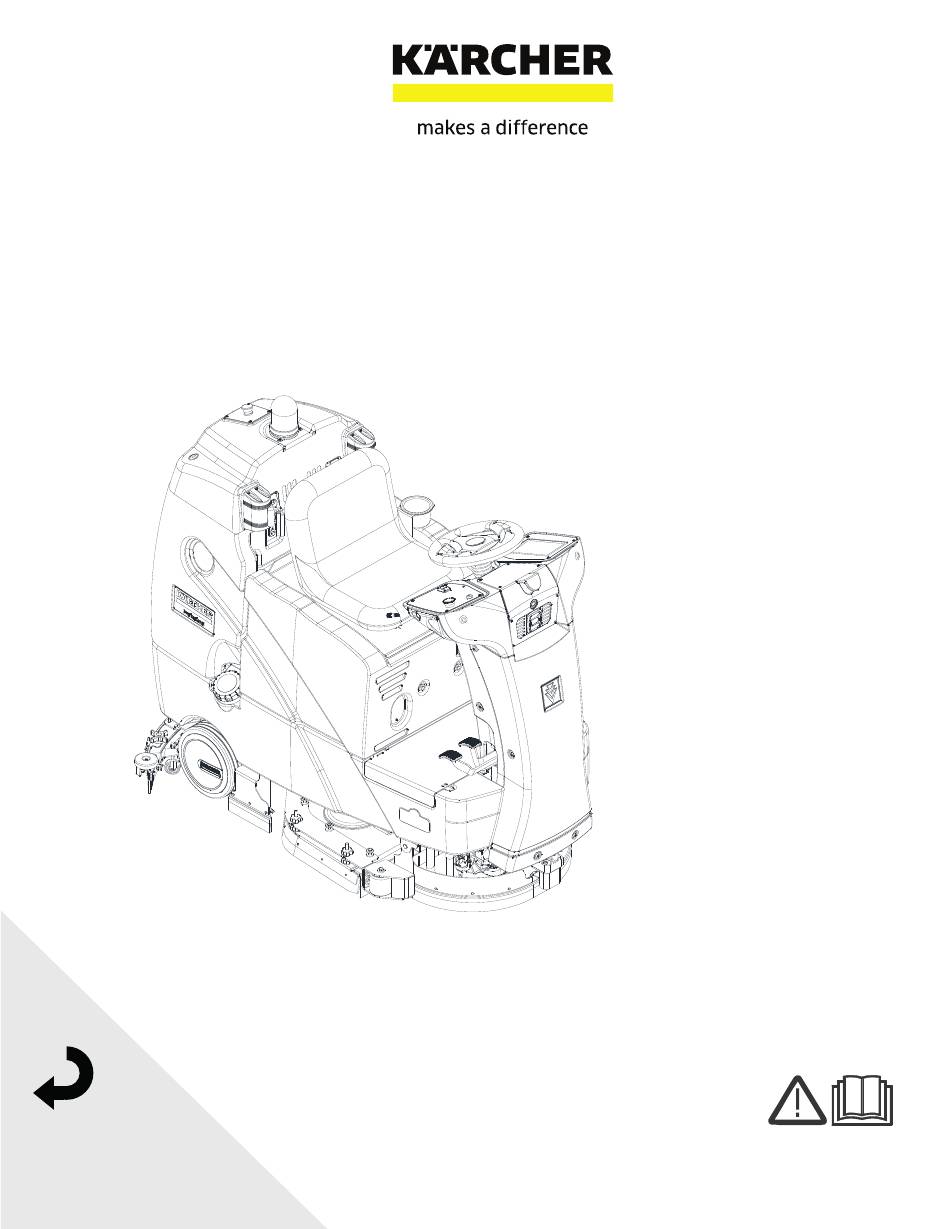

- Page 1 KIRA B100 R English Register 86450400-A 05/09/22 your product www.kaercher.com/welcome...
-
Page 2: Machine Data Label / Overview

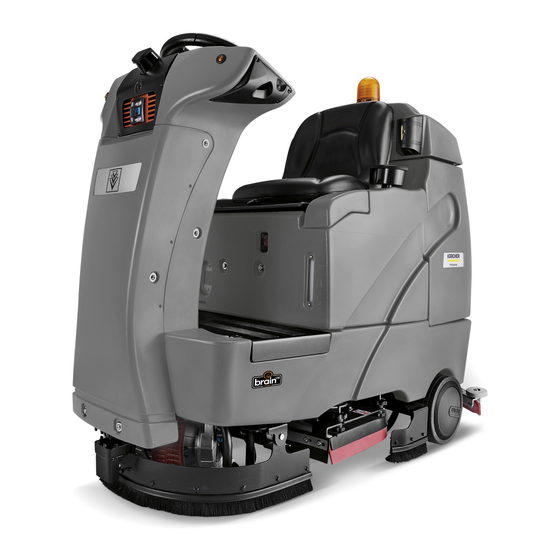

Overview The KIRA B100 R is a battery powered, stand-on, hard floor scrubber intended for commercial use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or pads, and then vacuums the soiled water back into the recovery tank. -
Page 3: Table Of Contents
Machine Storage......19 Technical Specifications ..... 20 8.645-040.0 Operator Manual KIRA B100 R... -
Page 4: How To Use This Manual
Always remember to recycle. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 5: Safety
Safety Safety Precautions • Batteries emit flammable hydrogen gas. • Explosion or fire can result. • Keep sparks and open flame away. If at any time the labels become illegible, promptly replace them. Figure 1: Explosion, fire, and shock hazard label, located in front of the operator seat Figure 2: Battery safety label, located under the operator seat... -
Page 6: Important Safety Instructions
Do not leave electrical cords or low-profile items—such as items with a height of less than 7 in (18 cm) from the ground—in the machine area of operation. The operating and storage temperature is 35°F to 100°F (2°C to 38°C). 8.645-040.0 Operator Manual KIRA B100 R... - Page 7 Repairs and specified maintenance tasks must only be performed by authorized personnel. Only use approved replacement parts. Use of unapproved parts could impair safety and potentially damage the machine. Read all instructions before performing any service or maintenance functions. 8.645-040.0 Operator Manual KIRA B100 R...
- Page 8 Only use brushes or pads provided with the machine or those specified by Brain Corporation or ICE. Use of unau- thorized brushes or pads could impair safety and potentially damage the machine. •Do not use flammable cleaning agents. •Drain all tanks and hoses prior to storing the machine. READ AND SAVE THESE INSTRUCTIONS 8.645-040.0 Operator Manual KIRA B100 R...
-
Page 9: Hazard Intensity Level
Never allow metal to lie across battery tops. Flammable materials can cause an explosion or fire. Do not use flammable materials in tanks. Flammable materials or reactive metals can cause explosion or fire. Do not pick up. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 10: Operations
3. Scrub Deck 4. Rear Squeegee 5. Side Perimeter Skirt 6. Side Squeegee 7. Lower LIDAR Sensor 8. Accelerator Pedal 9. Brake Pedal 10. Front 3d Camera 11. Front 2d Camera 12. Upper LIDAR Sensor 8.645-040.0 Operator Manual KIRA B100 R... -
Page 11: Machine Components 2
17. Front Drive Wheel 18. Front Perimeter Skirt 19. 10-inch Wheels 20. Solution Level View Window 21. Solution Port 22. Recovery Tank 23. Recovery Tank Cover 24. Retractable Safety Straps 25. Front Signal Lights 8.645-040.0 Operator Manual KIRA B100 R... -
Page 12: Machine Components 3
29. Recovery Tank Drain Hose 30. Clean Water Tank Drain Hose 31. Vacuum Hose 32. User Interface (UI) Screen 33. Cup Holder 34. Seat 35. Seat Adjustment Handle 36. Steering Wheel 37. Control Panel 8.645-040.0 Operator Manual KIRA B100 R... -
Page 13: Control Panel
Control Panel 38. Ignition Key Switch 39. Directional Switch 40. Vacuum Button 41. One-touch Button 42. Horn Button 43. Brush Pressure Control 44. Water Flow Control 45. Solution Flow Control 46. Emergency Stop Button 8.645-040.0 Operator Manual KIRA B100 R... -
Page 14: Machine Set Up & Installation
2. If using the pad driver, first attach the appropriate pad to the pad driver surface. Batteries emit hydrogen gas. Explosion or fire can result from hydrogen gas. Keep sparks and open flames away! Keep battery compartment open when charging. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 15: Mounting The Squeegee Assembly
The machine is equipped with a 6 liter detergent bottle. down automatically, all the presetting functions will Open the cap and when filling, watch the liquid level on turn on. the detergent level watching window. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 16: Brake Device
LED display screen, the vacuum motor will stop working and alarm. Please drain the water from the machine recovery tank. If there is a fault code F09 (Soln Tank Empty) on the LED display screen, the detergent system will 8.645-040.0 Operator Manual KIRA B100 R... -
Page 17: Electric Parking Brake Engagement
The brake has a mechanical over-ride that can be engaged so machine can be pushed or towed (slowly). Do not operate machine with brake disengaged. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 18: Tank Draining
5. When the batteries are fully charged, disconnect the charger from the AC wall outlet, then discon- nect the charger from the batteries. 6. Lower seat. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 19: Maintenance
7. Drain the recovery tank. 2. Motor should have the brushes checked every 250 8. Drain the solution tank of all fluid. hours. Brushed should be replaced when they are worn to a length of 10mm or less. 8.645-040.0 Operator Manual KIRA B100 R... -
Page 20: Technical Specifications
Autonomous Mode: 0 deg/0% - Manual Mode: 1 deg/2% Sound Pressure Level 68 dB(A) Decibel rating at operator's ear, indoors 68 dB(A) Vibration Hands (ISO 5349) 1.07 m/sec² Uncertainty .5 m/sec² Vibration Body (ISO 5349) 0.37 m/sec² Uncertainty .5 m/sec² 8.645-040.0 Operator Manual KIRA B100 R... - Page 21 Children should be supervised to ensure that they do not play with the appliance. WIDTH LENGTH HEIGHT 8.645-040.0 Operator Manual KIRA B100 R...
