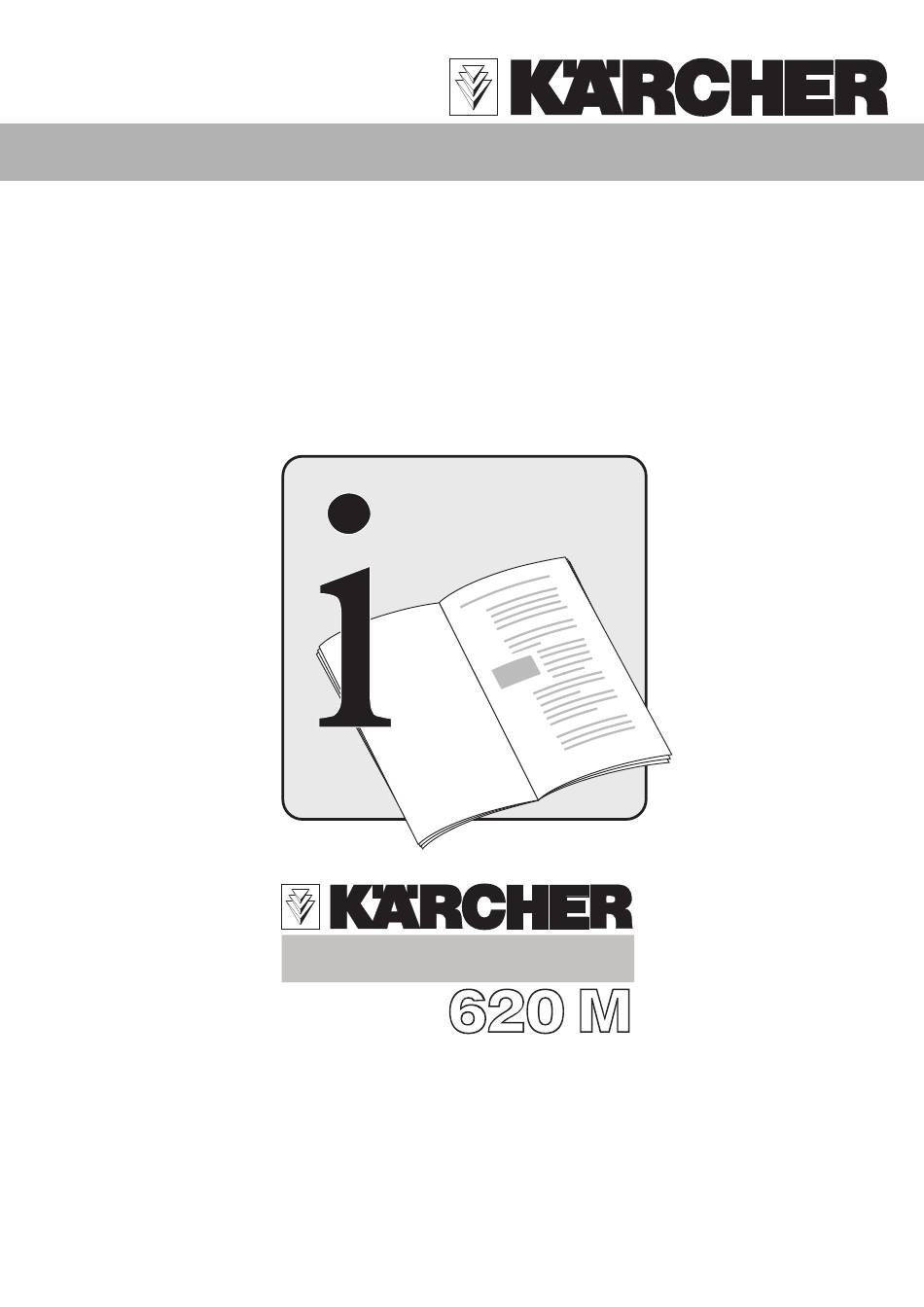

- Page 1 5.956–158 Ä09709 03/96...
- Page 2 W A R N I N G ! When using this product basic precautions should always be followed, including the following: • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when a product is used near children.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS GROUND FAULT CIRCUIT INTERRUPTER EXTENSION CORDS PROTECTION Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord This pressure washer* is provided with a ground connectors that accept the plug from the product. fault circuit interrupter (GFCI) built into the plug of Use only extension cords that are intended for the power supply cord. - Page 5 1. Starting 1 High-pressure hose Water Connection 2 Safety ratchet · See technical data for connected values. 3 Hand-held spray gun · Screw the quick coupler female to your garden 4 Spray wand extension hose (not supplied) and the quick coupler male 5 Spray wand with pressure regulator onto the water connection of the appliance.
-
Page 6: Operation
2. Operation Operation with high-pressure Washing Brush · · Open the water supply. Press the washing brush against the spring force into the bayonet connection of the gun and then · Release the lever of the gun with the safety turn the washing brush by 90°... -
Page 7: Care And Maintenance
3. Care and Maintenance Monthly or as Required Frost Protection · · Clean the filter in the detergent tank. Frost will destroy an appliance which has not been completely emptied of water. Ideally, the · Clean the high-pressure nozzle. appliance shold be stored in a frost-free room. Remove dirt from the nozzle hole with a needle and then rinse out with water from the front. -
Page 8: General Information
5. General Information Purpose Safety Equipment – Use the appliance to clean machines, vehicles, When the hand-held spary gun is closed, the buidings, tools etc. overflow valve switches off the appliance via a pressure-operated switch. The overflow valve is also –... -
Page 9: Technical Data
6. Technical Data Power connection Voltage ................115 V Type of current .............. 1~60 Hz Connected load ..............1.9 hp Mains fuse (slow) ..............13 A Water connection Supply temperature (max.) ..........140 °F Supply rate (min.).............. 2.5 gpm Supply hose –...
