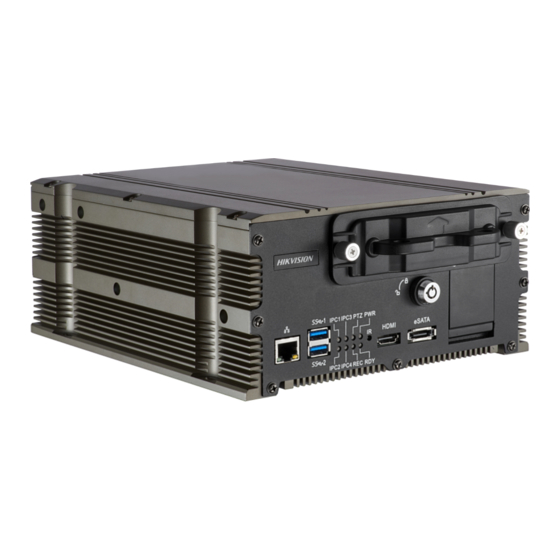

Mobile Enforcement System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-MI9605-GA and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-MI9605-GA

Summary of Contents for HIKVISION DS-MI9605-GA

  • Page 1 Mobile Enforcement System User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Mobile Enforcement System User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
  • Page 4 Mobile Enforcement System User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Mobile Enforcement System User Manual equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 6 Mobile Enforcement System User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 7 Mobile Enforcement System User Manual Safety Instruction Laws and Regulations Use of the product must be in strict compliance with the local laws and regulations. Please shut down the device in prohibited area. Power Supply • Use of the product must be in strict compliance with the local electrical safety regulations. •...
  • Page 8 Mobile Enforcement System User Manual Maintenance • If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center. • If the device is abnormal, contact the store you purchased it or the nearest service center. DO NOT disassemble or modify the device in any way (For the problems caused by unauthorized modification or maintenance, the company shall not take any responsibility).

  • Page 9: Table Of Contents

    Mobile Enforcement System User Manual Contents Chapter 1 Product Introduction ....................1 1.1 Introduction ........................... 1 1.2 Key Feature ..........................1 Chapter 2 Activation ........................2 2.1 Default Information ....................... 2 2.2 Activate via Local Menu ......................2 2.3 Activate via SADP ........................2 2.4 Activate via Web Browser ......................
  • Page 10 Mobile Enforcement System User Manual 3.5.3 Set Preset via Manual Controller ................12 3.5.4 Enable Start Preset ...................... 13 3.5.5 Enable Wiper or Light ....................13 3.5.6 Enable Heater ......................13 Chapter 4 Network ........................15 4.1 Network Connection ......................15 4.1.1 Dial ..........................
  • Page 11 Mobile Enforcement System User Manual 7.4 Set Channel IP Address ......................25 Chapter 8 Security ........................26 8.1 Modify Password ......................... 26 8.2 Enable Password ........................26 8.3 Set SSH ..........................26 8.4 Set Whitelist ......................... 26 Chapter 9 Maintenance ......................28 9.1 Upgrade System ........................
  • Page 12 Mobile Enforcement System User Manual 10.2.4 Start/Stop Two-Way Audio ..................35 10.2.5 Manual Recording ..................... 35 10.2.6 Manual Capture ......................35 10.2.7 Set Live View Volume ....................36 10.2.8 Full-Screen Live View ....................36 10.2.9 PTZ Control Panel ...................... 36 10.3 Mobile Device Features .....................

  • Page 13: Chapter 1 Product Introduction

    Mobile Enforcement System User Manual Chapter 1 Product Introduction 1.1 Introduction Mobile enforcement system (hereinafter referred to as system) mainly consists of mobile enforcement video recorder (hereinafter referred to as recorder), positioning system lite, manual controller, and LCD monitor. The recorder adopts multiple key technology, including local video storage, 3G/4G dialing, wireless network transmission, satellite positioning, remote control, and light supplement, meeting the demand of all-day enforcement.

  • Page 14: Chapter 2 Activation

    Mobile Enforcement System User Manual Chapter 2 Activation For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. The device supports multiple activation methods. Note Refer to the user manual of client software for the activation via client software. 2.1 Default Information Device default IP address and user name are as follows.

  • Page 15: Activate Via Web Browser

    Mobile Enforcement System User Manual 2. Check the device status from the device list, and select the inactive device. Note The SADP software supports activating devices in batch. Refer to the user manual of SADP software for details. 3. Enter Password. Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower...

  • Page 16: Chapter 3 Basic Operation

    Mobile Enforcement System User Manual Chapter 3 Basic Operation You can perform the basic operations once the recorder is connected to an IP camera. 3.1 Manage IP Camera After connecting IP camera(s) or positioning system lite to the device, if no image is displayed on live view interface, follow the instructions below to manage IP camera(s) or positioning system lite.
  • Page 17 Mobile Enforcement System User Manual 3. Select an inactivated IP camera. 4. Activate the selected IP camera. - Select QuickActive. The IP camera password will be set as same as the recorder password. - Select ManuActive. Enter New Password and confirm it. Caution We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower...

  • Page 18: Enforcement

    Mobile Enforcement System User Manual 3.2 Enforcement The recorder can capture pictures and record videos of violation scenes. 3.2.1 Set Parameters Set Enforcement Parameters If you want to record videos or capture pictures of the violation, you need to configure the enforcement parameters.
  • Page 19 Mobile Enforcement System User Manual Enable Traffic Check it and select Traffic Violation Type. Then the recorded videos or Violation Type pictures will be marked with the configured traffic violation type. Or you need to select traffic violation type after recording. Note If traffic violation type is not enabled, pictures cannot be composed.

  • Page 20: Enforcement Recording

    Mobile Enforcement System User Manual Steps 1. Copy the created road name file to the USB device, and insert the USB device to the recorder. 2. Go to Menu → Enforcement → Road Name . Figure 3-2 Overlay Road Name 3.

  • Page 21: Enforcement Capture

    Mobile Enforcement System User Manual 5. Optional: If traffic violation type is not selected, select the traffic violation type according to the prompt. Note Go to Menu → Enforcement → Man. Enforcement to set the traffic violation type. Enforcement Recording via Touchscreen Start/stop traffic violation recording via the touchscreen.

  • Page 22: Manual Recording

    Mobile Enforcement System User Manual 3.3 Manual Recording 3.3.1 Recording via Manual Controller Start/stop recording via manual controller. Before You Start Install a storage media and format it. Steps Note When manual recording is on, all-day recording ends. When manual recording is off, all-day recording will resume.

  • Page 23: Capture Via Manual Controller

    Mobile Enforcement System User Manual Steps 1. Go to Menu → Enforcement → Capture . 2. Select Channel. 3. Check Enable Capture. 4. Select Picture Quality. The higher the picture quality is, the more space a picture occupies. 5. Select channel(s) from Copy to drop-down list and select Copy to copy above settings to selected channel(s).

  • Page 24: Ptz Operation

    Mobile Enforcement System User Manual 3.5 PTZ Operation Configure PTZ parameters and control PTZ. 3.5.1 PTZ Operation via Manual Controller Control the connected positioning system lite via manual controller. • Rotate the joystick clockwise to zoom in. • Rotate the joystick anticlockwise to zoom out. •...

  • Page 25: Enable Start Preset

    Mobile Enforcement System User Manual 5. Optional: Press a numeric button and the positioning system will move to the corresponding predefined position. 3.5.4 Enable Start Preset You can enable start preset if you want the positioning system to place in a certain preset. Before You Start Connect positioning system to the recorder, and set the parameters.
  • Page 26 Mobile Enforcement System User Manual Result The heater will work for 8 hours.

  • Page 27: Chapter 4 Network

    Mobile Enforcement System User Manual Chapter 4 Network 4.1 Network Connection 4.1.1 Dial Set dial parameters. Before You Start Install a 3G/4G card and connect 3G/4G antenna to your recorder. Steps 1. Go to Menu → Network → Dial . Figure 4-1 Dial 2.

  • Page 28: Set Wi-Fi

    Mobile Enforcement System User Manual Dial to 4G network. 4. Select >>> of More Settings. 5. Edit dial parameters. - When connecting the recorder to a private network, enter Dial Number, User name, Password, APN, and other information. - When connecting the recorder to a normal network, you do not need to edit the dial parameters.

  • Page 29: Connect To Ehome Platform

    Mobile Enforcement System User Manual Debug Interface Used to debug recorder. Rear Interface Used to connect to IP camera. Note Some models do not support NIC Type. The actual recorder prevails. 3. Enter IP Address, Subnet Mask, and Default Gateway. 4.

  • Page 30: Configure Wi-Fi Ap

    Mobile Enforcement System User Manual Note The device ID should be consistent with the registered ID on the EHome platform. 5. Optional: Check Net Self-Adaptive, Capture Upload, and Evidence Upload. Net Self-Adaptive To automatically optimize network transmission parameters according to network status. Capture Upload To automatically upload captured pictures to platform.

  • Page 31: Chapter 5 Playback And Backup

    Mobile Enforcement System User Manual Chapter 5 Playback and Backup 5.1 Play Video and Picture You can play the videos and pictures. Steps 1. On live view interface, select Playback. 2. Select Channel, Start Time, and End Time. 3. Select File Type. 4.
  • Page 32 Mobile Enforcement System User Manual What to do next Connect the USB device to the computer, and play the files.

  • Page 33: Chapter 6 Alarm Settings

    Mobile Enforcement System User Manual Chapter 6 Alarm Settings 6.1 Set Alarm Input Set the parameters for alarm input, including trigger level, arming schedule, alarm linkage actions, etc. Before You Start Connect an alarm device to your recorder. Steps 1. Go to Menu → Others → Alarm . 2.

  • Page 34: Set Alarm Output

    Mobile Enforcement System User Manual 6.2 Set Alarm Output Configure the arming schedule, alarm duration time and alarm name for alarm output. Before You Start Connect an alarm output device to your recorder. Steps 1. Go to Menu → Others → Alarm . 2.

  • Page 35: Set Linkage Actions

    Mobile Enforcement System User Manual Steps 1. Go to Menu → Others → Sensor-In . 2. Check Enable. Note If sensor-in is disabled, you can configure it via alarm input. For example, for the recorder with 4-ch alarm inputs, according to the sequence of the parameters on the interface, braking corresponds to No.

  • Page 36: Chapter 7 Camera Management

    Mobile Enforcement System User Manual Chapter 7 Camera Management 7.1 Set Recording Parameters You can set recording parameters, which directly influence the video quality. Steps 1. Go to Menu → Record . 2. Select Camera. 3. Optional: Check All Day Record. 4.

  • Page 37: Set Osd Parameters

    Mobile Enforcement System User Manual Steps 1. Go to Menu → Others → OSD . 2. Select More Settings. 3. Check LightInhibit. Note • If the function is enabled, the brightness of the strong spots can be reduced to improve the overall images.

  • Page 38: Chapter 8 Security

    Mobile Enforcement System User Manual Chapter 8 Security 8.1 Modify Password To protect data security, you are recommended to change your password regularly. Steps Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 39 Mobile Enforcement System User Manual Steps 1. Go to Menu → System → Security . 2. Check Enable White List. 3. Select Add. 4. Enter the IP address of the device that is allowed to access the recorder. 5. Select OK. Result Only the whitelist IP address can access the recorder.

  • Page 40: Chapter 9 Maintenance

    Mobile Enforcement System User Manual Chapter 9 Maintenance 9.1 Upgrade System You can upgrade the system by the local USB storage device or by the remote FTP server. Before You Start • Prepare the upgrade file. • Set PC running FTP server and the recorder to the same LAN. Run the 3rd-party TFTP software on the PC and copy the firmware into the root directory of TFTP.

  • Page 41: Import Configuration File

    Mobile Enforcement System User Manual 9.3 Import Configuration File The configuration file of one recorder can be imported to multiple recorders if they are to be configured with the same parameters. Before You Start • Connect a USB device containing configuration file to the recorder. •...

  • Page 42: Shutdown

    Mobile Enforcement System User Manual Default Restore all parameters to the factory default settings. 9.6 Shutdown 9.6.1 Shutdown Delay If you need the recorder to run for a while after the vehicle powers off, you can set shutdown delay. Steps 1.

  • Page 43: Set Time

    Mobile Enforcement System User Manual 3. Select Auto Work Type as Auto Working. 4. Select Date on which the recorder will start up/shut down automatically. 5. Specify Duration for the recorder to start up and shut down. Note Two periods of duration can be configured for each day and cannot overlap with each other. 6.

  • Page 44: Connect To Smart Terminal

    Mobile Enforcement System User Manual 5. Select OK. 9.9 Connect to Smart Terminal For the recorder supporting network camera, when the recorder and a smart terminal connect to the same network camera, and the smart terminal is added to the recorder, the recorder will receive driving behavior analysis from the smart terminal.

  • Page 45: Set Screensaver

    Mobile Enforcement System User Manual 5. Optional: Select Default Gesture to set the gesture as the default settings. 6. Select OK. 9.11 Set Screensaver Set the screensaver parameters. Steps 1. Go to Menu → Others → Display . 2. Select Set of Advanced Settings. 3.

  • Page 46: Chapter 10 Web Operation

    Mobile Enforcement System User Manual Chapter 10 Web Operation 10.1 Access Device via Web Browser Get access to the recorder via web browser. Steps 1. Open the web browser, enter the IP address of the recorder, and then press Enter. 2.

  • Page 47: Select Live View Stream

    Mobile Enforcement System User Manual 10.2.3 Select Live View Stream The device supports main stream and sub-stream. Main stream is used for continuous recording and sub-stream is used for network transmission. Click to select live view stream. 10.2.4 Start/Stop Two-Way Audio You can have real-time two-way audio between your computer and the recorder.

  • Page 48: Set Live View Volume

    Mobile Enforcement System User Manual - Enter the path popped up in the lower right corner. - Go to Configuration → Local → Picture and Clip Settings for the saving path of captured pictures. 10.2.7 Set Live View Volume Turn on audio and adjust audio volume. Click to turn on audio.
  • Page 49 Mobile Enforcement System User Manual Before You Start Connect a G-sensor to the device. Steps 1. Go to Configuration → Vehicle → G-Sensor . Figure 10-1 Configure G-Sensor 2. Select module according to actual situation. External The G-sensor is connected to the device via RS-232/RS-485 interface. Built-in The G-sensor is a built-in module of the device.

  • Page 50: Configure Sensor-In

    Mobile Enforcement System User Manual 10.3.2 Configure Sensor-In Sensor-in detects and records the driving information of the vehicle, including pedal braking, turning left/right, reversing, etc. Before You Start Connect the sensor-in interface to vehicle corresponding interface. For details, refer to Quick Start Guide.
  • Page 51 Mobile Enforcement System User Manual Figure 10-2 Configure Satellite Positioning 3. Select Position Module. Built-in Obtain data from the satellite positioning module built in the device. Intelligent Display Terminal Obtain data from display terminal. 4. Select Locating Module. Note • The combination mode means the positioning module will be selected automatically. For example, if GPS/BDS is selected, GPS or BDS will be selected automatically.

  • Page 52: Storage Management

    Mobile Enforcement System User Manual The positioning information will be uploaded according to the set interval. 8. Check the channel(s) you want the positioning information to be displayed. The positioning information will be displayed in the live view and playback of the selected channel(s).

  • Page 53: Configure Security Question

    Mobile Enforcement System User Manual 3. Check Redundant Channel. 4. Click Save. Result The device will save the videos of the selected channels in both storage media and mobile fireproof storage box. 10.5 Configure Security Question If you forgot admin password, you can reset password by answering security questions. Follow the steps to set security questions.

  • Page 54: Configure Overwritten Recording

    Mobile Enforcement System User Manual 2. Enter Image Partition. 3. Click Save. 10.6.3 Configure Overwritten Recording You can enable overwritten recording if you want to overwrite the former record files when the storage media is full. Or disable overwritten record if you want to stop recording when the storage media is full.
  • Page 55 Mobile Enforcement System User Manual Detect Bad Sector You can detect the bad sector of HDD to check the status. Steps 1. Go to Configuration → Storage → Storage Management → HDD Detection . 2. Click Bad Sector Detection. 3. Select HDD No. 4.
  • Page 56 UD17038B...
