  • Page 1 Network Video Recorder Quick Operation Guide UD.6L0202B1057A01...

  • Page 2: Nvr Pre-Installation

    Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the models listed in the following table. Series Model Type 7600NI-SE DS-7604NI-SE Network Video Recorder DS-7608NI-SE DS-7616NI-SE 7600NI-SE/N DS-7604NI-SE/N Network Video Recorder DS-7608NI-SE/N...
  • Page 3 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Connect one end of the data cable to the motherboard of NVR and the other end to the HDD. Connect the power cable to the HDD. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.
  • Page 4 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Re-install the cover of the NVR and fasten screws. Steps (for DS-7600NI-V and DS-7600NI-VP): Fasten the hard disk mounting handle to the hard disk with screws. Insert the key and turn in clockwise direction to open the panel lock. Open the front panel.
  • Page 5 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all hard disks, close the front panel and lock it with the key again.

  • Page 6: Front Panel

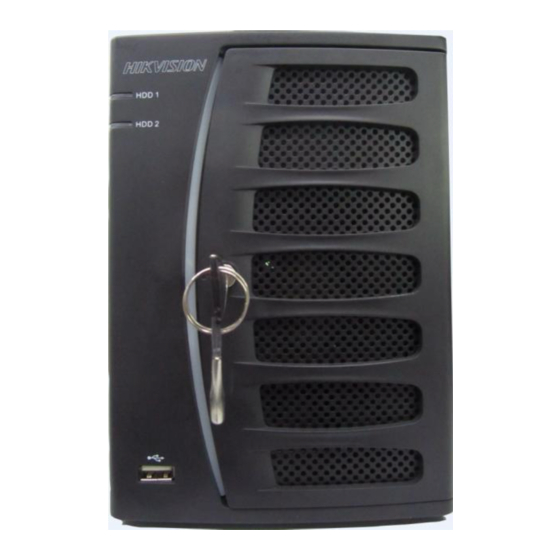

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Front Panel DS-7600NI-SE, DS-7600NI-SE/N, and DS-7600NI-SE/P ① Status Indicator(Power, Status, Tx/Rx) ② USB Interface DS-7600NI-V and DS-7600NI-VP ① HDD Status Indicators ② Panel Lock ③ Running Status Indicator ④ USB Interface...

  • Page 7: Rear Panel

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Rear Panel DS-7604NI-SE/N DS-7604&7608&7616NI-SE DS-7608&7616NI-SE/N Item Description Connector for LAN (Local Area Network). LAN Network Interface Connects to RS-485 devices. RS-485 Interface 12VDC power supply Power Supply Switch for turning on/off the device. Power Switch Universal Serial Bus (USB) ports for additional devices such as USB USB Interface...
  • Page 8 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Connects to RS-485 devices. RS-485 Interface 100~240VAC power supply Power Supply Switch for turning on/off the device. Power Switch Universal Serial Bus (USB) ports for additional devices such as USB USB Interface mouse and USB Hard Disk Drive (HDD). Ground (needs to be connected when NVR starts up).

  • Page 9: Specifications

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Specifications Specifications of DS-7600NI-SE Model DS-7604NI-SE DS-7608NI-SE DS-7616NI-SE IP video input 4-ch 8-ch 16-ch Video/Audio input Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ) input Incoming 20Mbps 40Mbps 80Mbps bandwidth Bandwidth Output 40Mbps bandwidth Decoding 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ resolution...
  • Page 10 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Specifications of DS-7600NI-SE/N Model DS-7604NI-SE/N DS-7608NI-SE/N DS-7616NI-SE/N IP video input 4-ch 8-ch 16-ch Video/Audio input Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ) input Incoming 20Mbps 40Mbps 80Mbps bandwidth Bandwidth Output 40Mbps bandwidth Recording 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF resolution 1-ch, resolution:...
  • Page 11 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Specifications of DS-7600NI-SE/P Model DS-7604NI-SE/P DS-7608NI-SE/P DS-7616NI-SE/P IP video input 4-ch 8-ch 16-ch Video/Audio input Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ) input Incoming 20Mbps 40Mbps 80Mbps bandwidth Bandwidth Output 40Mbps bandwidth Decoding 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF resolution 1-ch, resolution:...
  • Page 12 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Specifications of DS-7600NI-V Model DS-7604NI-V DS-7608NI-V DS-7616NI-V IP video input 4-ch 8-ch 16-ch Video/Audio input Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ) input Incoming 20Mbps 40Mbps 80Mbps bandwidth Bandwidth Output 40Mbps bandwidth Decoding 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF resolution 1-ch, resolution:...
  • Page 13 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Specifications of DS-7600NI-VP Model DS-7604NI-VP DS-7608NI-VP DS-7616NI-VP IP video input 4-ch 8-ch 16-ch Video/Audio input Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ) input Incoming Bandwidth 20Mbps 40Mbps 80Mbps bandwidth Decoding 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF resolution 1-ch, resolution: HDMI/VGA 1920 ×...

  • Page 14: Hdd Storage Calculation Chart

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K...

  • Page 15: Menu Operation

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Menu Operation Menu Structure Startup and Shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device.

  • Page 16: Using The Start Wizard

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Using the Start Wizard By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure below. Start Wizard Interface Operating the Setup Wizard: 1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the Setup Wizard at that moment, click the Cancel button.

  • Page 17: Network Configuration

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Date and Time Settings 6. After the time settings, click Next button which takes you back to the Network Setup Wizard window. DS-7600NI-SE and DS-7600NI-V DS-7600NI-SE/N, DS-7600NI-SE/P and DS-7600NI-VP Network Configuration...
  • Page 18 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Note: For DS-7600NI-SE/N, DS-7600NI-SE/P and DS-7600NI-VP series NVR, the internal NIC IPv4 address should be configured for the cameras connecting to the PoE network interface or the built-in switch of the NVR. 7. Click Next button after you configured the network parameters, which takes you to the HDD Management window.

  • Page 19: Live View

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Record Settings 12. Click Copy to copy the settings to other channels. Copy Record Settings 13. Click OK to complete the startup Setup Wizard. Live View Some icons are provided on screen in Live View mode to indicate different camera status. These icons include: Live View Icons In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the record and alarm in the channel, so that you can find problems as soon as possible.

  • Page 20: Adding And Configuring Ip Cameras

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Adding and Configuring IP Cameras You should add and configure the online IP cameras to enable the live view and recording function. Adding IP Cameras You can search and add the online IP cameras by following the startup wizard, or according to the following steps. Steps: Enter the Camera Management interface.

  • Page 21: Configuring Basic Parameters Of Ip Cameras

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR camera is applied to the added camera. Configuring Basic Parameters of IP Cameras After the adding of the IP cameras, the basic information of the camera lists in the page, and you can configure the basic setting of the IP cameras.

  • Page 22: Ptz Control

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR PTZ Control Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you set the PTZ camera. Before you start, please check that the PTZ and the NVR are connected properly through RS-485 interface. PTZ Settings Steps: Enter the PTZ Settings interface.

  • Page 23: Instant Playback By Channel

    Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Description of the PTZ toolbar icons Icon Description Icon Description Icon Description Direction button and Zoom+, Focus+, Zoom-, Focus-, Iris- the auto-cycle button Iris+ The speed of the Light on/off Wiper on/off PTZ movement Image 3D-Zoom Preset...
  • Page 24 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Right-click Menu under Live View Under multi-screen live view, record files of the top left channel (not masked) will be played back. Playback management. The toolbar in the bottom part of Playback interface can be used to control playing process. All-day Playback Interface The channel and time selection menu will display by moving the mouse to the right of the playback interface.
  • Page 25 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR All-day Playback Interface with Channel List Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. Steps: Enter Video Export interface. Choose the channel(s) you want to back up and click on the Search button. Quick Export Interface Enter Export interface, choose backup device and press Export button to start exporting.
  • Page 26 Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR Check backup result. Choose the record file in Export interface and press button to check it. Checkup of Quick Export Result Using USB1-1 0202051030520...
