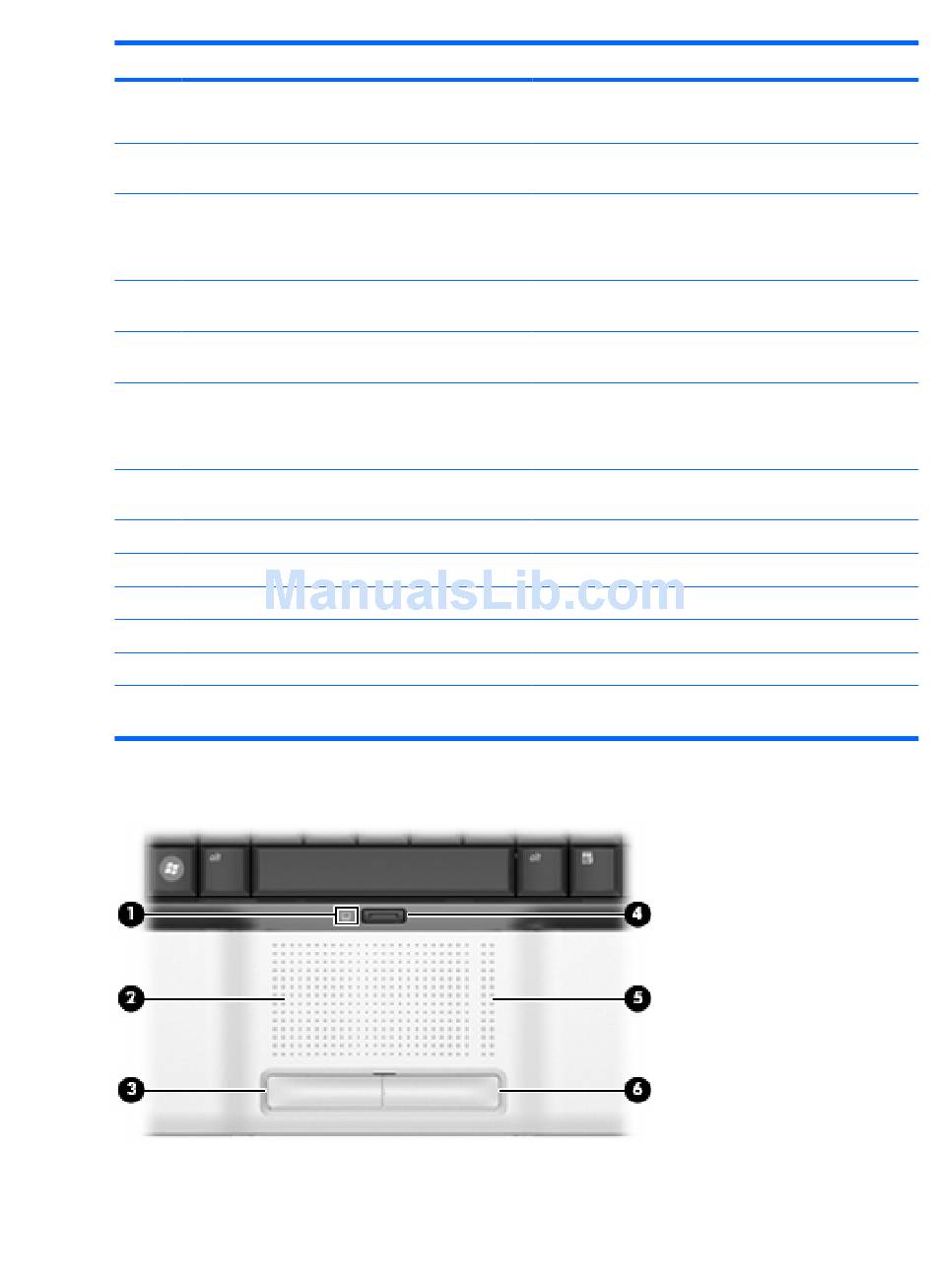

Touchpad - HP Pavilion HDX Maintenance And Service Manual

Item Component
(5) Volume mute light
(6) Volume down light
(7) Volume scroll zone
(8)
Volume up light
(9) Treble or bass volume down light (select models only)
(10) Treble or bass volume scroll zone (select models only)
(11) Treble or bass volume up light (select models only)
(12)
Optical drive button
(13) Optical drive light
(14) Treble light (select models only)
(15) Bass light (select models only)
(16) Treble/bass button (select models only)
(17) Num lock light

TouchPad

Function
Blue: Computer sound is turned on.
●
Amber: Computer sound is turned off.
●
Blinking: The volume scroll zone is being used to decrease
speaker volume.
Adjusts speaker volume. Slide your finger to the left to
decrease volume and to the right to increase volume. You can
also tap the minus sign on the scroll zone to decrease volume,
or tap the plus sign on the scroll zone to increase volume.
Blinking: The volume scroll zone is being used to increase
speaker volume.
Blinking: The volume scroll zone is being used to decrease
treble or bass volume.
Adjusts treble or bass volume. Slide your finger to the left to
decrease volume and to the right to increase volume. You can
also tap the minus sign on the scroll zone to decrease volume,
or tap the plus sign on the scroll zone to increase volume.
Blinking: The volume scroll zone is being used to increase
treble or bass volume.
Releases the media tray.
Blinking: The optical drive is being accessed.
On: The treble volume function is on.
On: The bass volume function is on.
Alternates between treble and bass volume controls.
On: Num lock is on or the embedded numeric keypad is
enabled.
Top components 9
