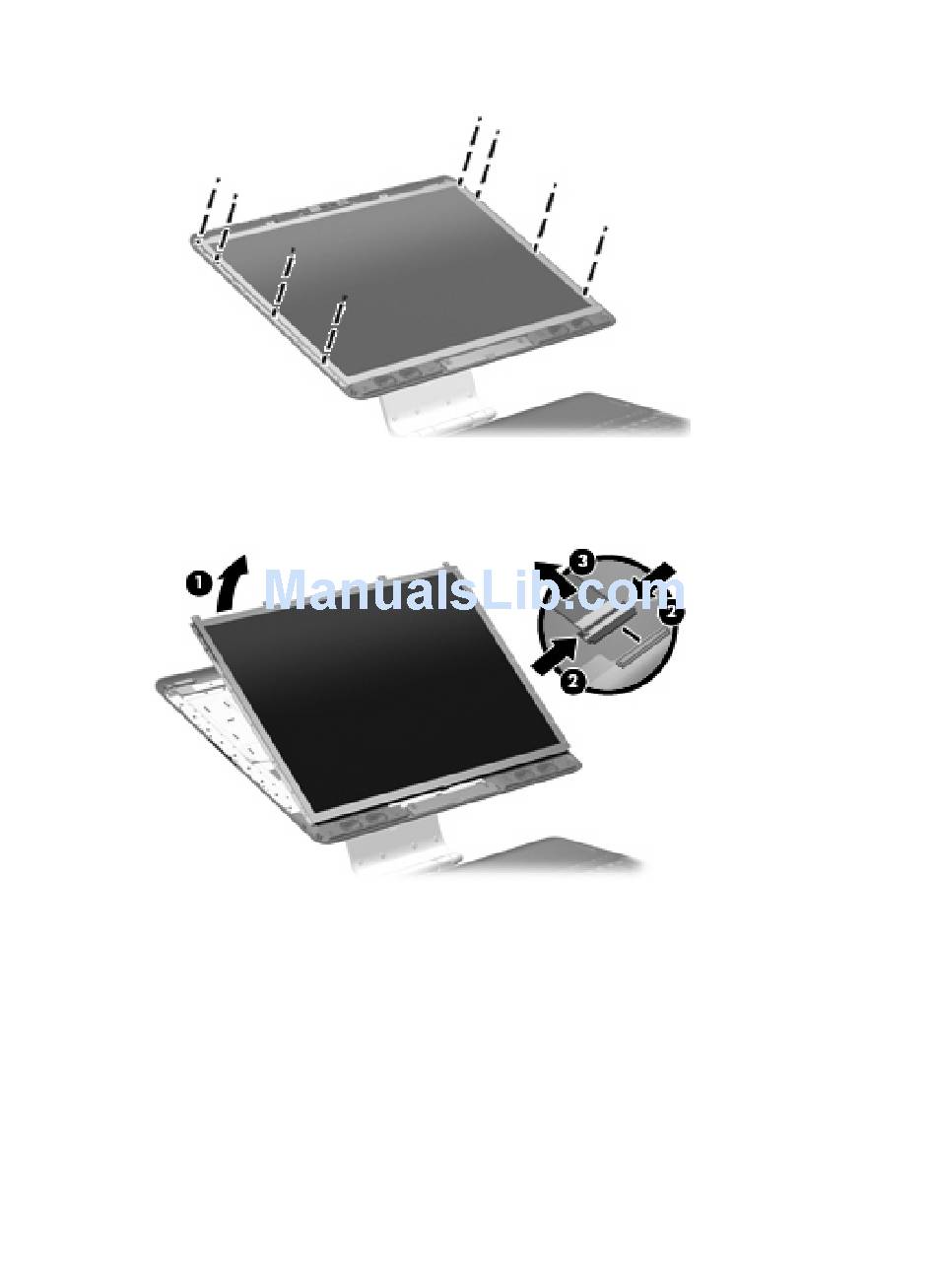

If it is necessary to replace the display panel, remove the eight Phillips PM2.5×5.0 screws that secure
17.
the display panel to the display enclosure.
Tilt the top edge of the display panel (1) forward until the display panel cable connector is accessible.
18.
Squeeze the tabs on the display panel cable connector (2) together and disconnect the cable (3)
19.
from the display panel.
Remove the display panel. The display panel is available using spare part numbers 452301-001
20.
(20.1-inch, WSXGA+BrightView) and 452302-001 (20.1-inch, WUXGA).
If it is necessary to replace the speakers, disconnect the speaker cable connectors (1) from the
21.
speaker extension cable connectors.
Remove the two Phillips PM2.5×5.0 screws (2) that secure each speaker to the display enclosure.
22.
Component replacement procedures
