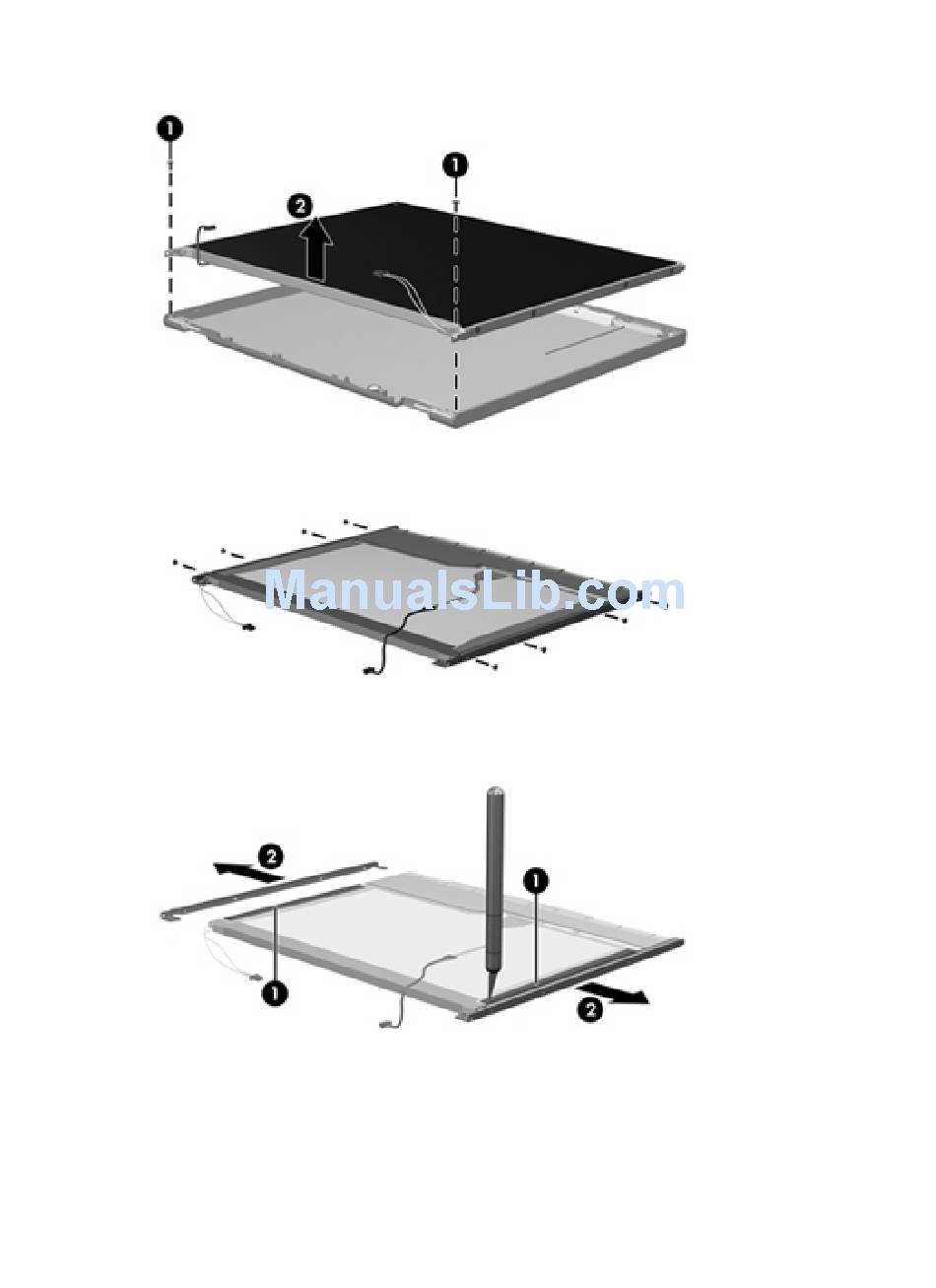

Remove all screws (1) that secure the display panel assembly to the display enclosure.
5.
Remove the display panel assembly (2) from the display enclosure.
6.
Turn the display panel assembly upside down.
7.
Remove all screws that secure the display panel frame to the display panel.
8.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display
9.
panel frame.
Remove the display panel frame (2) from the display panel.
10.
Remove the screws (1) that secure the backlight cover to the display panel.
11.
Display 127
