Rear Right-Side Components - HP Pavilion HDX Maintenance And Service Manual

Notebook pc
Hide thumbs

Advertisement

Item
Component
(1)
Vent
(2)
Infrared (IR) emitter jack
(3)
TV audio line-in jack
(4)
S-Video-in jack
(5)
RF coaxial cable jack

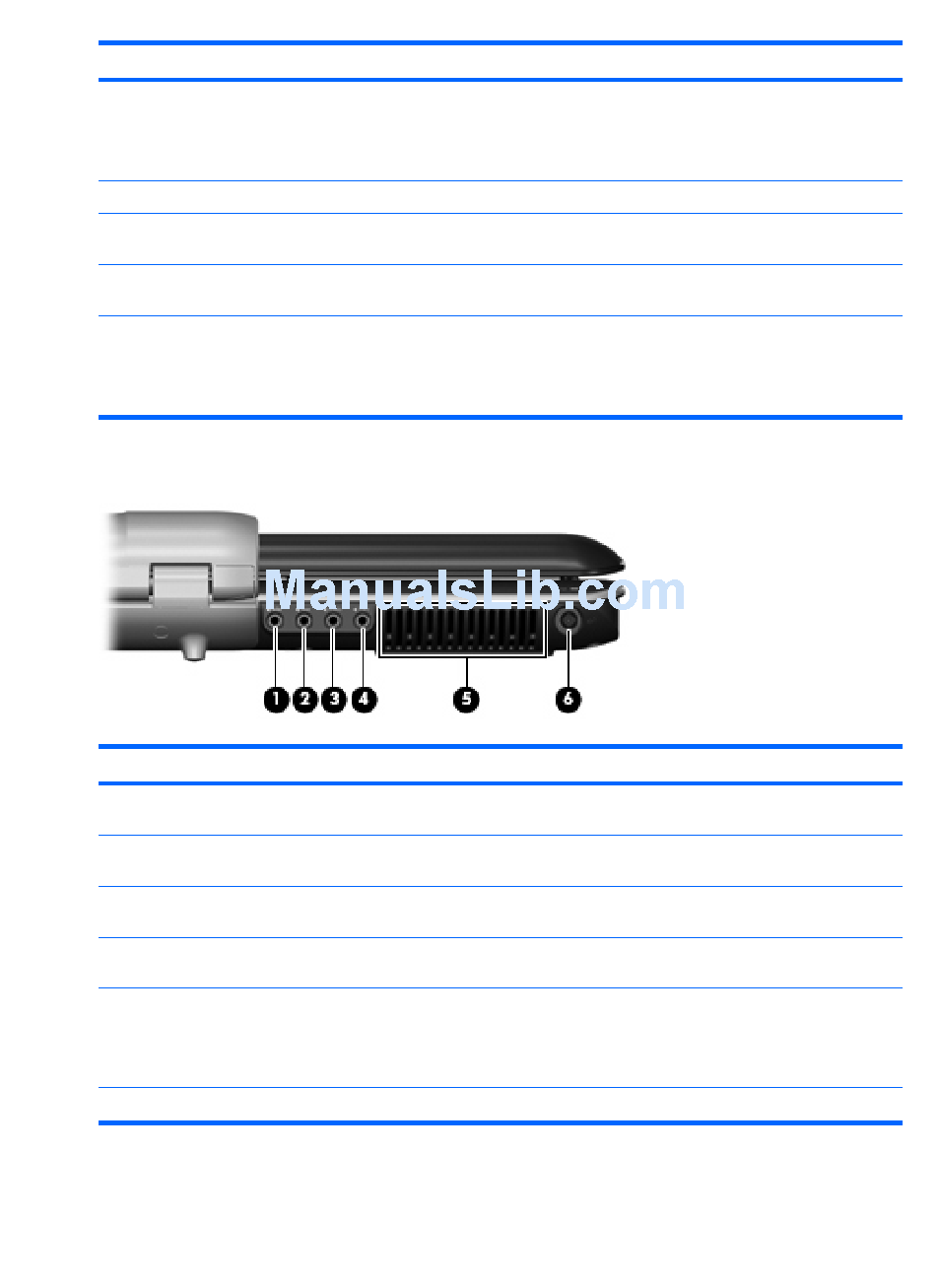

Rear right-side components

Item
Component
(1)
Left- and right-side analog channel output jack
(2)
Rear left- and right-side analog channel output jack
(3)
Center channel and subwoofer analog channel output
jack
(4)
Front left- and right-side analog channel output jack
(5)
Vent
(6)
Power connector
12
Chapter 2 External component identification
Description
Enables airflow to cool internal components.
NOTE:
The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
Connects the computer to your cable or satellite set-top box.
Connects a cable or satellite set-top box to the TV tuner for
high-quality audio.
Connects a cable or satellite set-top box to the TV tuner for
high-quality video.
Connects a coaxial cable or TV antenna.
NOTE:
The computer is shipped with an RF coaxial cable
adapter. Depending on your computer model, the adapter
may be required for proper setup.
Description
Connects optional audio speakers for left- and right-side
audio output.
Connects optional audio speakers for rear left- and right-side
audio output.
Connects an optional audio speaker for center channel and
subwoofer audio output.
Connects optional audio speakers for front left- and right-side
audio output.
Enables airflow to cool internal components.
NOTE:
The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
Connects an AC adapter.
