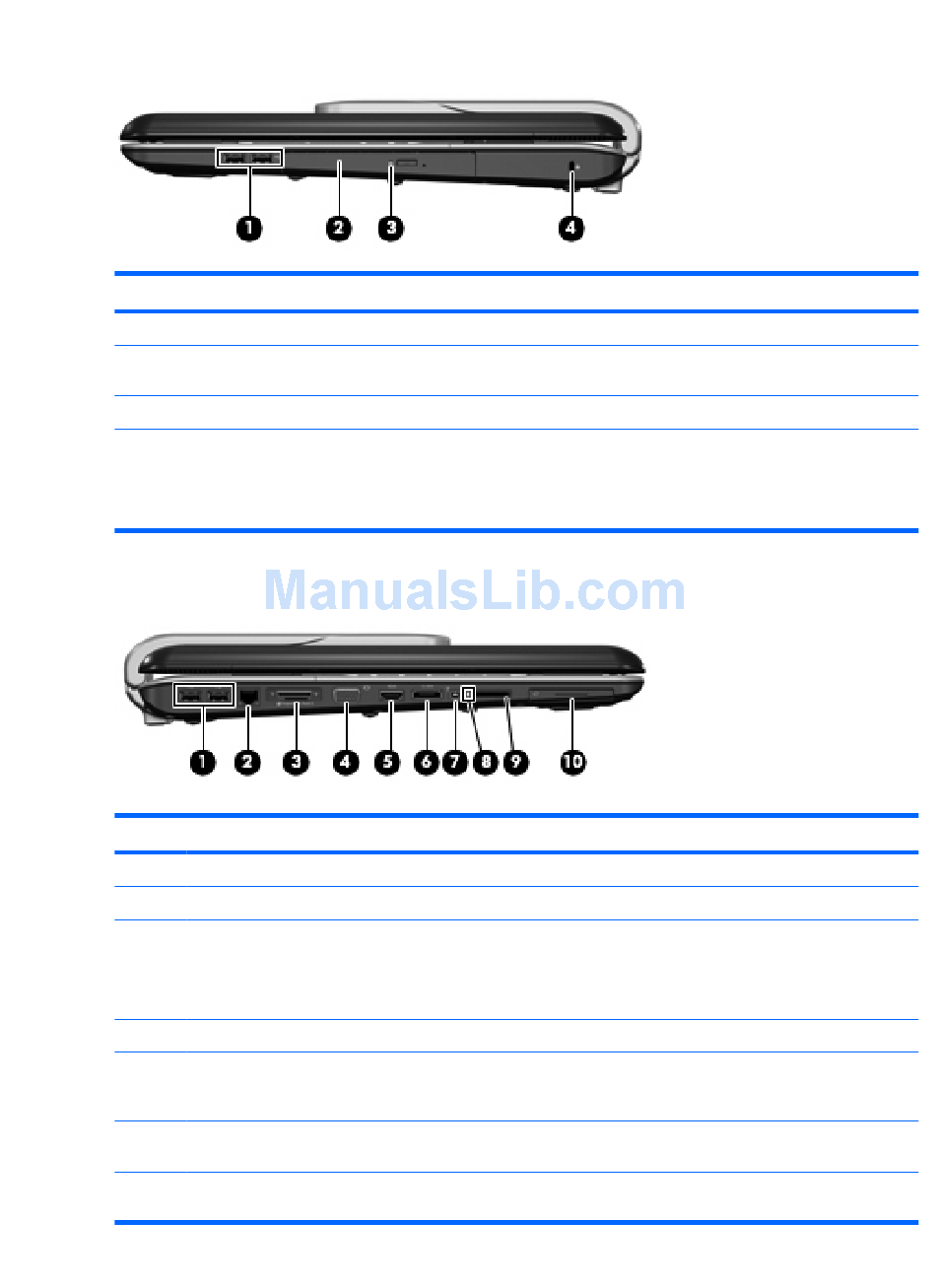

Right-side components

Item
Component
(1)
USB ports (2)
(2)
Optical drive
(3)
Optical drive light
(4)
Security cable slot

Left-side components

Item
Component
(1)
USB ports (2)
(2)
RJ-45 (network) jack
(3)
Expansion port 3
(4)
External monitor port
(5)
HDMI port (select models only)
(6)
eSATA port
(7)
1394 port
Function
Connect optional USB devices.
Reads optical discs, and, on select models, also writes to
optical discs.
Blinking: The optical drive is being accessed.
Attaches an optional security cable to the computer.
NOTE:
The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
Function
Connect optional USB devices.
Connects a network cable.
Connects the computer to an optional docking device or
expansion product.
NOTE:
The computer has only one expansion port. The
term expansion port 3 describes the type of expansion port.
Connects an external VGA monitor or projector.
Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio
device.
Connects high-performance eSATA components, such as an
eSATA external hard drive.
Connects an optional IEEE 1394 or 1394a device, such as
a camcorder.
Right-side components
