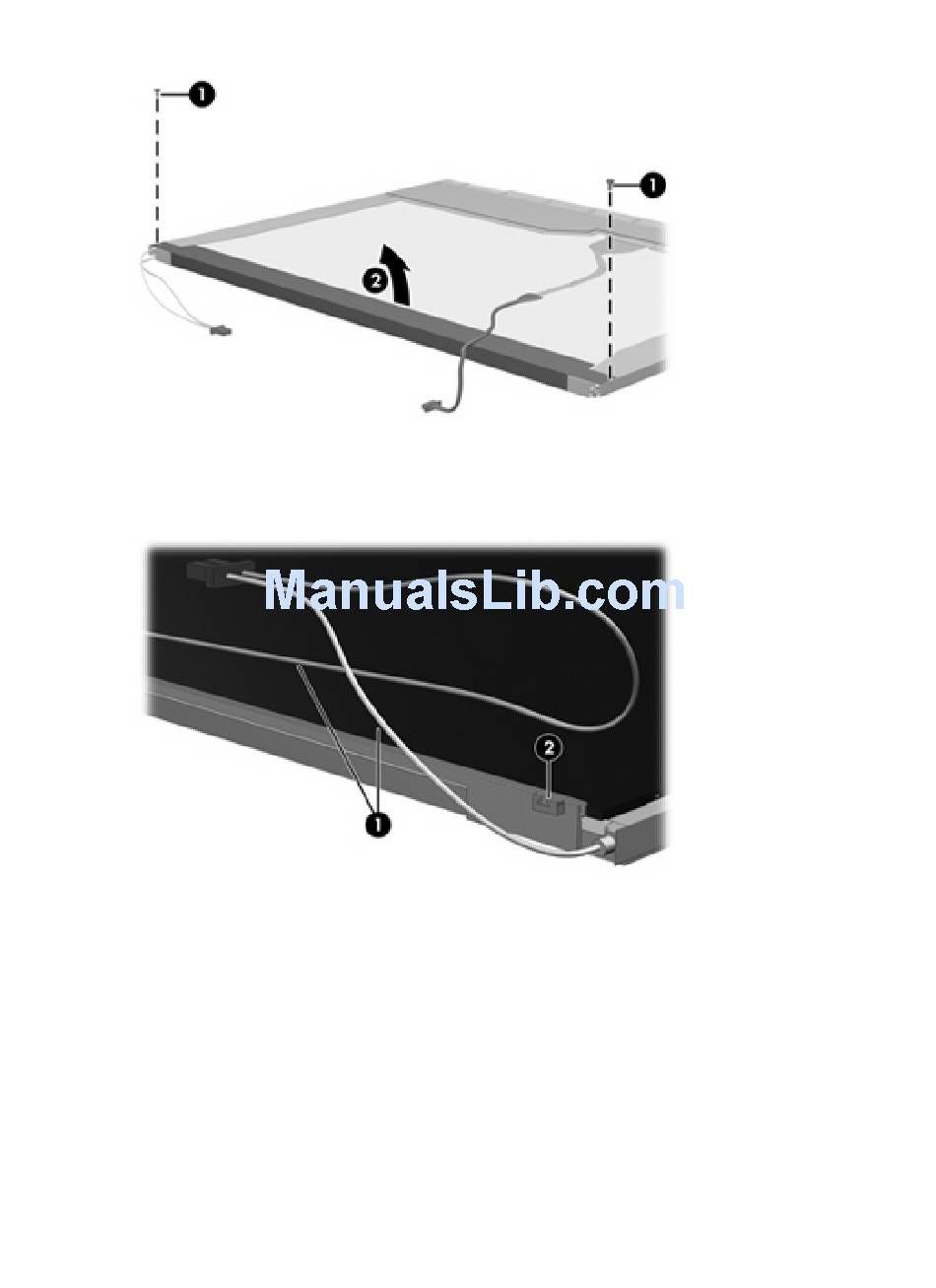

Lift the top edge of the backlight cover (2) and swing it outward.
12.
Remove the backlight cover.
13.
Turn the display panel right-side up.
14.
Remove the backlight cables (1) from the clip (2) in the display panel.
15.
Turn the display panel upside down.
16.
128 Chapter 11 Recycling
