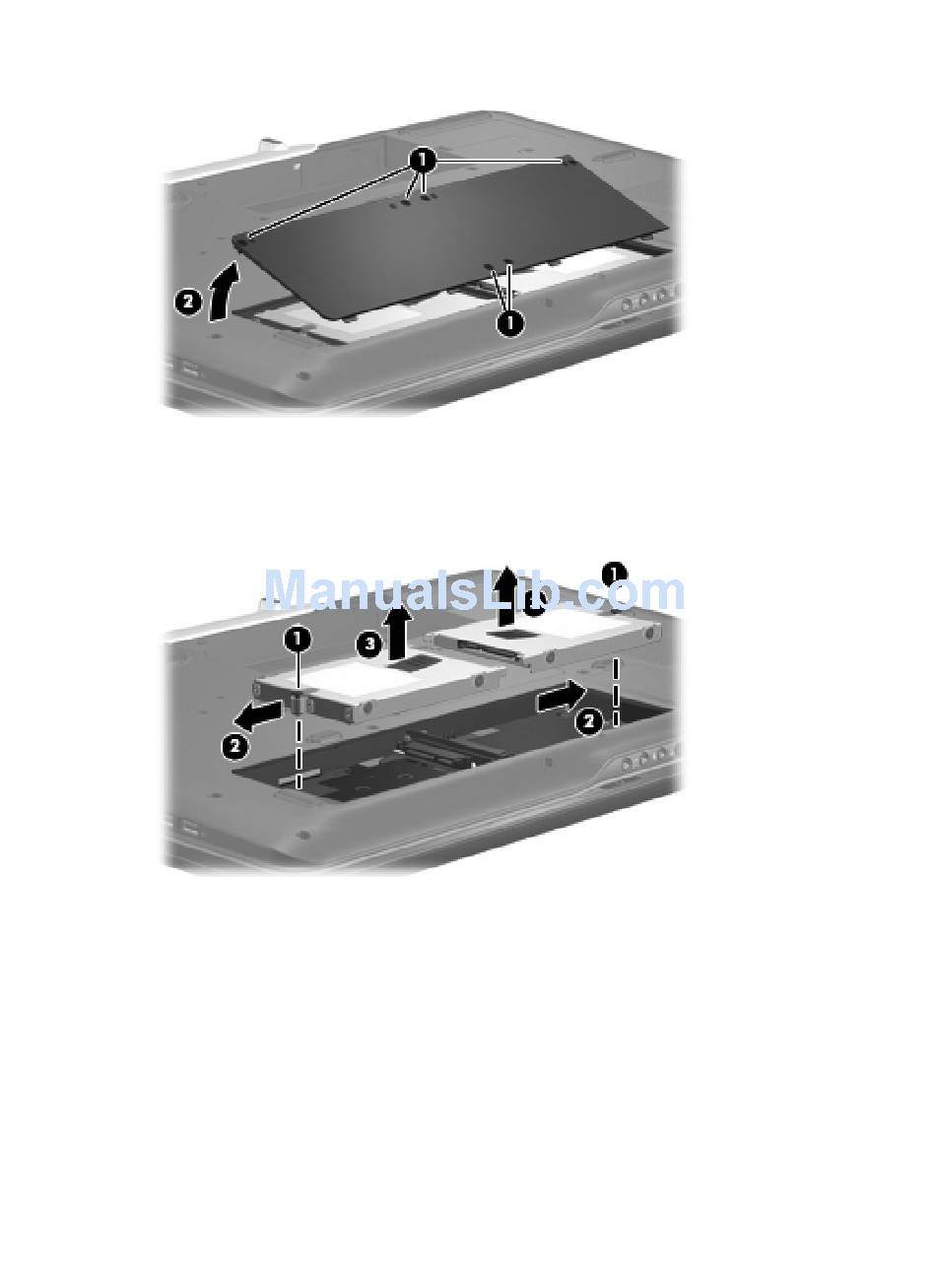

Lift the rear edge of the hard drive bay cover (2), swing it forward, and remove the cover. The hard
2.
drive bay cover is included in the Plastics Kit, spare part number 448171-001.
Loosen the Phillips PM2.5×12.0 screw (1) that secures each hard drive to the computer.
3.
Disconnect the hard drives (2) from the system board by sliding the hard drives away from the hard
4.
drive connectors.
Remove the hard drives (3) from the hard drive compartments.
5.
If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×4.0 screws (1)
6.
that secure the hard drive bracket to the hard drive.
Component replacement procedures
43
