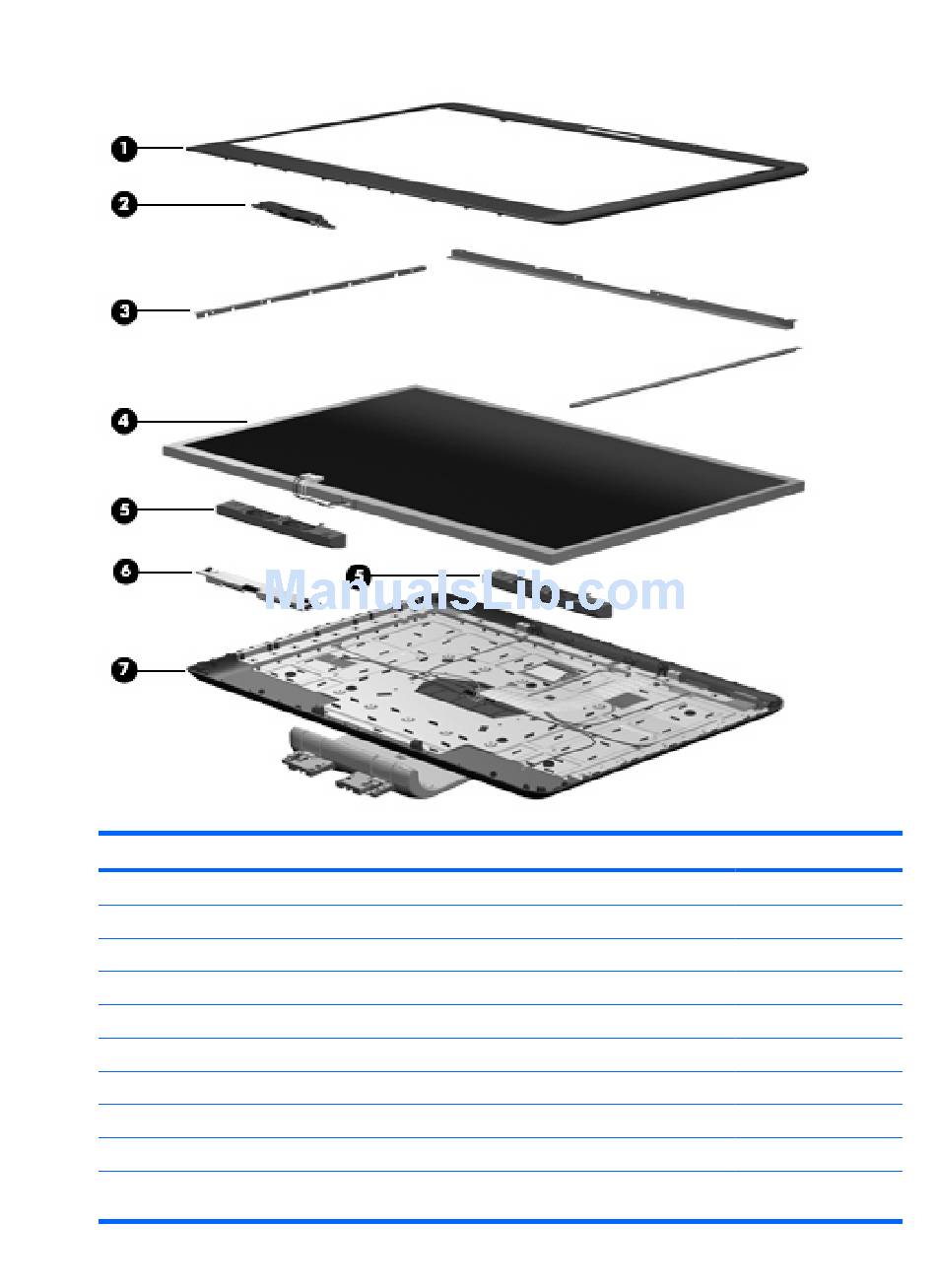

Display assembly components
Item
Description
(1)
Display bezel
(2)
Camera module (includes camera module brackets)
Camera holder (not illustrated)
(3)
Display Bracket Kit (includes left, top, and right brackets)
(4)
Display panels
20.1-inch, WSXGA+, TFT, BrightView
20.1-inch, WUXGA, TFT
(5)
Speaker Kit (includes left and right speakers)
(6)
Display inverter
(7)
Display hinge/enclosure (includes display panel cable and wireless antenna
cables)
22
Chapter 3 Illustrated parts catalog
Spare part number
452307-001
452304-001
452305-001
452303-001
452301-001
452302-001
452310-001
452308-001
452306-001
