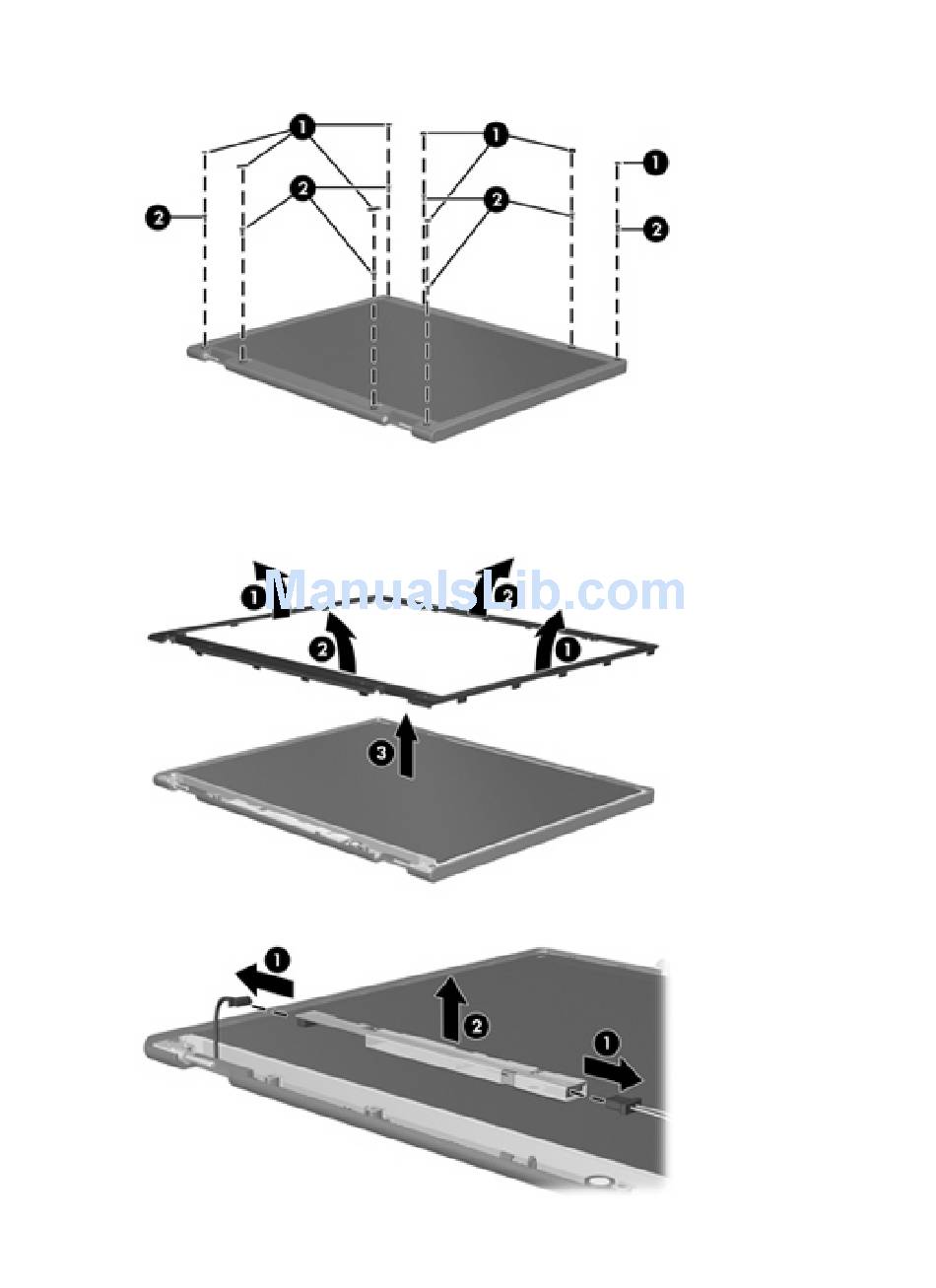

Perform the following steps to disassemble the display assembly:
Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
1.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
2.
display bezel until the bezel disengages from the display assembly.
Remove the display bezel (3).
3.
Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
4.
126 Chapter 11 Recycling
