Advertisement
Item
Component
(8)
Digital Media Slot light
(9)
Digital Media Slot (select models only)
(10)
ExpressCard slot

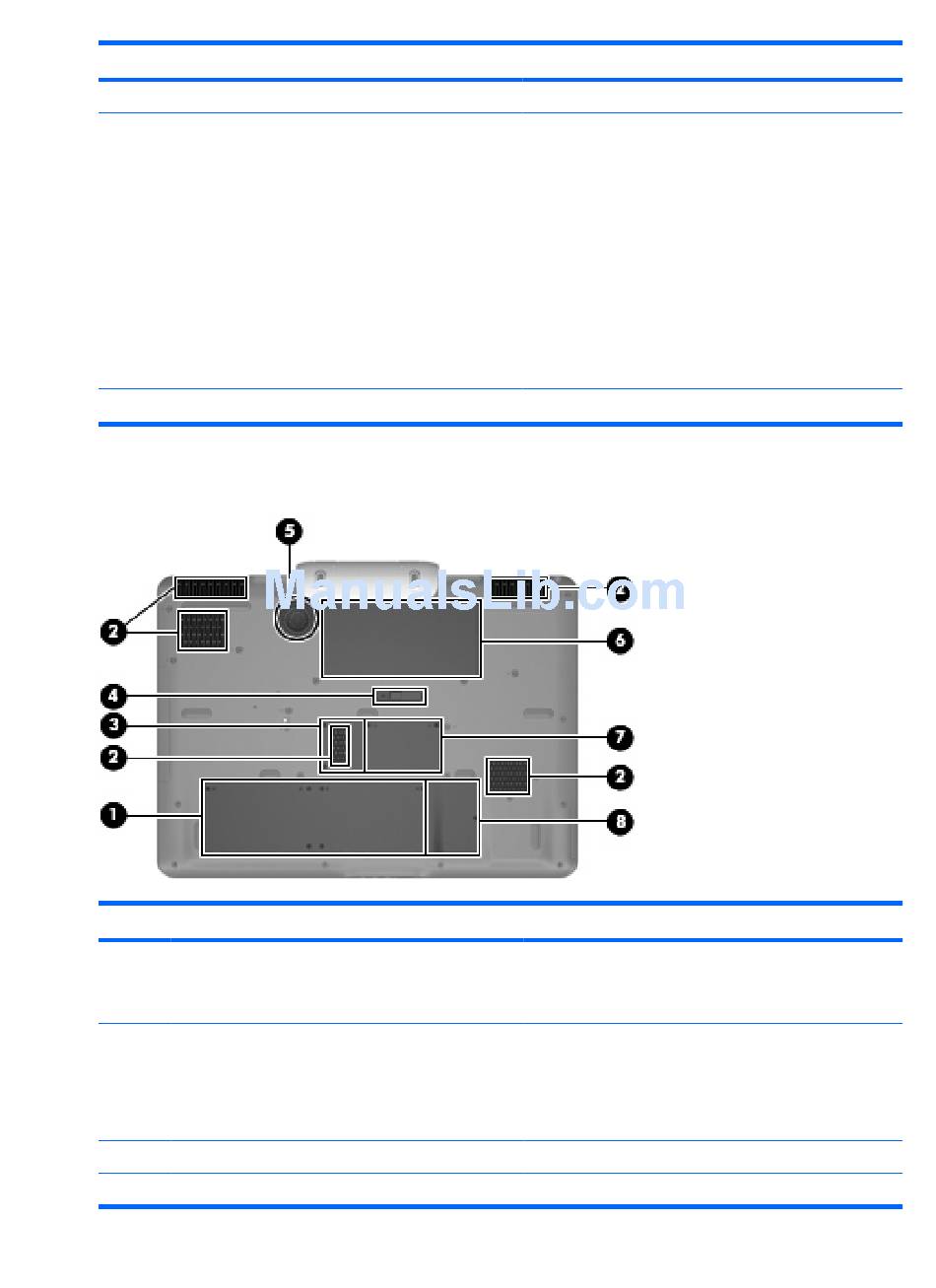

Bottom components
Item
Component
(1)
Hard drive bay
(2)
Vents (5)
(3)
TV tuner module compartment
(4)
Battery release latch
14
Chapter 2 External component identification
Function
On: A digital card is being accessed.
Supports the following optional digital card formats:
Memory Stick (MS)
●
●
Memory Stick Pro (MSP)
MultiMediaCard (MMC)
●
Secure Digital Input/Output (SD I/O)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
●
xD-Picture Card (XD) Type H
●
xD-Picture Card (XD) Type M
●
Supports optional ExpressCard cards.
Function
Holds the hard drives.
NOTE:
Depending on the computer model, the computer
may have 1 or 2 hard drives.
Enable airflow to cool internal components.
NOTE:
The computer fans start up automatically to cool
internal components and prevent overheating. It is normal
for the internal fans to cycle on and off during routine
operation.
Contains the TV tuner slot.
Releases the battery from the battery bay.
