Figure 5: U23 And U38 Jumper Settings - Performance Computer PT-VME151A User Manual

2
Section GETTING STARTED

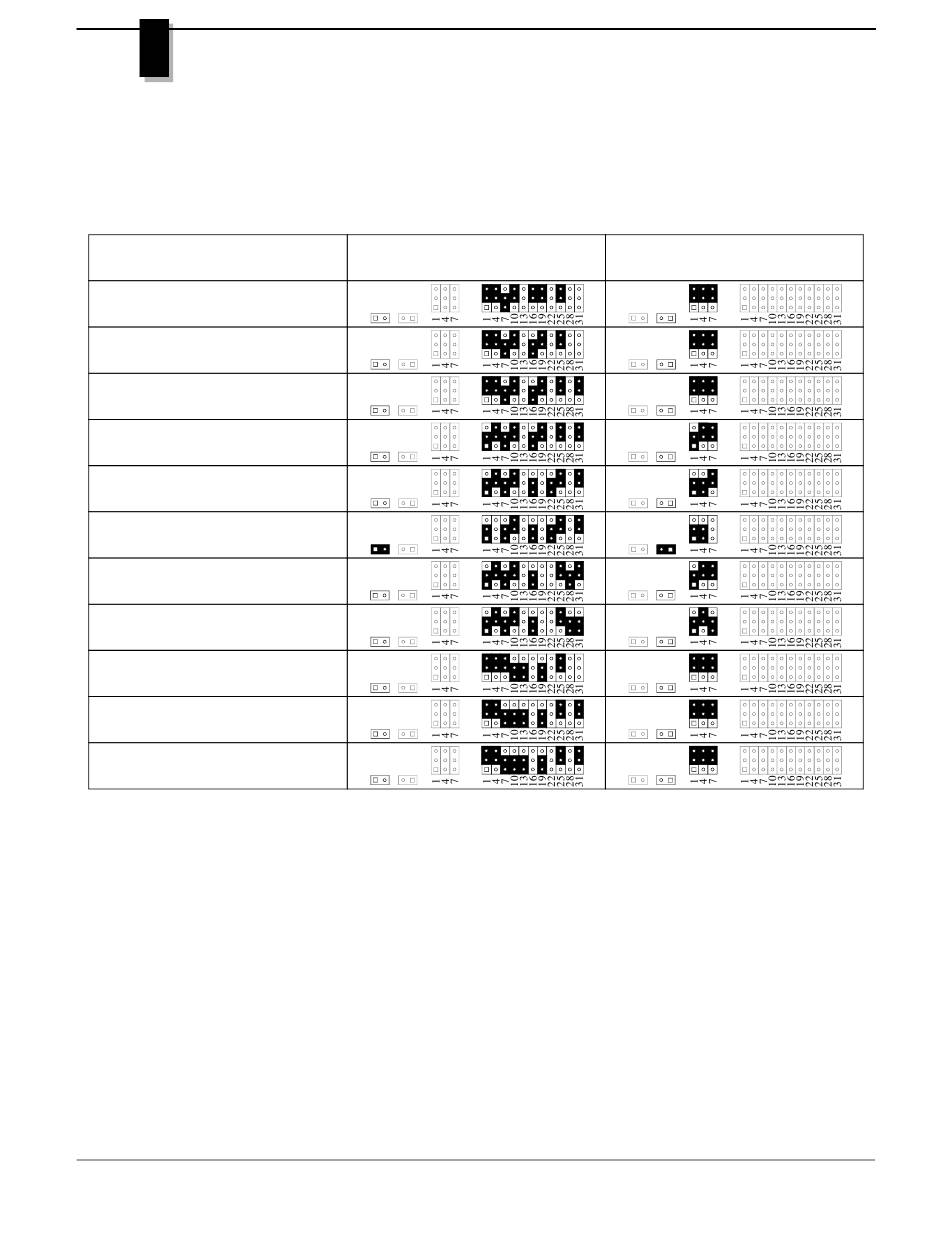

Figure 5 displays Jumper Blocks K10, K4, K11, and K3 from the component side of the PCB. The
pattern represented below is viewed when the PT-VME151A/151AE is placed on a work surface
component side up and the Front Panel closest to the observer. "*" indicates factory configuration.
Device Type
32Kx8, 28 pin
PROM/ROM
* 64Kx8, 28 pin
PROM/ROM
128Kx8, 32 pin
PROM/ROM
256Kx8, 32 pin
PROM/ROM
512Kx8, 32 pin
PROM/ROM
512Kx8, 32 pin, Flash EPROM
Vpp = 5V
All other 32 pin Flash EPROMs
Vpp = 5V
1
32 pin Flash EPROMs
Vpp = 12V
8Kx8, 28 pin
SRAM/EEPROM/RTC
32Kx8, 28 pin
SRAM/EEPROM
128Kx8, 32 pin
SRAM/EEROM
