Teknion Single-Sided Rectangular Worksurface Installation Manual page 20

wwcomplements AP & EU
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU

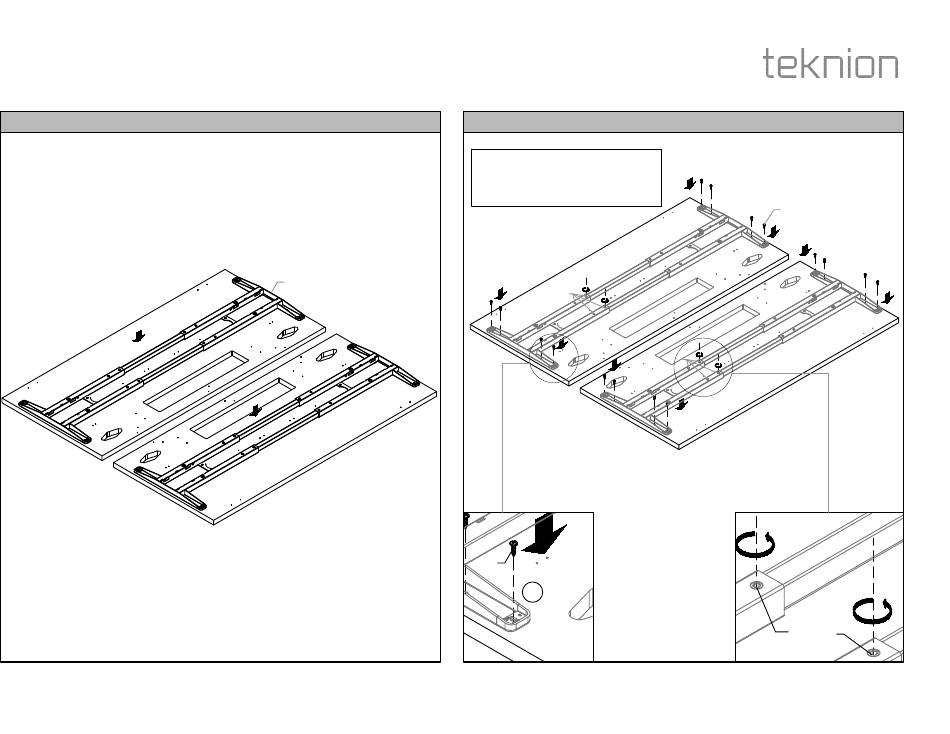

PLACE THE TELESCOPIC FRAME
STEP 2: Place the Telescopic Frames onto the Worksurfaces.
Installation Guides
B1
SECURE THE TELESCOPIC FRAME - 1
NOTE: Loosen the Set Screws on the
Telescopic Frame and Shorten or
Lengthen the Frame to align the Pilot
holes on the Frames and Worksurfaces.
Set Screw
Set Screw
B3
1
STEP 3a: Loosen the Set Screws on the Telescopic Frame and Shorten or Lengthen the Frame
to align the Pilot holes on the Frames and Worksurfaces. Secure the Base Assembly onto the
Worksurface using the Screws provided.
Date: Jan 2021 Page No: 3 of 17
WWC_102
B3
Set Screw
