Teknion Single-Sided Rectangular Worksurface Installation Manual page 85

wwcomplements AP & EU
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU
Vertical Wire Manager (MHWBEEE/EHWBEEE), Bracket & Cover
NOTE:For WWComplements
Europe (EU) products starts with
EH and for Asia Pacific (AP)
starts with MH.
Installation Guides
(MHWBEEB/EHWBEEB)
NOTE: Installation for
WWComplements Europe (EU)
is same as Asia Pacific (AP).
C
A1
Date: May 2022
WWC_118

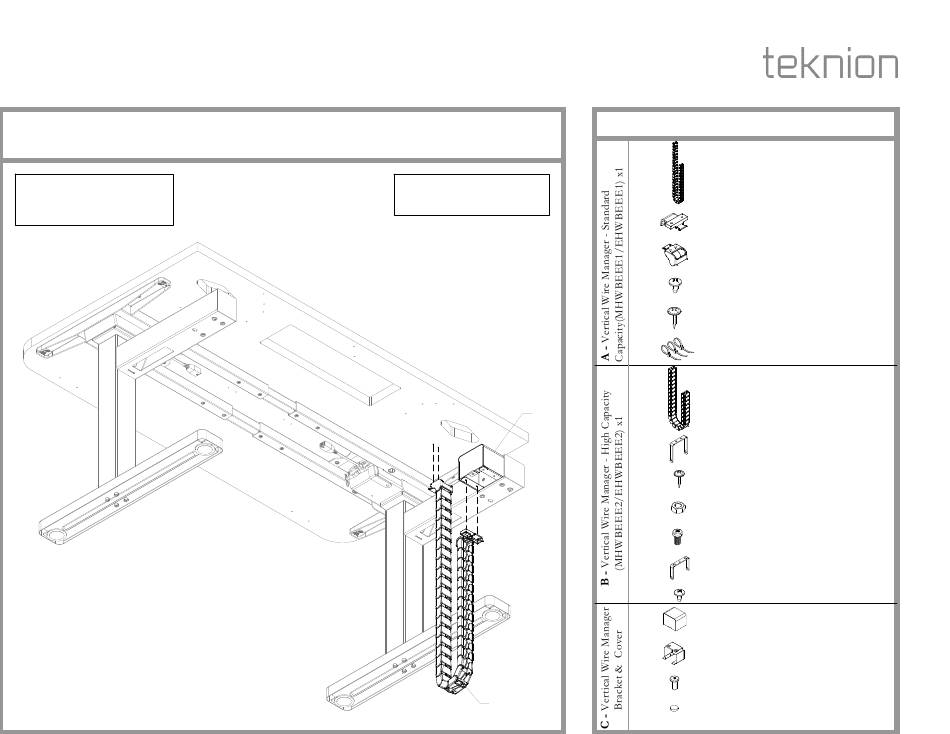

Part and Product Identification
A1 - Vertical Wire Manager Assembly
(B02-0843) x1
A2 - Bench Connector
(B02-0846) x1
A3 - Worksurface Connector
(B02-0844) x1
A4 - 10-32x3/8", Sheet Metal Screw
(E07-0084) x2
A5 - #10 x 0.875" Lg. Screw, Quad
Pan Washer
(E07-0077) x2
A6 - Cable Tie (740614)
(B02-0545) x3
B1 - Vertical Cable Manager White
Finish
(D06H-00X) x1
B2 - Vertical Wire Manager Bracket
Type 2
(A15H-1101) x1
B3 - #10 x 0.875" Lg. Screw, Quad
Pan Washer
(E07-0077) x2
B4 - M5 Hex Nut
(E01T-0005) x2
B5 - M5x10mm Machine Screw
(E07-0077) x2
B6 - Vertical Wire Manager Bracket
Type 2 Small
(B02-0545) x3
B7 - 10-32x3/8", Sheet Metal Screw
(E07-0084) x2
C1 - Vertical Wire Manager Mounting
Bracket Cover
(N01-4844) x1
C2 - Spine Tray Mounting Bracket
Low Capacity
(A16-9438) x1
C3 - M6 x 16mm JCBC Screw Chrome
(E01-1409) x2
C4 - 1/2" Diameter x 1/8" Thick
Circular Rare Earth Magnet
(D03-0059) x2
Page No: 1 of 4
Rev. No: 1
