interpret
Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED

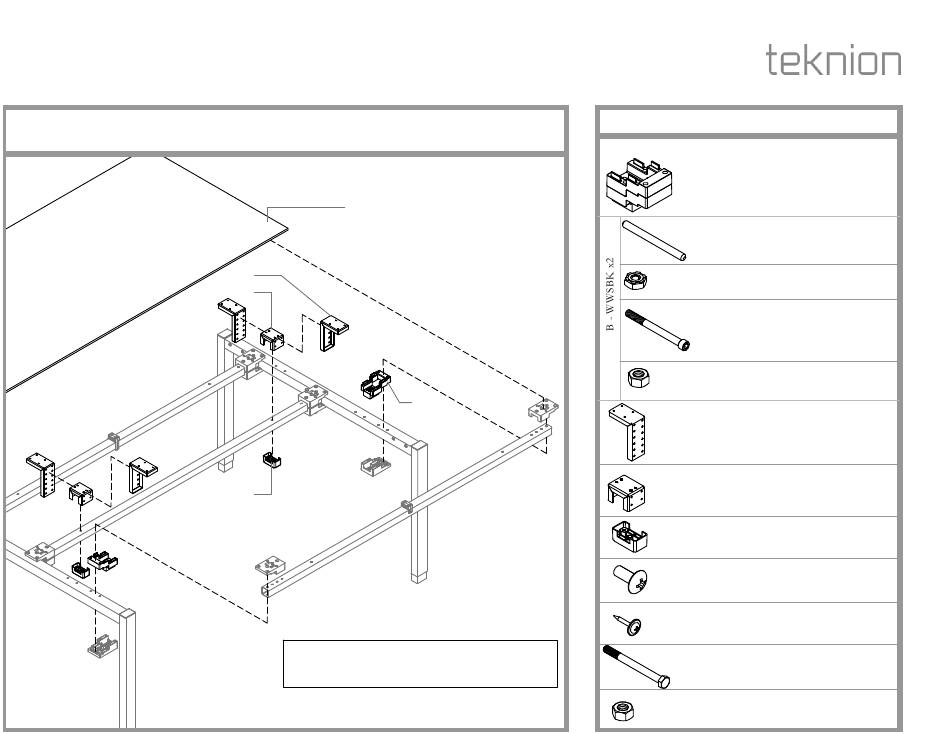

Height Adjustable Stacker Pucks (WWSPK), Bolt Kit (WWSBK)
and Height Adjustable Cantilever (WWSCT)
Worksurface (WWWRW)
C1
C2
A
C3
NOTE: Double Sided Complete Frame shown as
example. Please refer to Installation Guide INT_001
& INT_002 for Frame assembly instructions.
For Customer Support please contact
product.support@teknion.com
Date:
Jun 2017
INT_007a
Part and Product Identification
A - Height Adjustable Stacker Puck
(WWSPK) 2 per each inch increment
B1 - Height Adjustable Threaded Rod
(E01-0795) x 1
B2 - 1/4 - 20 UNC. Nut Hex Keps Zinc
(E03-0059) x 1
B3 - 5/16 -18 Socket Head Cap Screw
(E01-0781) x 4 for 1" increment
(E01-0778) x 4 for 2" increment
(E01-0780) x 4 for 3" increment
B4 - 5/16 - 18 Hex Nut, 1/2 A/F .265 Thick
(E03-0755) x 4
C1 - Center Rail Height Adjustable Bracket
(A15-9865) 48" - 60" Length x4
66" - 96" Length x8
C2 - Center Rail Height Adjustable Clamp
(A16-4966) 48" - 60" Length x2
66" - 96" Length x4
C3 - Worksurface Spacer Block
(A25-0547) 48" - 60" Length x2
66" - 96" Length x4
C4 - 1/4-20x5/8" Machine Screw, Black Quad,
Truss (E01-0113) 48" - 60" Length x8
66" - 96" Length x16
C5 - #10 x 0.875" Long Screw Quad Pan Washer
(E07-0077) 48" - 60" Length x8
66" - 96" Length x16
C6 - 5/16 - 18 x 3.5 Length Hex Cap
(E01-0758) 48" - 60" Length x4
66" - 96" Length x8
C7 - 5/16 - 18 Hex Nut, 1/2 A/F .265 Thick
(E01-0755) 48" - 60" Length x4
66" - 96" Length x8
Page No:
1 of 11
Rev. No: 6
or
or

Advertisement

loading
Need help?

Need help?

Do you have a question about the interpret and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknion interpret

  • Page 1 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 1 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a Rev. No: 6 Height Adjustable Stacker Pucks (WWSPK), Bolt Kit (WWSBK) Part and Product Identification...
  • Page 2 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 2 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a ATTACH CENTER TRANSVERSE BEAM FASTEN CENTER TRANSVERSE BEAM NOTE: Parts labeled with full name are belong to Double Sided Frame.
  • Page 3 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 3 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a NOTE ATTACH SIDE TRANSVERSE BEAMS (END) NOTE: End connection with 1" increment shown.
  • Page 4 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 4 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a SIDE TRANSVERSE BEAM ASSEMBLY (MID) ATTACH SIDE TRANSVERSE BEAMS NOTE: Mid connection with 1"...
  • Page 5 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 5 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a FASTEN SIDE TRANSVERSE BEAMS, ATTACH STANDOFFS & CLAMPS Cantilevers (shown) are delivered with Frame.
  • Page 6 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 6 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a CENTER RAIL ASSEMBLY INSERT CENTER RAIL NOTE: Leave space required to install Power Module...
  • Page 7 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 7 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a FASTEN SPACER BLOCKS AND CENTER RAIL Hex Nut Worksurface Spacer Block Underside View STEP 8: Use Spacer Blocks and Nuts to secure the Center Rail with the Frame.
  • Page 8 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 8 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a FASTEN BRACKETS TO CLAMPS 3 Stacker Pucks Cantilever 2 Stacker Pucks Cantilever NOTE: 1"...
  • Page 9 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 9 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a FASTEN THREADED ROD WITH WORKSURFACE Worksurface NOTE: To prevent Threaded Rod penetrating top of Worksurface, please refer to next Page for dimensions to be fasten.
  • Page 10 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 10 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a CUT THREADED ROD STEP 11: Cut excess Threaded Rod at location indicated on illustration.
  • Page 11 Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 11 of 11 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - DOUBLE SIDED INT_007a FASTEN CENTER HEIGHT ADJUSTABLE BRACKET TO WORKSURFACE Detail View Worksurface STEP 12: Fasten Brackets to Worksurface from underneath with Screws provided.
