Teknion Single-Sided Rectangular Worksurface Installation Manual page 46

wwcomplements AP & EU
Section: SCREENS
Description: WWCOMP HA TABLES - AP & EU
Double-Sided Desk Edge Screen - Infinity (MHWBCDX/EHWBCDX)
NOTE:Installation for
WWComplements Europe (EU)
is same as Asia Pacific (AP).
NOTE:For WWComplements
Europe (EU) products starts
with EH and for Asia Pacific
(AP) starts with MH.
Installation Guides
NOTE:MHWBCDX1112 is shown
as Example.
Date: Jan_2021
WWC_107

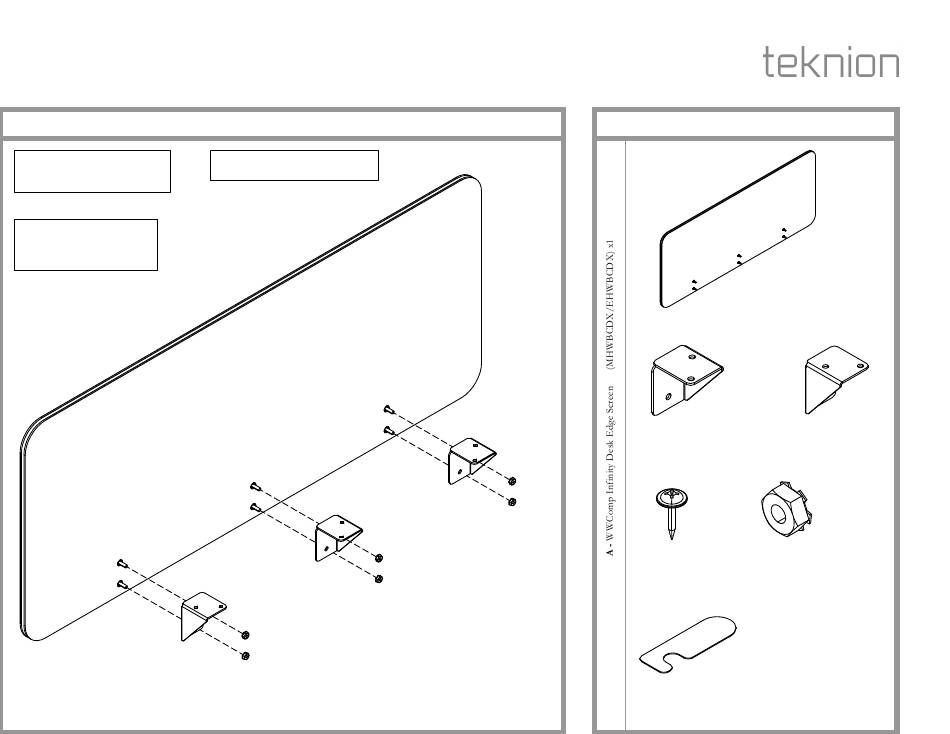

Part and Product Identification
A1 - Infinity Desk Edge Screen
(MHWBCDX-XX/EHWBCDX-XX) x1
A3 - Screen Mounting
A2 - Screen Mounting
Bracket - L (A16-9520L) x1
Bracket - R (A16-9520R) x2
A4 - #10 X 0.875", A5 - Hex Nut Keps Zinc
Screw Washer (Hex Nut) x6
(E07-0077) x6
A6 - Plastic Spacer
(B10-0521) x2
Page No: 1 of 5
Rev. No: 0
