Teknion Single-Sided Rectangular Worksurface Installation Manual page 105

wwcomplements
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU
HiSpace Worldwide Rectangular Worksurface (MYWWB/EYWWB), HiSpace
Wordwide Rectangular Worksurface w/ Radius Corner (MYWWJ/EYWWJ) and
HiSpace Worldwide Height-Adjustable Freestanding - Base Only
NOTE:Installation for
WWComplements Europe (EU)
is same as Asia Pacific (AP).
Installation Guides
(MYMYR/EYMYR)
A3
A2
B1
D1
E
NOTE:For WWComplements
Europe (EU) products starts
with EH and for Asia Pacific
(AP) starts with MH.
A1
Date: Jan 2021
WWC_201

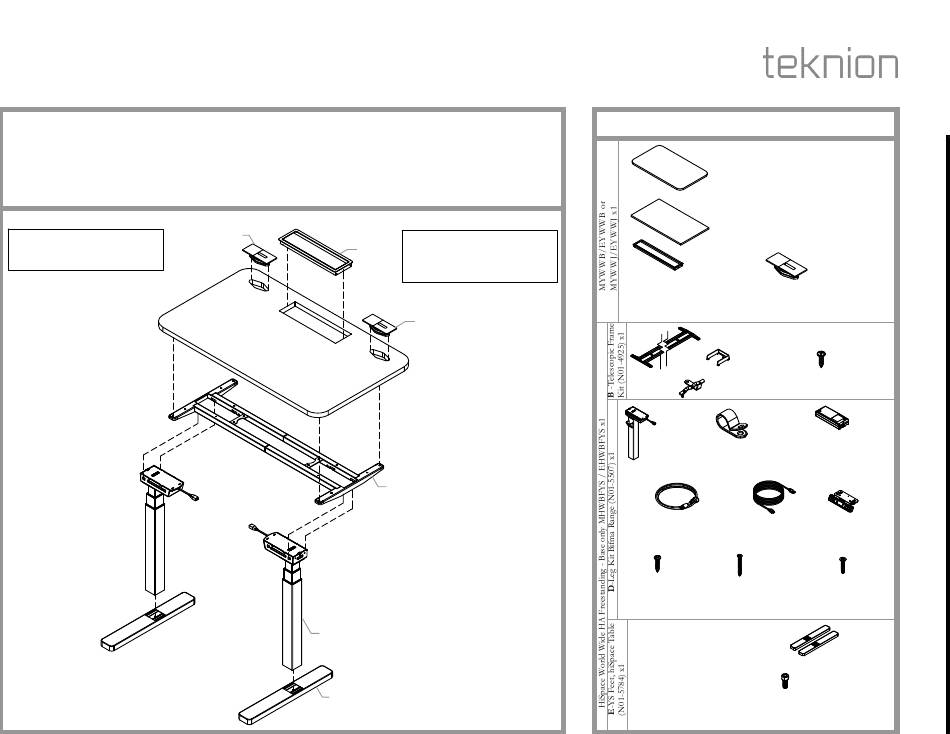

Part and Product Identification
A1 - AP Hispace World Wide Rectangular Wksf.
(C07-7754) x1
(for MYWWB/EYWWB)
OR
A1 - HiSpace World Wide Rectangular Wksf.
W\ Rad.
(C07-7604) x1
(for MYWWJ/EYWWJ)
A2 - Access Door Asm.
A3 - Rect. Grommet
(N01-4759) x1 (for both)
(RAGC) x1(for both)
B1 - Telescope Frame (N01-4851) x1
B2 - Motor Housing
Cover (A16-9446) x2
B4 - Cam Handle w/
Cotter Pin. (N09-9814) x2
D2 - Cable Clamp
D1 -Leg L/R
(B02-0558) x10
(N01-5495) x2
D4 - Right Angle D5 - 3m Power
Connector 1m Lg. Cord
(D06-4277) x2 (D06-4136) x1
D7 - #10 x 25mm, zinc D7 - #4 x 25mm, zinc
(E01-1415) x2 (E01-1416) x3
E1 - YS Feet (Pair), Hispace Table
(N09-5784) x1
M6X14 - SHCS
E2 -
(E04-0096) x8
Page No: 1 of 14
Rev. No: 0
B2 - Wood Screw
#10x20mm
(A16-9446) x2
D3 -
Control Box w\ Anti
Collision (D06-4725) x1
D6 - Keypad,
hiSpace Table
(D06-4276) x1
D7 - #6 x 20mm, zinc
(E01-1417) x10
