Teknion Single-Sided Rectangular Worksurface Installation Manual page 99

wwcomplements AP & EU
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU
REMOVE FELT COVER
Felt Cover
NOTE: Worksurface,
Control Box and Wires
are Hidden for
Illustration Purpose.
A1

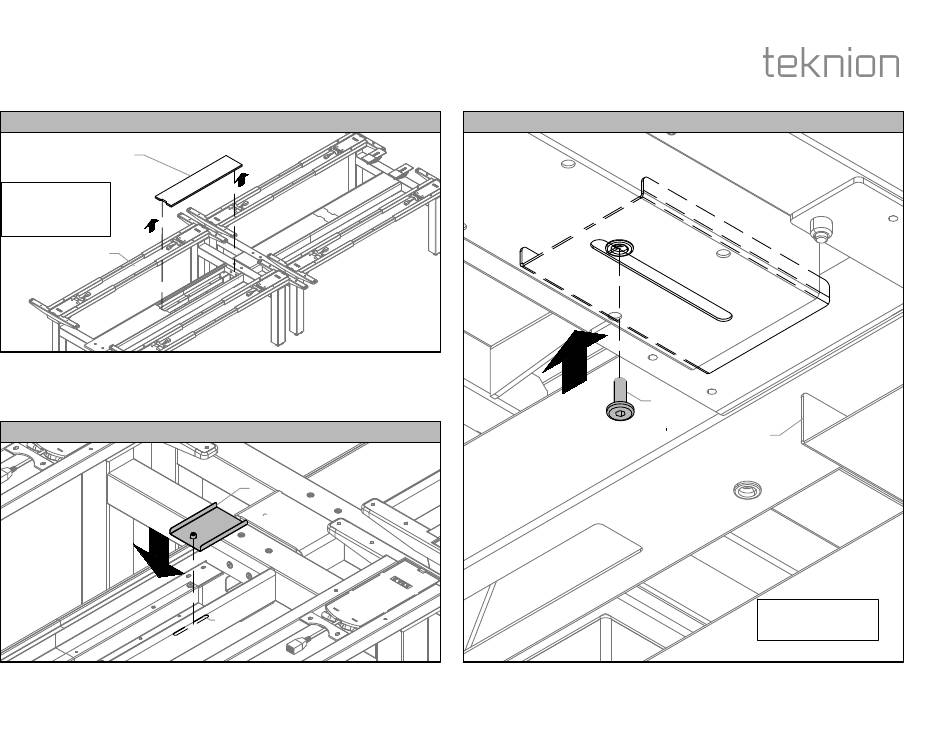

STEP 1: Remove the Felt Cover from the Spine Tray.
INSERT WIRE COVER
STEP 2: Insert the Wire Cover into the Spine Tray and Align the Wire Cover so that the Rivet
Nut aligns with the Slot on the Spine Tray.
Installation Guides
A1
Slot
TIGHTEN WIRE COVER
STEP 3: Tighten the Wire Cover using the Screw provided. Do Not Fully Tighten the Wire
Cover. Finish all the Wiring before Securing.
Date: Jan_2021
WWC_122
A3
Wire Bridge
NOTE: Wiring should be
done Before Fully
Securing Wire Cover.
Page No: 2 of 4
