Teknion Single-Sided Rectangular Worksurface Installation Manual page 27

wwcomplements AP & EU
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU
ALIGN BOTH WORKSURFACES
X1

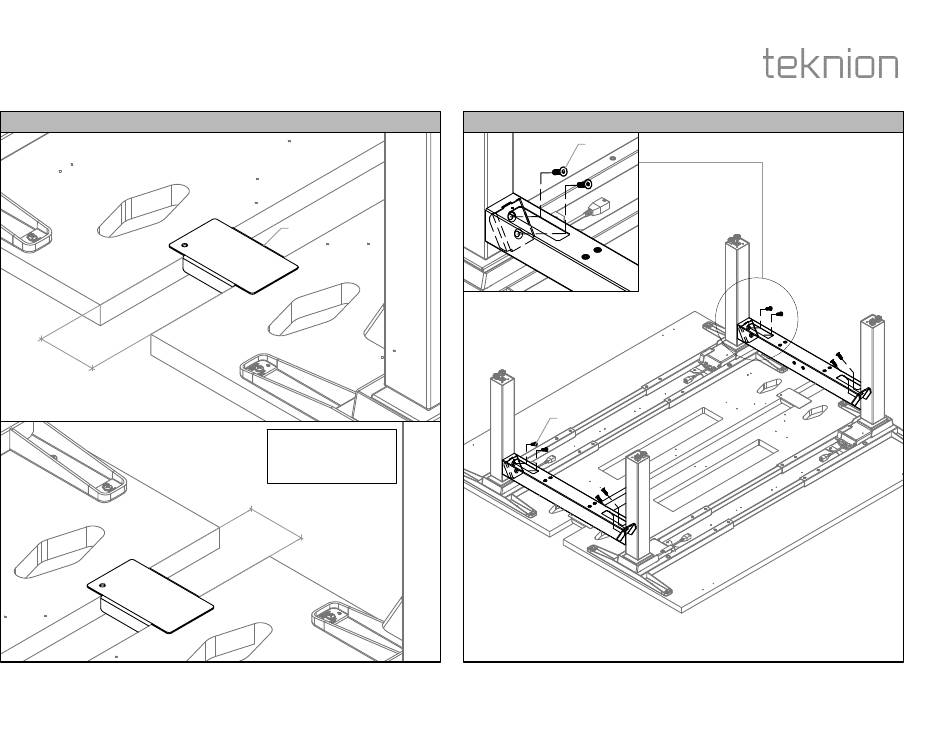

STEP 11: Align the Side of the Worksurface. Ensure there is equal gap between the
Worksurfaces.
Installation Guides
A4
NOTE: Make sure the
distance or gap between
Worksurfaces are equal
(X1=X2).
X2
SECURE FRAME CONNECTING TUBE
C2
C2
STEP 12:
Secure the Frame Connecting Tube Assembly using the Screws provided.
Date: Jan 2021 Page No: 10 of 17
WWC_102
