Teknion Single-Sided Rectangular Worksurface Installation Manual page 18

wwcomplements AP & EU
Section: HEIGHT ADJUSTABLE TABLES
Description:
WWCOMP HA TABLES - AP & EU
Double-Sided Rectangular Worksurface (MHWBWBD/EHWBWBD), Double
-Sided Rectangular Worksurface w/ Radius Corners (MHWBWJD/EHWBWJD)
and Double-Sided Frame (MHWBFYD/EHWBFYD)
NOTE:Installation for
WWComplements Europe (EU)
is same as Asia Pacific (AP).
B4
Installation Guides
A2
A3
A1
C1
NOTE:For WWComplements
Europe (EU) products starts
with EH and for Asia Pacific
(AP) starts with MH.
NOTE: MHWBFYD1418
and MHWBWBD071806B
is shown as example.
B1
D1
E
Date: Jan 2021
WWC_102

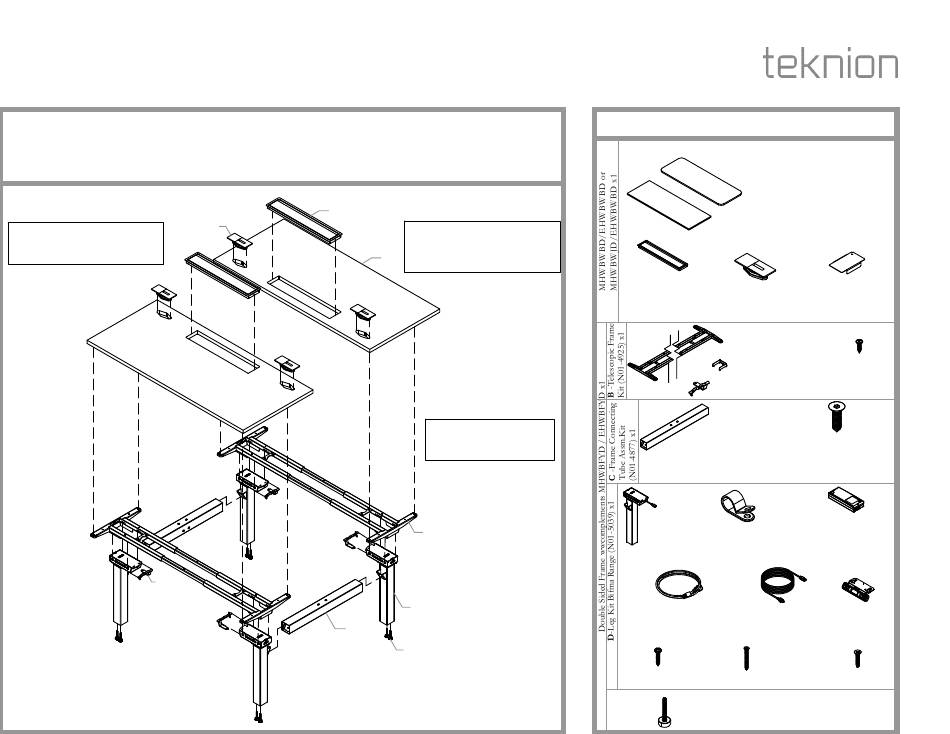

Part and Product Identification
A1 - Rectangula HA Wksf. for- hiSpace
(C07-7419) x1
(for MHWBWBD/EHWBWBD)
OR
A1 - Rectangular HA Wksf.
for- hiSpace W\ Rad.
(C07-7419) x1
(for MHWBWJD/EHWBWJD)
A2 - Access Door Asm.
A3 - Rect. Grommet
(N01-4759) x1 (for both)
(RAGC) x1(for both)
B1 - Telescope Frame (N01-4851) x1
B2 - Motor Housing
Cover (A16-9446) x2
B4 - Cam Handle w/
Cotter Pin. (N09-9814) x2
C1 - Frame Connecting C2 - M8x25mm Flat Socket
Tube Assm. (N01-4851) x2 Head Screw (E01-1410) x4
D2 - Cable Clamp
D1 -Leg L/R
(B02-0558) x10
(N01-4852) x4
D4 - Right Angle D5 - 3m Power
Connector 1m Lg. Cord
(D06-4277) x2 (D06-4136) x1
D7 - #10 x 25mm, zinc D8 - #4 x 25mm, zinc
(E01-1415) x2 (E01-1416) x2
E - Leveler, M6 x 54mm long
(D06-4291) x8
Page No: 1 of 17
Rev. No: 0
A4 - Alignment Kit
(X01-3835) x 0.1
(for both)
B3 - Wood Screw
#10x20mm
(E01-1414) x16
D3 -
Control Box w\ Anti
Collision (D06-4725) x1
D6 - Keypad,
hiSpace Table
(D06-4726) x1
D9 - #6 x 20mm, zinc
(E01-1417) x10
