sidewise
Section:
Description:
SWDBA, SWDBB, SWDBC, SWDBD, SWDBE, SWDBF, SWEBB,
SWCBA, SWCBB, SWCBE, SWCBF, SWLMB, SWDMA, and SWCMA
NOTE: Please refer to Installation
Guide SID_201 to remove all Drawers
in Storage Tower before proceeding
with this Installation Guide.
NOTE: SWCBF shown.
G2
D
H
A
For Customer Support please contact
product.support@teknion.com

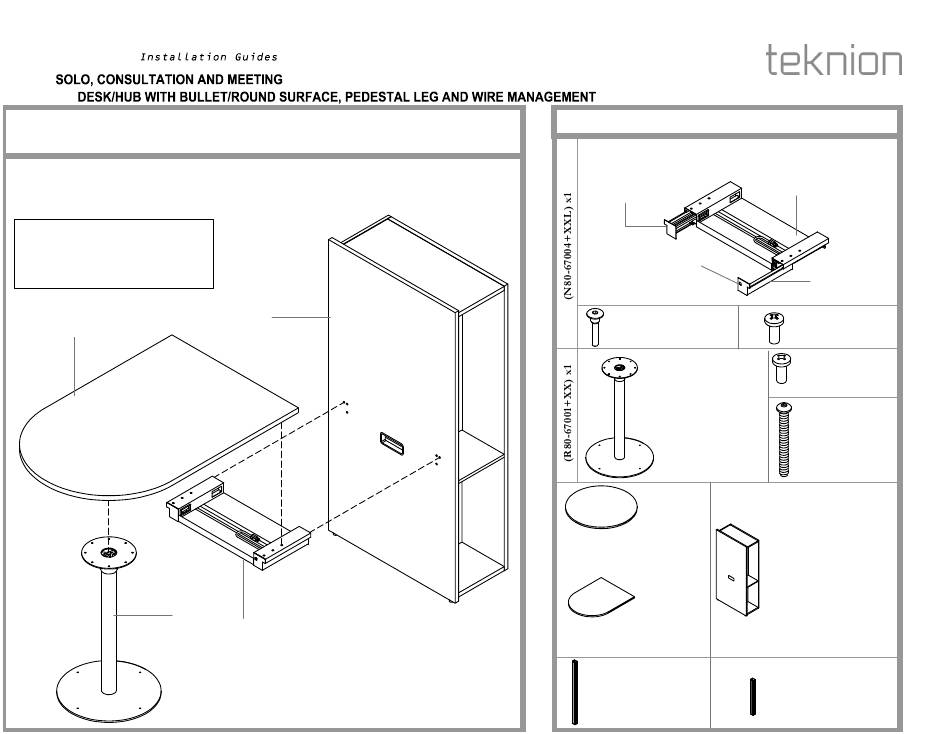

Part and Product Identification
A1 - Cover Without Hole
(N80-67015X) x1
A2 - Cover With Hole
(N80-67016X) x1
B - Murakoshi Screws
(E02-50153) x 6
D - Pedestal Leg Assembly
(N80-67012+24) x1
Or
(N80-67012+29) x1
Or
(N80-67012+36) x1
G1 - Round Surface
(SWWDM486) x1
OR
G2 - "D" Surface
(SWWDB36(XX-XX)6) x1
I - Wire Management
Tube With
Adhesive Strip
(B11-67000+29) x 1
Date:
Sep 2012
Page No:
1 of 15
SID_001
Rev. No: 0
A - Worksurface
Support Assembly
A3 - Worksurface
Support Cover
(A23-67001) x2
C - Bolts
(E01-50403) x 6
E - Screw Kit
(X80-61011) x2
F - Locking Screw
(E01-50793) x3
H - Freestanding Storage Tower
(STSWCWXX3672XX) x1
Or
(STSWCMAX3672XX) x1
Or
(STSWDWBX3651XX) x1
Or
(STSWDWXXYY72XX) x1
Or
(STSWDWXX3672XX) x1
Or
(STSWLMBX3651XX) x1
J - Wire Management Tube
With Adhesive Strip
(B11-67000+11) x 1
Advertisement
Related Manuals for Teknion Sidewise SWDBA
Summary of Contents for Teknion Sidewise SWDBA
- Page 1 (STSWDWXXYY72XX) x1 (STSWDWXX3672XX) x1 G2 - "D" Surface (STSWLMBX3651XX) x1 (SWWDB36(XX-XX)6) x1 I - Wire Management J - Wire Management Tube Tube With With Adhesive Strip For Customer Support please contact Adhesive Strip (B11-67000+11) x 1 product.support@teknion.com (B11-67000+29) x 1...
- Page 2 sidewise Section: Date: Sep 2012 Page No: 2 of 15 Description: SID_001 SLIDE OUT COVERS ALIGN SUPPORT ASSEMBLY NOTE: Re-insert Covers after Worksurface Support and Worksurface are installed. STEP 1: Slide out both Support Covers. STEP 1: STEP 2: Align the pilot holes on the back of the Covers and Tower. NOTE: Re-insert Covers after Worksurface Support and Worksurface are installed.
-
Page 3: Detail View
sidewise Section: Date: Sep 2012 Page No: 3 of 15 Description: SID_001 SECURE SUPPORT ASSEMBLY DETAIL VIEW STEP 3: Secure Worksurface Support and Tower with Screws. - Page 4 sidewise Section: Date: Sep 2012 Page No: 4 of 15 Description: SID_001 WIRE MANAGEMENT TUBE (OPTION 1) WIRE MANAGEMENT TUBE (OPTION 2) NOTE: Please refer to Specification Drawing NOTE: Please cut the 280mm Wire for the length of Tube. Management Tube to 128mm long for 1) Single side, Desk Height with 24"...
- Page 5 sidewise Section: Date: Sep 2012 Page No: 5 of 15 Description: SID_001 ATTACH WIRE MANAGEMENT TUBE (DUAL SIDED, DESK HEIGHT WITH 36" WIDE STORAGE TOWER) SIDE VIEW BOTTOM VIEW TOP VIEW STEP 5a: Please attach Wire Management Tube as shown for Dual Sided Desk with 36" wide Storage Tower.
- Page 6 sidewise Section: Date: Sep 2012 Page No: 6 of 15 Description: SID_001 ATTACH WIRE MANAGEMENT TUBE (COUNTER HEIGHT STORAGE TOWER) SIDE VIEW BOTTOM VIEW TOP VIEW STEP 5b: Please attach Wire Management Tube as shown for Counter Height Storage Tower.
- Page 7 sidewise Section: Date: Sep 2012 Page No: 7of 15 Description: SID_001 ATTACH WIRE MANAGEMENT TUBE (SINGLE SIDED, DESK HEIGHT WITH 24" WIDE STORAGE) BOTTOM VIEW SIDE VIEW TOP VIEW STEP 5c: Please attach Wire Management Tube as shown for Single Side, Desk Height with 24" Wide Storage Tower.
- Page 8 sidewise Section: Date: Sep 2012 Page No: 8 of 15 Description: SID_001 ATTACH WIRE MANAGEMENT TUBE (SINGLE SIDED, DESK HEIGHT WITH 30" WIDE STORAGE) BOTTOM VIEW SIDE VIEW TOP VIEW STEP 5d: Please attach Wire Management Tube as shown for Single Side, Desk Height with 30" Wide Storage Tower.
- Page 9 sidewise Section: Date: Sep 2012 Page No: 9 of 15 Description: SID_001 GUIDE CABLE THROUGH SUPPORT RUN CABLE INTO STORAGE TOWER BOTTOM VIEW STEP 6: Guide Cable through Worksurface Support. STEP 7: Run Cable into Storage Tower.
- Page 10 sidewise Section: Date: Sep 2012 Page No: 10 of 15 Description: SID_001 INSERT CABLE (DESK HEIGHT) INSERT CABLE (COUNTER HEIGHT) BOTTOM VIEW STEP 8a: Insert Cable into Wire Management Tube. STEP 8b: Insert Cable into Wire Management Tube.
- Page 11 sidewise Section: Date: Sep 2012 Page No: 11 of 15 Description: SID_001 REMOVE LOCKING SCREWS ADJUST HEIGHT STEP 9: Remove Locking Screws from Pedestal Leg. STEP 10: Rotate The Top Plate from Pedestal Leg to the same height as the Bridge Connection.
- Page 12 sidewise Section: Date: Sep 2012 Page No: 12 of 15 Description: SID_001 NOTE NOTE: Align the pilot holes under Worksurface corresponding to Pedestal Leg and Worksurface Support. ALIGN SIDE VIEW FINISHED FLOOR NOTE: Please measure the height of the Bridge Connection and adjust the Pedestal Leg to the same height. Align the pilot holes under Worksurface corresponding to Pedestal Leg and Worksurface Support.
- Page 13 sidewise Section: Date: Sep 2012 Page No: 13 of 15 Description: SID_001 LEVEL WORKSURFACE SECURE PEDESTAL LEG STEP 11: Lay Worksurface on Bridge Connection and Pedestal Leg, then level it. STEP 12: Remove Worksurface, and fasten Screws on Pedestal Leg as shown to lock it in the adjusted height.
- Page 14 sidewise Section: Date: Sep 2012 Page No: 14 of 15 Description: SID_001 SECURE WORKSURFACE DETAIL VIEW DETAIL VIEW STEP 13: Secure Worksurface on Support and Pedestal Leg with Screws.
- Page 15 sidewise Section: Date: Sep 2012 Page No: 15 of 15 Description: SID_001 RE-INSERT WORKSURFACE SUPPORT COVER NOTE: Make sure to use the Support Cover with hole for the Power Bar side. STEP 14: Re-insert Worksurface Support Cover. NOTE: Make sure to use the Support Cover with hole for the Power Bar side.
