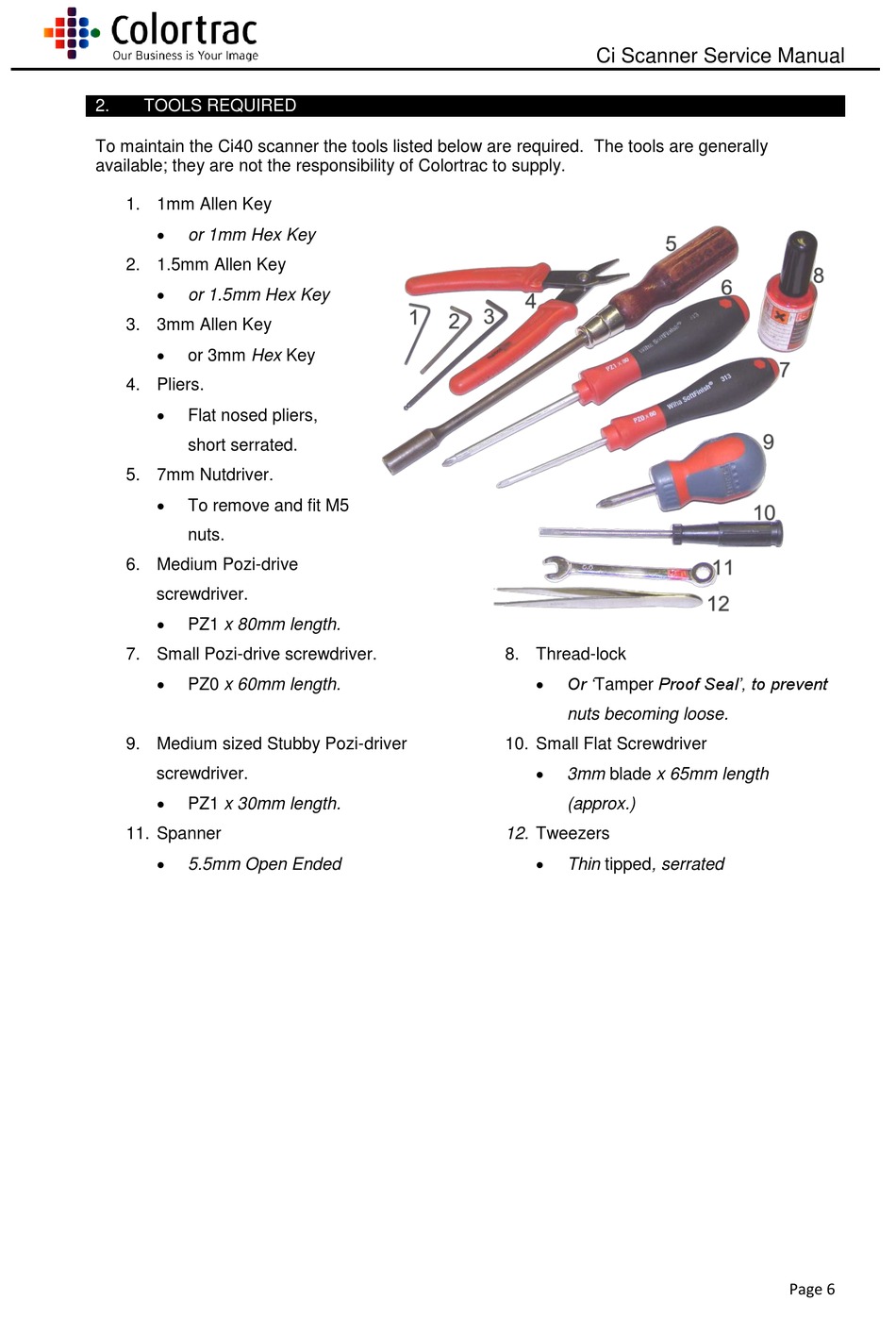

TOOLS REQUIRED

To maintain the Ci40 scanner the tools listed below are required. The tools are generally
available; they are not the responsibility of Colortrac to supply.
1. 1mm Allen Key

or 1mm Hex Key
2. 1.5mm Allen Key

or 1.5mm Hex Key
3. 3mm Allen Key

or 3mm Hex Key
4. Pliers.

Flat nosed pliers,
short serrated.
5. 7mm Nutdriver.

To remove and fit M5
nuts.
6. Medium Pozi-drive
screwdriver.

PZ1 x 80mm length.
7. Small Pozi-drive screwdriver.

PZ0 x 60mm length.
9. Medium sized Stubby Pozi-driver
screwdriver.

PZ1 x 30mm length.
11. Spanner

5.5mm Open Ended
Ci Scanner Service Manual
8. Thread-lock

Or 'Tamper Proof Seal', to prevent
nuts becoming loose.
10. Small Flat Screwdriver

3mm blade x 65mm length
(approx.)
12. Tweezers

Thin tipped, serrated
