5. When replacing the paper
sensors, first fit the locating
pin into the corresponding
chassis locating hole.
Then place the M2.5 screw
through the paper sensor
hole and screw into the
threaded hole in the
chassis. Make sure the
sensor is finger tight so as
not to distort it or break it.
6. Refit the Main Roller as in
Chapter 12.7.
7. Refit the Paper Tray Sub-A
as in Chapter 11.5
Ci Scanner Service Manual

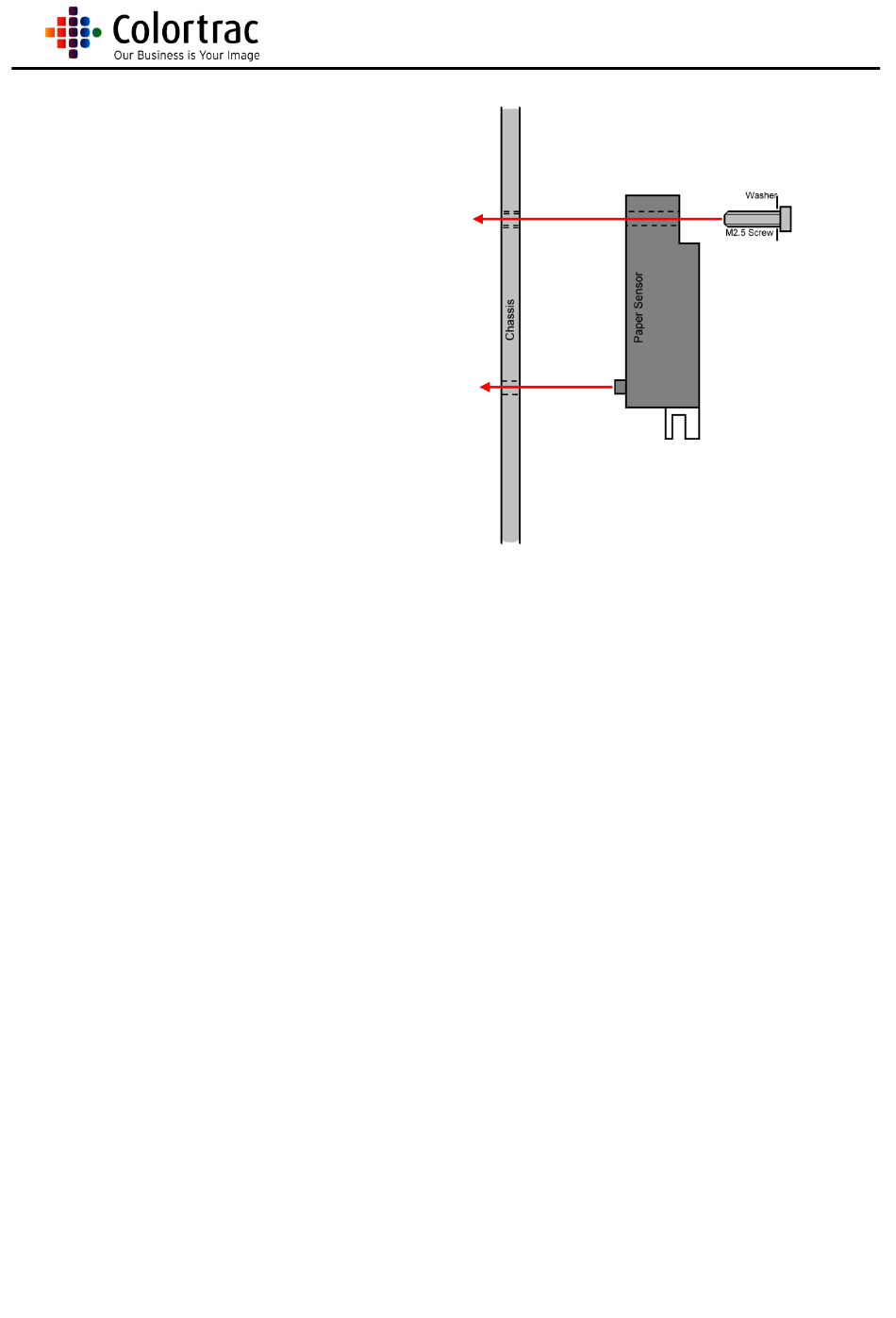

Locating pin
