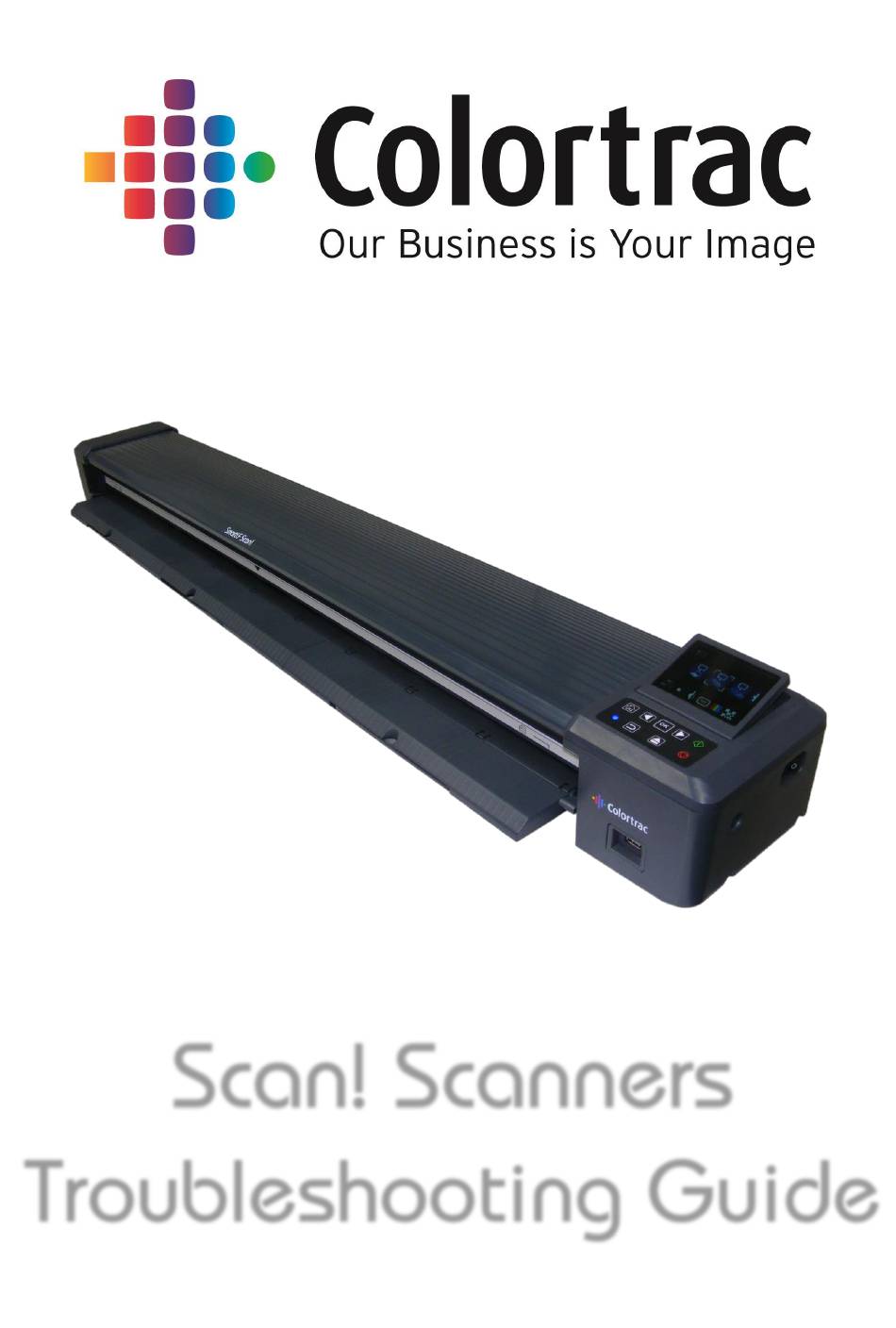

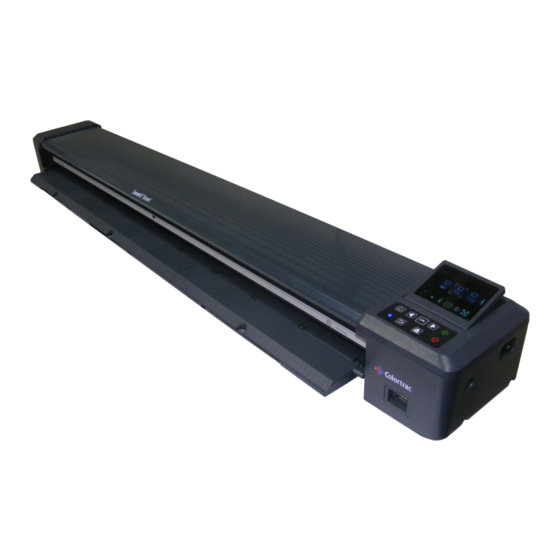

- Page 1 Scan! Scanners Troubleshooting Guide...
- Page 2 Technical Support, Colortrac Ltd. Colortrac Ltd shall not be liable for any damages, errors, issues or events that result from the use of the equipment or this manual. Page 2 of 10...
-
Page 3: Table Of Contents
Scan! Scanner Troubleshooting Guide Contents Dead Scanner, No Display ....................... 4 Image Does Not Look As It Should ..................5 Firmware Install Problems ......................7 Paper Loading Problems ......................8 Error Codes ..........................9 Miscellaneous ......................... 10 References within this Instruction Manual: The Scan! Service Material can be found on: www.colortracsupport.com Requister for your own access. -
Page 4: Dead Scanner, No Display
Scan! Scanner Troubleshooting Guide Dead Scanner, No Display Flow Graph Note: Follow procedures in the Service Manual for the various suggestions. Page 4 of 10... -
Page 5: Image Does Not Look As It Should
Scan! Scanner Troubleshooting Guide Image Does Not Look As It Should Image Examples Original Scanned Image 2. When the image between 2 CIS points 1. Bad image quality with washed out or has a step, it is because the scanner incorrect colours is normally down to the needs the auto-stitch process to be run. - Page 6 Scan! Scanner Troubleshooting Guide 3. Fine lines down the image can be either dirt or a scratches on the glass or dirt being picked up from the paper tray and dragged through. If the line is contineous through the scan, clean the glass and calibrate the scanner.
-
Page 7: Firmware Install Problems
Scan! Scanner Troubleshooting Guide Firmware Install Problems Flow Graph Note: Follow procedures in the Service Manual for the various suggestions. Page 7 of 10... -
Page 8: Paper Loading Problems
Scan! Scanner Troubleshooting Guide Paper Loading Problems Flow Graph Note: Follow procedures in the Service Manual for the various suggestions. Page 8 of 10... -
Page 9: Error Codes
Scan! Scanner Troubleshooting Guide Error Codes Engineering Menu From the engineering menu: (together) Then: Error codes (see below). (After Firmware 1.01 and NetApp v1.2.2.7) 001 - ERR_NO_PAPER 002 - ERR_INVALID_MODEL 003 - ERR_CAL_PARAMS_INVALID 004 - ERR_CAL_PARAMS_MISSING 005 - ERR_SD_MOUNT 006 - ERR_SD_READ 007 - ERR_SD_WRITE 008 - ERR_SD_FULL 009 - ERR_SD_FORMAT... -
Page 10: Miscellaneous
Scan! Scanner Troubleshooting Guide Miscellaneous Scanner won’t scan. It stages media and the control buttons navigate, but the scanner won’t No calibration figures in scanner. Run the light levels, scan to USB / Network / Printer when the green calibration, Auto-stitch and motor speed processes. button is pressed Clean Glass Scanner will not auto-size.
