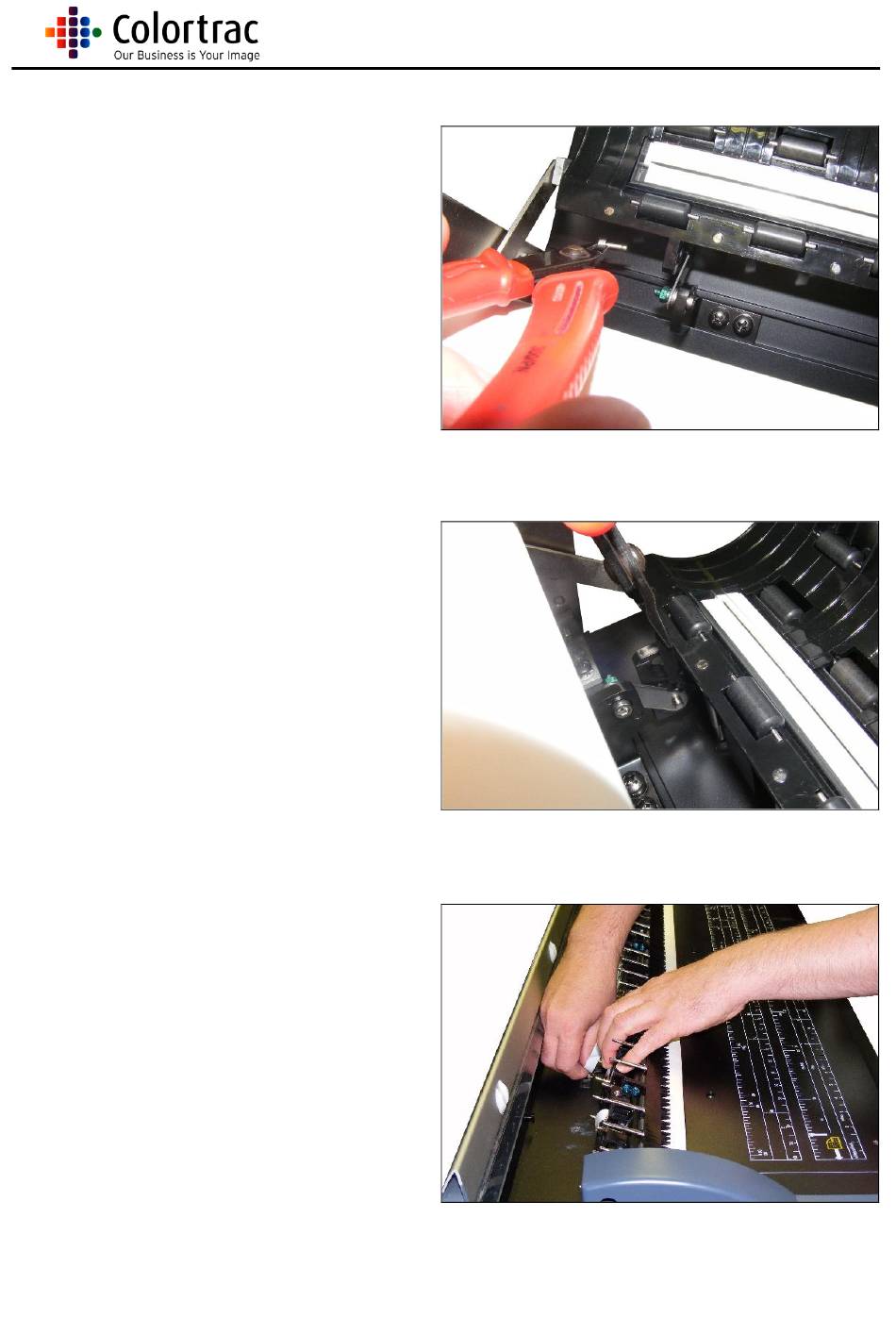

19. Lift the arm of the elbow
brackets until the hole is level
with the bracket pin, and then
push the pin completely
through the arm.
20. Press the Extended Circlip
into the slot of the bracket
pin, making sure it 'clicks'
fully in place.
21. Repeat instruction 18 – 20 for
all the bracket pins.
22. Hold the CIS Plate Assembly
towards the Roller, and refit
the cables as they were
before. Use new double-
sided adhesive tape should it
be required. Make sure the
cables do not have
unnecessary twists or folds in
or that the cable will not be
crushed when the CIS Plate
Assembly is fitted back in
place.
