Colortrac SmartLF Ci40 Service Manual page 25

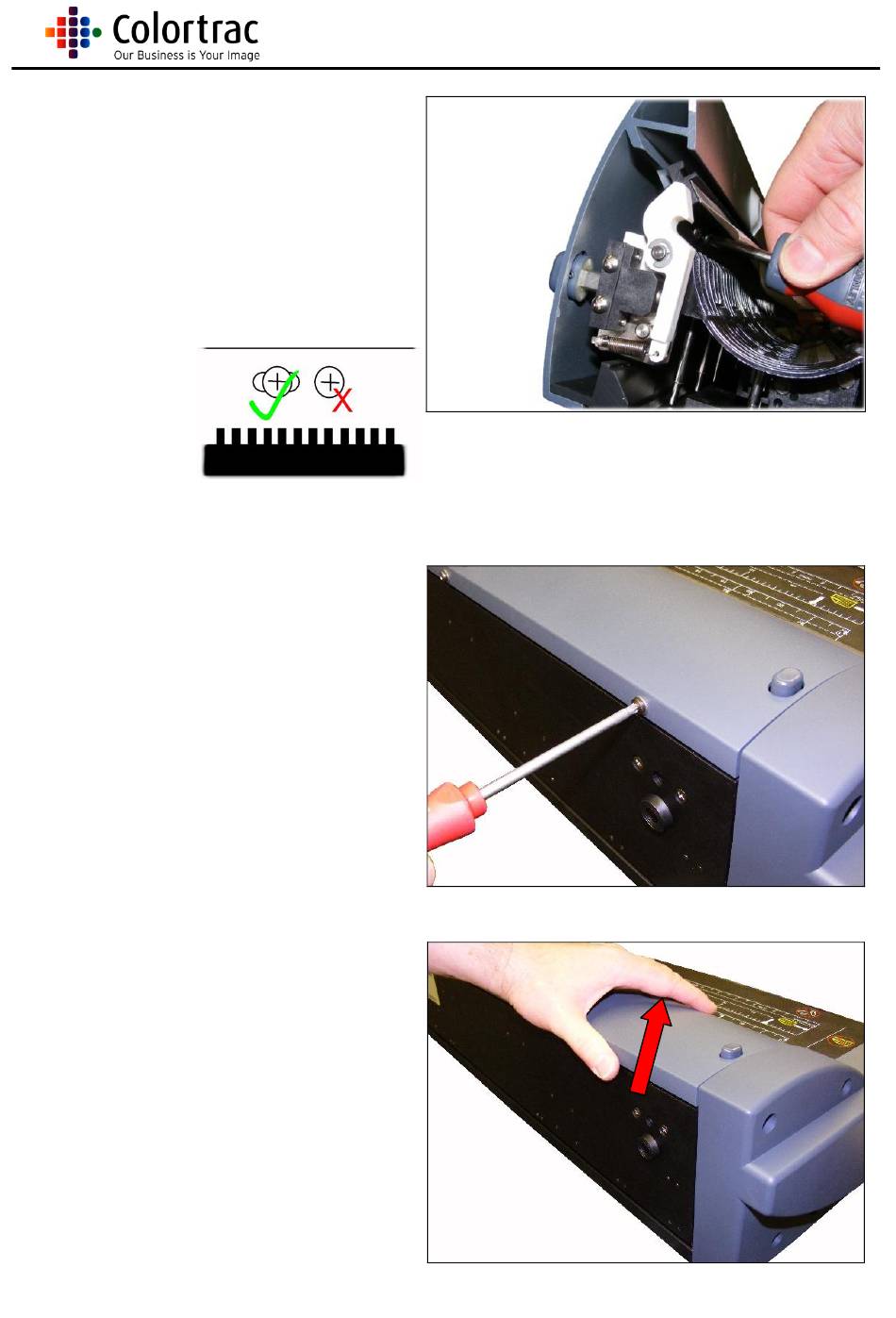

3. Under the Mylar strip,
remove the 4 x M4 Pan
Head Screws from the
elongated hole that screws
on the Lid Cover Extrusion
Sub-A. The second,
adjacent screw adjusts the
height of the lid (see
instructions 9 -11).*
NOTE: The Mylar strip should not be removed to get to the screws. While bending the Mylar back to
remove the screw, care is to be taken not to crease or damage the Mylar. Should it be creased or
damaged the Mylar strip should be replaced.
4. Close the lid unit and
remove the 5 x M4 Pan
Head Screws from the
back of the Lid Cover
Extrusion Sub-A.
*Older scanners may not have the 2 sets of screws, and only have the M4 screws holding the lid on. However, removing the lid
is the same method.
5. Remove the Lid Cover
Extrusion Sub-A and store
in a safe place.
