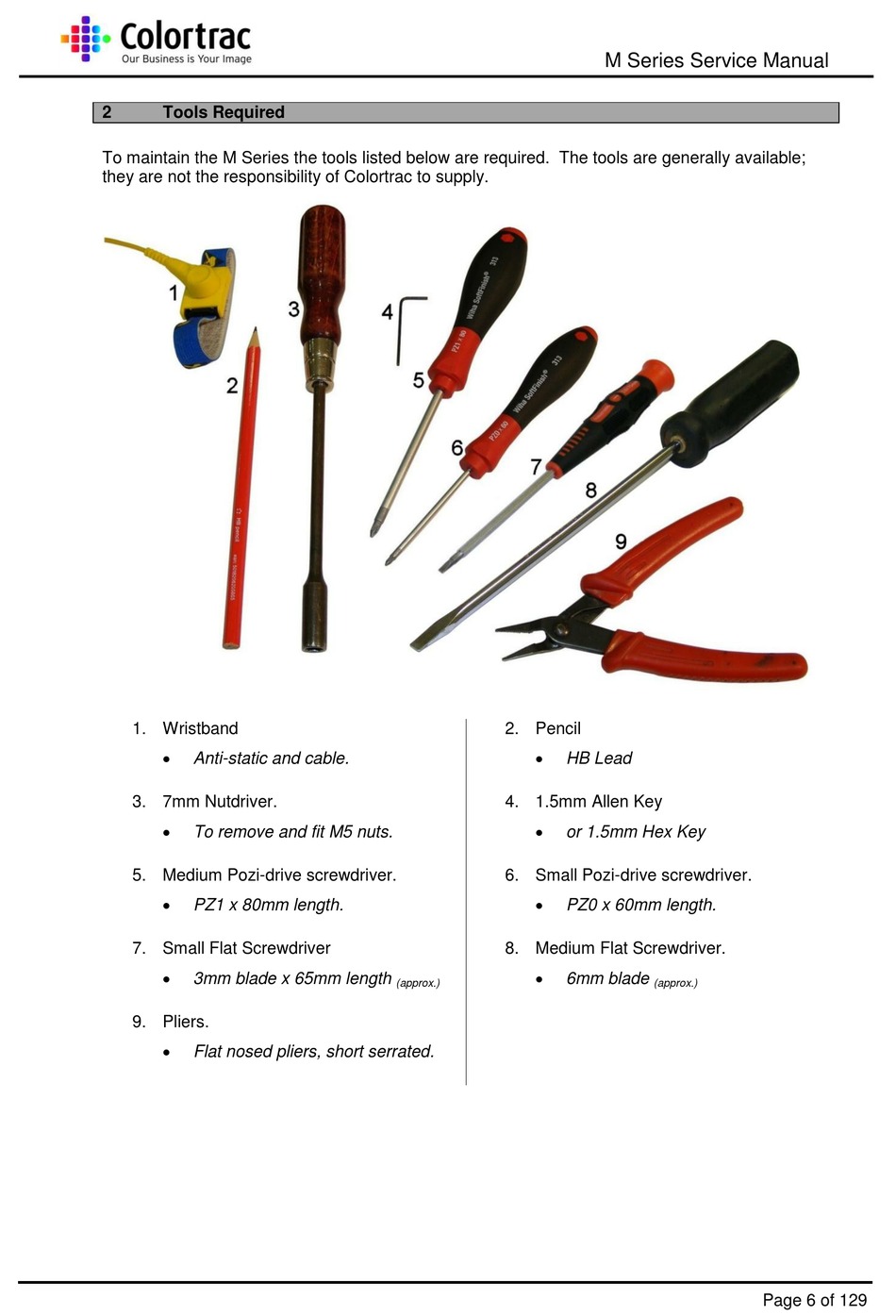

Tools Required

To maintain the M Series the tools listed below are required. The tools are generally available;
they are not the responsibility of Colortrac to supply.
1. Wristband

Anti-static and cable.
3. 7mm Nutdriver.

To remove and fit M5 nuts.
5. Medium Pozi-drive screwdriver.

PZ1 x 80mm length.
7. Small Flat Screwdriver

3mm blade x 65mm length
9. Pliers.

Flat nosed pliers, short serrated.
2. Pencil

4. 1.5mm Allen Key

6. Small Pozi-drive screwdriver.

8. Medium Flat Screwdriver.

(approx.)
M Series Service Manual
HB Lead
or 1.5mm Hex Key
PZ0 x 60mm length.
6mm blade
(approx.)
