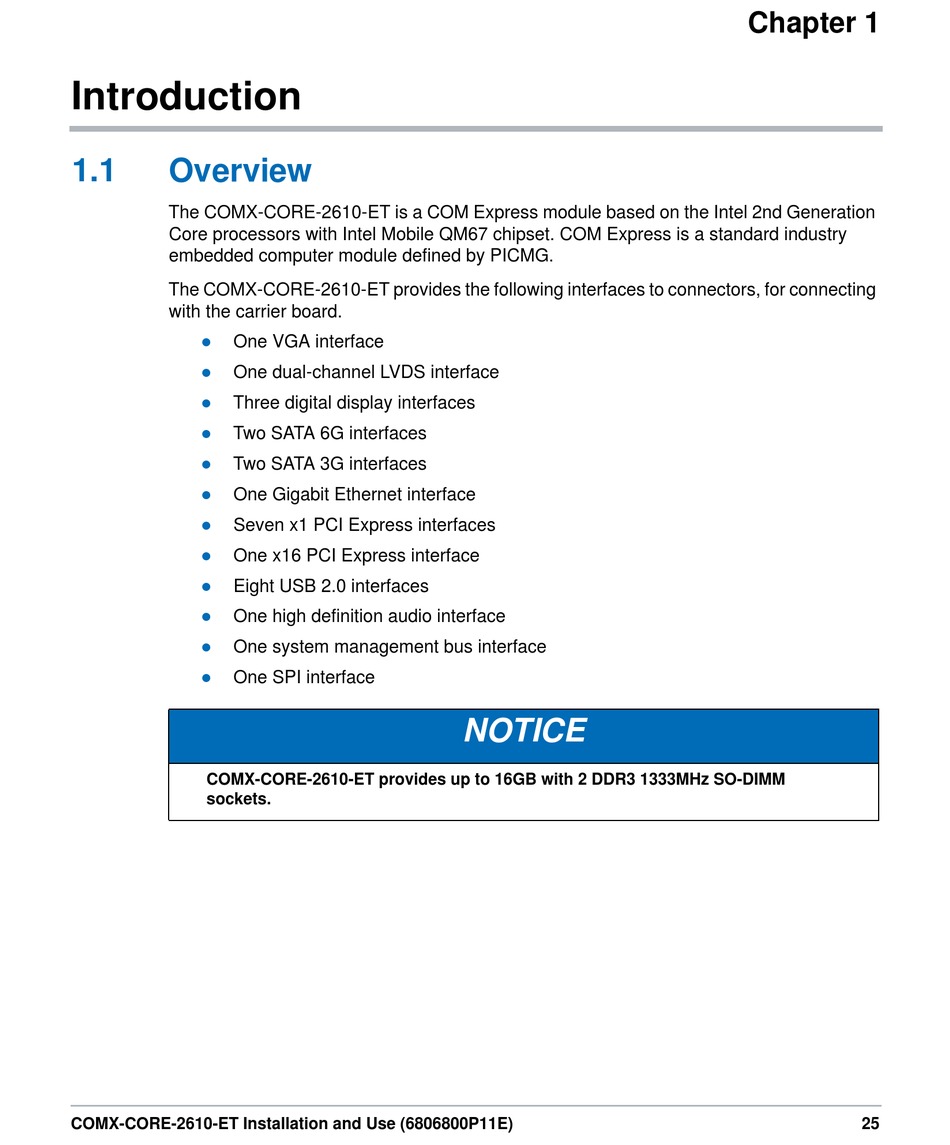

Introduction

1.1

Overview

The COMX-CORE-2610-ET is a COM Express module based on the Intel 2nd Generation
Core processors with Intel Mobile QM67 chipset. COM Express is a standard industry
embedded computer module defined by PICMG.
The COMX-CORE-2610-ET provides the following interfaces to connectors, for connecting
with the carrier board.
 One VGA interface
 One dual-channel LVDS interface
 Three digital display interfaces
 Two SATA 6G interfaces
 Two SATA 3G interfaces
 One Gigabit Ethernet interface
 Seven x1 PCI Express interfaces
 One x16 PCI Express interface
 Eight USB 2.0 interfaces
 One high definition audio interface
 One system management bus interface
 One SPI interface
COMX-CORE-2610-ET provides up to 16GB with 2 DDR3 1333MHz SO-DIMM
sockets.
COMX-CORE-2610-ET Installation and Use (6806800P11E)
NOTICE
Chapter 1
25
