4.10

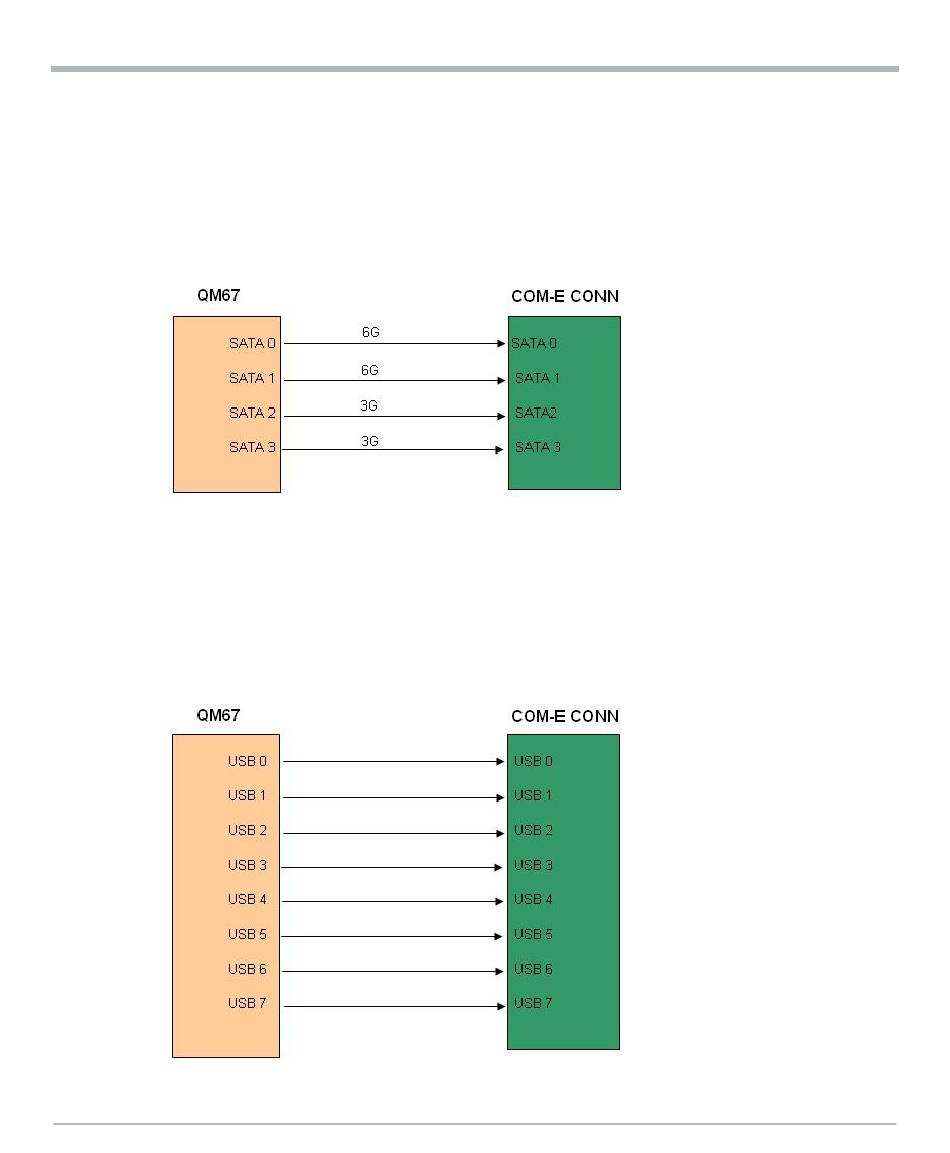

SATA Interface
The 4 SATA ports are routed to connector from QM67. Port 1 and Port 2 supports 6G SATA
interface, whereas Port 3 and Port 4 supports 3G SATA interface.
The power supply for SATA interface is provided by carrier board.
Figure 4-4
4.11
USB Interface
The QM67 can support up to 14 USB2.0 interfaces using UHCI or EHCI. Eight USB ports
are routed to connector for carrier board.
Figure 4-5
COMX-CORE-2610-ET Installation and Use (6806800P11E)
SATA Interface Connections
USB ports Connections
SATA Interface
59
