Installing and Removing COM Express Module to/from the Carrier Board

2.5

Installing and Removing COM Express Module

to/from the Carrier Board

This section provides the steps for installing the COM Express module assembly (with heat

spreader or heat sink assembly) to the carrier board and removing the COM Express

module from the carrier board.

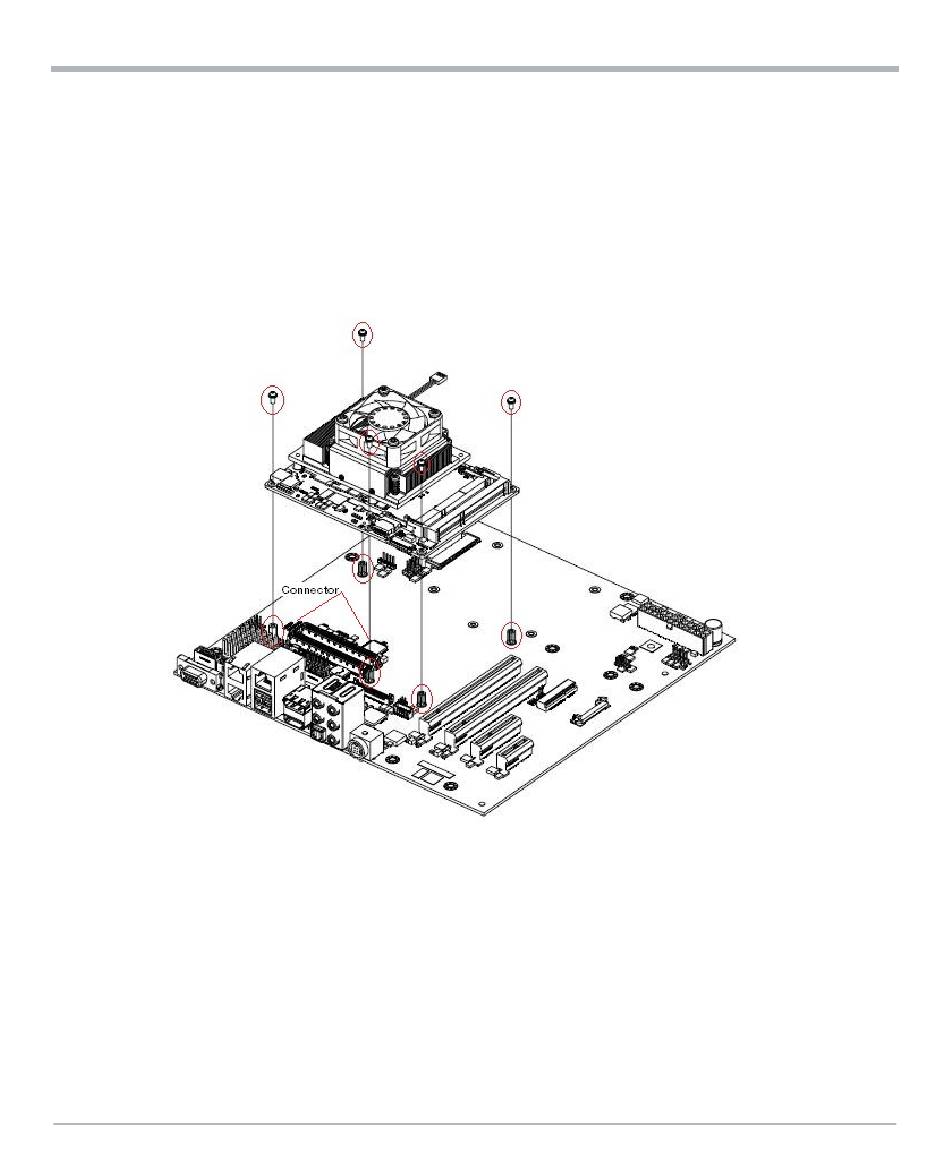

Figure 2-3

2.5.1

1. Line up the board-to-board connector of the COM Express module with the board-to-

board connector of the carrier board.

2. Make sure that the interconnectors are properly aligned and that the bottom of the

COM Express module has contact with the five standoffs on the carrier board.

3. From the top-side of the COM Express module assembly, locate the five COM Express

module mounting holes.

4. Use the screws to fasten the COM Express module assembly with the carrier board.

COMX-CORE-2610-ET Installation and Use (6806800P11E)

Installation and Removal
