REAR SHOCK ABSORBER ASSEMBLIES AND SWINGARM
EAS31227
REMOVING THE REAR SHOCK ABSORBER
ASSEMBLIES
1. Stand the vehicle on a level surface.
EWA13120
WARNING
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on the centerstand so that the
rear wheel is elevated.
EAS31228

REMOVING THE SWINGARM

1. Stand the vehicle on a level surface.
EWA13120
WARNING
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on the centerstand so that the
rear wheel is elevated.
2. Remove:
• Rear brake hose holder
• Rear brake caliper
ECA21830
NOTICE
Do not apply the brake lever when removing
the brake caliper.
EAS31229
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Rear shock absorber rod
Bends/damage → Replace the rear shock
absorber assembly.
• Rear shock absorber assembly
Oil leaks → Replace the rear shock absorber
assembly.
• Spring
Damage/wear → Replace the rear shock ab-
sorber assembly.
• Bushings
Damage/wear → Replace the rear shock ab-
sorber assembly.
• Bolts
Bends/damage/wear → Replace.
EAS31230

CHECKING THE SWINGARM

1. Check:
• Swingarm
Bends/cracks/damage → Replace.
2. Check:
• Circlip
• Oil seals
• Bearing
Damage/wear → Replace.
EAS31231

INSTALLING THE SWINGARM

1. Lubricate:
• Oil seal lips
Recommended lubricant
Lithium-soap-based grease

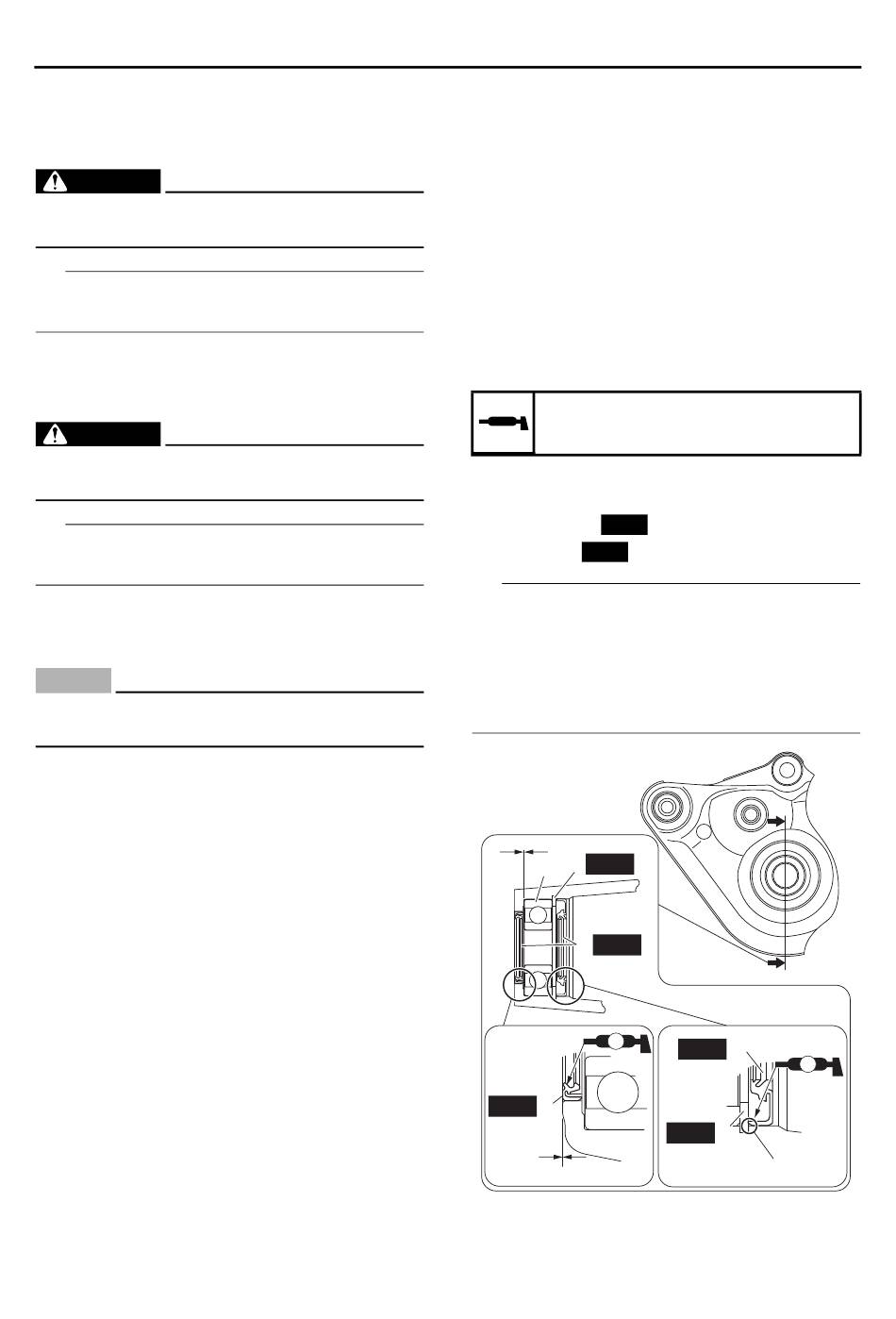

2. Assemble:
• Bearing "1"
• Oil seals "2"
• Circlip "3"
New
TIP
• Install the bearing until it is flush with the sur-
face "a" of the swingarm.
• Install the oil seal until it is flush with the sur-
face "b" of the swingarm.
• Install the oil seal until it is contact with the sur-
face "c" of the circlip.
3
a New
1
2
2
New
b
3. Install:
• Swingarm assembly "1"
• Spacer
4-92
New
New
LS
2
New
New
3
LS
c
