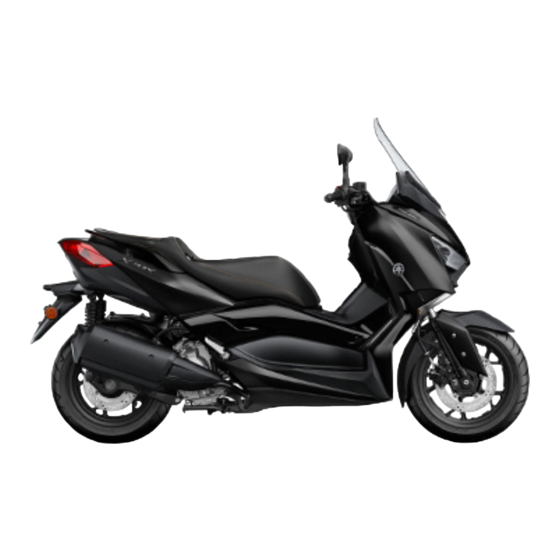

Yamaha XMAX Owner's Manual

Hide thumbs Also See for XMAX:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
XMAX
MOTORCYCLE
Read this manual carefully before oper-
ating this vehicle.
YP125RA
2DM-F8199-E3

Advertisement

Table of Contents
loading

Related Manuals for Yamaha XMAX

Summary of Contents for Yamaha XMAX

  • Page 1 OWNER’S MANUAL XMAX MOTORCYCLE Read this manual carefully before oper- ating this vehicle. YP125RA 2DM-F8199-E3...
  • Page 2 EAU81570 Declaration of Conformity: Hereby, YAMAHA MOTOR ELECTRONICS Co., Ltd declares that the radio equip- ment type, IMMOBILIZER, 37P-00 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following inter- net address: https://global.yamaha-motor.com/eu_doc/...
  • Page 3 If you have any further questions, do not hesitate to con- tact your Yamaha dealer. The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first! Yamaha continually seeks advancements in product design and quality. There-...
  • Page 4 Important manual information EAU63350 Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury haz- ards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 5: Table Of Contents

    Table of contents Safety information ......1-1 Periodic maintenance chart for the Further safe-riding points....1-5 emission control system....6-3 General maintenance and Description ........2-1 lubrication chart......6-4 Left view ..........2-1 Removing and installing panels ..6-7 Right view........2-2 Checking the spark plug....6-9 Controls and instruments....2-3 Engine oil ........
  • Page 6 Table of contents Scooter care and storage ....7-1 Matte color caution ......7-1 Care ..........7-1 Storage ........... 7-4 Specifications........8-1 Consumer information..... 9-1 Identification numbers....9-1 Diagnostic connectors....9-2 Vehicle data recording....9-2 Index..........10-1...

  • Page 7: Safety Information

    Safety information an accident or equipment damage. EAU1026B See page 4-1 for a list of pre-operation checks. Be a Responsible Owner  This scooter is designed to carry As the vehicle’s owner, you are re- the operator and a passenger. sponsible for the safe and proper oper- ...
  • Page 8 Safety information  This scooter is designed for on- • Know your skills and limits. Staying within your limits may road use only. It is not suitable for help you to avoid an accident. off-road use. • We recommend that you prac- tice riding your scooter where Protective Apparel there is no traffic until you have...
  • Page 9 Safety information engine exhaust. Deadly levels of car- The total weight of the operator, pas- bon monoxide can collect rapidly and senger, accessories and cargo must you can quickly be overcome and un- not exceed the maximum load limit. able to save yourself. Also, deadly lev- Operation of an overloaded vehicle els of carbon monoxide can linger for could cause an accident.
  • Page 10 Genuine not in any way reduce ground Yamaha accessories, which are avail- clearance or cornering clearance, able only from a Yamaha dealer, have limit suspension travel, steering been designed, tested, and approved travel or control operation, or ob- by Yamaha for use on your vehicle.

  • Page 11: Further Safe-Riding Points

    Safety information Aftermarket Tires and Rims EAU57600 Further safe-riding points The tires and rims that came with your  Be sure to signal clearly when scooter were designed to match the making turns. performance capabilities and to pro-  Braking can be extremely difficult vide the best combination of handling, on a wet road.

  • Page 12: Description

    Description EAU63371 Left view 1. Headlight (page 6-30) 2. Battery (page 6-27) 3. Main fuse (page 6-29) 4. Coolant reservoir cap (page 6-14) 5. Coolant level check window (page 6-14) 6. Rear storage compartment (page 3-20) 7. V-belt case air filter element (page 6-15) 8.

  • Page 13: Right View

    Description EAU63391 Right view 1. Grab bar (page 5-3) 2. Seat (page 3-19) 3. Fuel tank cap (page 3-16) 4. Fuses (page 6-29) 5. Centerstand (page 6-25)

  • Page 14: Controls And Instruments

    Description EAU63401 Controls and instruments SELECT RESET 1000 r/min 1. Rear brake lever (page 3-15) 2. Left handlebar switches (page 3-13) 3. Multi-function meter unit (page 3-6) 4. Right handlebar switches (page 3-13) 5. Front brake lever (page 3-14) 6. Throttle grip (page 6-17) 7.

  • Page 15: Instrument And Control Functions

     Do not grind any key or alter its cess, take the vehicle along with all shape. three keys to a Yamaha dealer to have  Do not disassemble the plastic them re-registered. Do not use the key part of any key.

  • Page 16: Main Switch/Steering Lock

    Instrument and control functions  Keep the standard keys as well EAU10474 Main switch/steering lock as keys of other immobilizer systems away from this vehi- cle’s code re-registering key.  Keep other immobilizer system keys away from the main switch as they may cause signal inter- ference.
  • Page 17 Instrument and control functions EWA10062 ECA20760 NOTICE WARNING Never turn the key to “OFF” or Using the hazard or turn signal lights “LOCK” while the vehicle is moving. for an extended length of time may Otherwise the electrical systems will cause the battery to discharge.

  • Page 18: Indicator Lights And Warning Lights

    This warning light comes on if a prob- km/h lem is detected in the electrical circuit monitoring the engine. If this occurs, have a Yamaha dealer check the vehi- 2 3 4 5 6 cle. ZAUM1098 1. Turn signal indicator lights “...
  • Page 19 4. If one or both of the standard keys do not start the engine, take the EAUM3621 Immobilizer system indicator vehicle and all 3 keys to a Yamaha light “ ” dealer to have the standard keys When the key is turned to “OFF” and re-registered.

  • Page 20: Multi-Function Meter Unit

    Instrument and control functions  When the key is turned to “ON”, all EAUM3831 Multi-function meter unit display segments of the multi- EWA12423 function meter unit will momen- WARNING tarily appear in order to test the Be sure to stop the vehicle before electrical circuit.
  • Page 21  a time tripmeter (which shows the repeatedly. If this occurs, have a elapsed riding time since last set Yamaha dealer check the vehicle. to zero)
  • Page 22 Instrument and control functions  a fuel reserve tripmeter (which shows the distance traveled since  The display cannot be changed the fuel level warning light came back to “F Trip” after it has been reset.  an oil change tripmeter (which ...
  • Page 23 ZAUM1138 3. If the oil change indicator does not 1. “RESET” button come on, have a Yamaha dealer 4. Release the “RESET” button, and check the electrical circuit. the V-belt trip value will reset to zero.
  • Page 24 L/100 km → Cons__._km/L or L/100 onds and then goes off. km → Ave → Air 3. If the V-belt replacement indicator does not come on, have a Yamaha dealer check the electrical circuit. For the UK: If the display units have been set to Multi-function display miles, pushing the “INFO”...
  • Page 25 “H until the vehicle has traveled 1 km (0.6 BATT” (high battery voltage) or “L mi). BATT” (low battery voltage) appears, have a Yamaha dealer check the bat- Instantaneous fuel consumption dis- tery. play Average fuel consumption display...
  • Page 26 Instrument and control functions  “L/100 km” is the amount of fuel Warning message function necessary to travel 100 km under When a vehicle irregularity, road or ser- current riding conditions. vice condition has been detected, in  “MPG” is the distance that can be addition to any corresponding warning traveled on 1.0 Imp.gal of fuel un- lights or indicators, the following warn-...

  • Page 27: Handlebar Switches

    Instrument and control functions EAU1234K EAU12461 Handlebar switches Turn signal switch “ ” To signal a right-hand turn, push this Left switch to “ ”. To signal a left-hand turn, push this switch to “ ”. When released, the switch returns to the cen- ter position.

  • Page 28: Front Brake Lever

    Instrument and control functions ECA10062 EAU12902 Front brake lever NOTICE Do not use the hazard lights for an extended length of time with the en- gine not running, otherwise the bat- tery may discharge. EAUM3720 Trip/info switch “TRIP/INFO” This switch is used to make setting and display changes in the multi-function meter unit.

  • Page 29: Rear Brake Lever

    Instrument and control functions EAU12952 EAU66680 Rear brake lever The Yamaha ABS (Anti-lock Brake System) features a dual electronic con- trol system, which acts on the front and rear brakes independently. Operate the brakes with ABS as you would conventional brakes. If the ABS is activated, a pulsating sensation may be felt at the brake levers.

  • Page 30: Fuel Tank Cap

    To open the fuel tank cap when the ABS is operating. How- ever, special tools are required, so please consult your Yamaha deal- ECA20100 NOTICE Be careful not to damage the wheel sensor or wheel sensor rotor; other-...

  • Page 31: Fuel

    1. Fuel tank filler tube as well as to the exhaust system. 2. Maximum fuel level Your Yamaha engine has been de- signed to use premium unleaded gas- oline with a research octane number of 3-17...

  • Page 32: Catalytic Converters

    10% (E10). Gas- grass or other materials that ohol containing methanol easily burn. recommended by Yamaha because it  Park the vehicle in a place can cause damage to the fuel system where pedestrians or children or vehicle performance problems.

  • Page 33: Seat

    Instrument and control functions EAU13933 Seat Make sure that the seat is properly se- cured before riding. To open the seat 1. Place the scooter on the center- stand. 2. Insert the key into the main switch, and then turn it counterclockwise to “OPEN”.

  • Page 34: Storage Compartments

    Instrument and control functions EAUM3002 Storage compartments Front storage compartment A ZAUM1018 1. Open. 2. Storage compartment opening lever 3. Lid ZAUM1017 To close the storage compartment, 1. Open. push the lid into the original position. 2. Storage compartment opening lever WARNING! Do not store heavy items 3.

  • Page 35: Adjusting The Shock Absorber Assemblies

    Instrument and control functions susceptible to heat, consum- EAU14893 Adjusting the shock absorber ables or flammable items inside assemblies  To avoid humidity from spread- EWA10211 WARNING ing through the storage com- Always adjust both shock absorber partment, wrap wet articles in a assemblies equally, otherwise poor plastic bag before storing them handling and loss of stability may re-...

  • Page 36: Sidestand

    Therefore, check this system regularly and have a Yamaha dealer repair it if it does not function properly. 3-22...

  • Page 37: Ignition Circuit Cut-Off System

    Instrument and control functions EAUM3870 Ignition circuit cut-off system The ignition circuit cut-off system (comprising the sidestand switch and brake light switches) has the following functions.  It prevents starting when the side- stand is up, but neither brake is applied.
  • Page 38 1. Move the sidestand down. • If a malfunction is noted, have a 2. Turn the key on. Yamaha dealer check the system 3. Keep the front or rear brake applied. before riding. 4. Push the start switch.

  • Page 39: For Your Safety - Pre-Operation Checks

    Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:...
  • Page 40 • Tighten if necessary. Instruments, lights, • Check operation. — • Correct if necessary. signals and switches • Check operation of ignition circuit cut-off system. • If system is not working correctly, have Yamaha dealer 3-22 Sidestand switch check vehicle.

  • Page 41: Operation And Important Riding Points

    This model is equipped with a lean an- there is a control or function you do not gle sensor to stop the engine in case of understand, ask your Yamaha dealer. a turnover. To start the engine after a EWA10272...

  • Page 42: Starting The Engine

    Operation and important riding points 2. Close the throttle completely. EAUM3850 Starting the engine 3. Start the engine by pushing the ECA10251 start switch while applying the NOTICE front or rear brake. See page 5-5 for engine break-in in- structions prior to operating the ve- hicle for the first time.

  • Page 43: Starting Off

    Operation and important riding points EAU45093 EAU16782 Starting off Acceleration and deceleration 1. While pulling the rear brake lever with your left hand and holding the grab bar with your right hand, push the scooter off the center- stand. The speed can be adjusted by opening and closing the throttle.

  • Page 44: Braking

    Operation and important riding points EAU16794 Front Braking EWA10301 WARNING  Avoid braking hard or suddenly (especially when leaning over to one side), otherwise the scooter may skid or overturn.  Railroad crossings, streetcar rails, iron plates on road con- struction sites, and manhole Rear covers become extremely slip-...

  • Page 45: Tips For Reducing Fuel Consumption

    The vehicle can now be operated nor- mally. ECA10311 NOTICE  Keep the engine speed out of the tachometer red zone.  If any engine trouble should oc- cur during the engine break-in period, immediately have a Yamaha dealer check the vehi- cle.

  • Page 46: Parking

    Operation and important riding points EAU17214 Parking When parking, stop the engine, and then remove the key from the main switch. EWA10312 WARNING  Since the engine and exhaust system can become very hot, park in a place where pedestri- ans or children are not likely to touch them and be burned.

  • Page 47: Periodic Maintenance And Adjustment

    Con- considered as a general guide under sult a Yamaha dealer for proper normal riding conditions. However, de- maintenance intervals. pending on the weather, terrain, geo-...

  • Page 48: Owner's Tool Kit

    If you do not have the tools or experi- ence required for a particular job, have a Yamaha dealer perform it for you.

  • Page 49: Periodic Maintenance Chart For The Emission Control System

     From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).  Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills. EAU71060...

  • Page 50: General Maintenance And Lubrication Chart

    X 1000 mi 10.5 14 • Perform dynamic inspection us- Diagnostic system √ √ √ √ √ √ ing Yamaha diagnostic tool. check • Check the error codes. √ √ 2 * Air filter element • Replace. Air filter case √ √...
  • Page 51 Periodic maintenance and adjustment ODOMETER CHECK OR READING MAINTENANCE JOB ITEM X 1000 km X 1000 mi 10.5 14 Front brake lever √ √ √ √ √ • Lubricate with silicone grease. pivot shaft Rear brake lever √ √ √ √...
  • Page 52 Periodic maintenance and adjustment ODOMETER CHECK OR READING MAINTENANCE JOB ITEM X 1000 km X 1000 mi 10.5 14 • Check operation and free play. • Adjust the throttle cable free Throttle grip hous- √ √ √ √ √ 27 * play if necessary.

  • Page 53: Removing And Installing Panels

    Periodic maintenance and adjustment EAU18773 Removing and installing pan- The panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time a panel needs to be removed and installed. ZAUM1046 1.
  • Page 54 Periodic maintenance and adjustment Panel C To remove the panel 1. Remove the quick fastener, and then pull the under cowling off as shown. The quick fastener is removed by pushing the center pin in with a screw- ZAUM1045 1. Panel C driver, and then pulling the fastener 2.

  • Page 55: Checking The Spark Plug

    If the spark plug shows a distinctly dif- ferent color, the engine could be oper- ating improperly. Do not attempt to diagnose such problems yourself. In- stead, have a Yamaha dealer check ZAUM1040 the vehicle. 1. Storage compartment 2. Bolt 2.

  • Page 56: Engine Oil

    Periodic maintenance and adjustment EAUM3332 Engine oil The engine oil level should be checked before each ride. In addition, the oil must be changed at the intervals spec- ified in the periodic maintenance and lubrication chart and when the service indicator light comes on.
  • Page 57 Periodic maintenance and adjustment 5. Insert the dipstick into the oil filler hole, and then tighten the oil filler Skip steps 5–9 if the oil filter element is cap. not being replaced. 5. Remove the oil filter element cover To change the engine oil (with or by removing the bolts.
  • Page 58 Periodic maintenance and adjustment addition, do not use oils labeled Tightening torque: “ENERGY CONSERVING II” or Oil filter cover bolt: higher. 10 N·m (1.0 kgf·m, 7.2 lb·ft)  Be sure no foreign material en- ters the crankcase. Make sure that the O-ring is properly 12.

  • Page 59: Final Transmission Oil

    The final transmission case must be checked for oil leakage before each ride. If any leakage is found, have a Yamaha dealer check and repair the scooter. In addition, the final transmis- sion oil must be changed as follows at the intervals specified in the periodic maintenance and lubrication chart.

  • Page 60: Coolant

     Make sure that the vehicle is posi- added to the coolant, have a tioned straight up when checking Yamaha dealer check the anti- the coolant level. A slight tilt to the freeze content of the coolant as side can result in a false reading.

  • Page 61: Air Filter And V-Belt Case Air Filter Elements And Check Hoses

    Have a tenance and lubrication chart. Service Yamaha dealer change the coolant. the air filter elements more frequently if WARNING! Never attempt to remove you are riding in unusually wet or dusty the radiator cap when the engine is areas.
  • Page 62 Periodic maintenance and adjustment Left ZAUM0706 1. V-belt case air filter element ZAUM1126 1. Air filter check hose 3. Check the air filter element for 2. If dirt or water is visible, remove damage and replace it if neces- the hose, clean it, and then install sary.

  • Page 63: Checking The Throttle Grip Free Play

    Measure the throttle grip free play as and/or engine noise. To prevent this shown. from occurring, the valve clearance must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart. 1. Throttle grip free play Throttle grip free play: 3.0–5.0 mm (0.12–0.20 in)

  • Page 64: Tires

    The tires must be checked before each ride. If the center tread depth reaches the specified limit, if the tire has a nail or glass fragments in it, or if the side- wall is cracked, have a Yamaha dealer replace the tire immediately. 6-18...
  • Page 65 After extensive tests, only the tires list- ed below have been approved for this EWA10472 model by Yamaha. WARNING  Have a Yamaha dealer replace Front tire: excessively worn tires. Besides Size: being illegal, operating the vehi- 120/70-15 M/C 56S(MICHELIN)

  • Page 66: Cast Wheels

    ZAUM1050 1. No brake lever free play There should be no free play at the brake lever ends. If there is free play, have a Yamaha dealer inspect the brake system. EWA14212 WARNING A soft or spongy feeling in the brake lever can indicate the presence of air in the hydraulic system.

  • Page 67: Checking The Front And Rear Brake Pads

    To check the brake pad wear, check the wear indicator grooves. If a brake pad has worn to the point that the wear indicator grooves have almost disap- peared, have a Yamaha dealer replace the brake pads as a set. 6-21...

  • Page 68: Checking The Brake Fluid Level

    If a brake pad has worn to the point that the wear Rear brake indicator groove has almost disap- peared, have a Yamaha dealer replace the brake pads as a set. ZAUM1032 1. Minimum level mark...

  • Page 69: Changing The Brake Fluid

     Clean the filler cap before re- EAU22733 Changing the brake fluid moving. Use only DOT 4 brake Have a Yamaha dealer change the fluid from a sealed container. brake fluid at the intervals specified in  Use only the specified brake flu- the periodic maintenance and lubrica- id;...

  • Page 70: Checking And Lubricating The Cables

    Yamaha dealer at the intervals cated if necessary. If a cable is specified in the periodic maintenance damaged or does not move smoothly, chart.

  • Page 71: Lubricating The Front And Rear Brake Levers

    Silicone grease WARNING If the centerstand or sidestand does not move up and down smoothly, have a Yamaha dealer check or re- pair it. Otherwise, the centerstand or sidestand could contact the ground and distract the operator, resulting in a possible loss of control.

  • Page 72: Checking The Front Fork

    If any free there is no danger of it falling play can be felt, have a Yamaha over. dealer check or repair the steer- [EWA10752] 2.

  • Page 73: Checking The Wheel Bearings

    (See page 6-7.) hub or if the wheel does not turn This model is equipped with a VRLA smoothly, have a Yamaha dealer (Valve Regulated Lead Acid) battery. check the wheel bearings. There is no need to check the electro- lyte or to add distilled water.
  • Page 74 Storing a discharged battery can cause permanent battery damage. To charge the battery Have a Yamaha dealer charge the bat- tery as soon as possible if it seems to have discharged. Keep in mind that the battery tends to discharge more quick- ly if the vehicle is equipped with op- tional electrical accessories.

  • Page 75: Replacing The Fuses

    B. (See page 6-7.) The main fuse, which is in a different and hard-to-reach location, must be replaced by a Yamaha dealer. ZAUM1036 1. Fuse box 1 2 3 4 5 6 ZAUM1058 1.

  • Page 76: Replacing A Headlight Bulb

    Main fuse: This model is equipped with halogen 30.0 A bulb headlights. If a headlight bulb Ignition fuse: burns out, have a Yamaha dealer re- 10.0 A Signaling system fuse: place it and, if necessary, adjust the 10.0 A headlight beam.

  • Page 77: Auxiliary Light Bulbs

    Tail/brake light If an auxiliary light does not come on, This model is equipped with an LED- have a Yamaha dealer check the elec- type tail/brake light. trical circuit or replace the bulb. If the tail/brake light does not come on, have a Yamaha dealer check it.

  • Page 78: Front Turn Signal Light

    Front turn signal light Replacing a rear turn signal If a front turn signal light does not light bulb come on, have a Yamaha dealer check 1. Place the scooter on the center- its electrical circuit or replace the bulb. stand.

  • Page 79: Replacing The License Plate Light Bulb

    Periodic maintenance and adjustment EAUM2203 Replacing the license plate light bulb 1. Remove the socket (together with the bulb) by pulling it out. ZAUM1039 1. Turn signal light bulb 2. Turn signal light bulb socket 7. Install the socket (together with the bulb) by turning it clockwise.

  • Page 80: Troubleshooting

    However, should your scooter re- quire any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the scooter prop- erly.

  • Page 81: Troubleshooting Charts

    Check the vehicle. compression. 4. Compression The engine does not start. There is compression. Have a Yamaha dealer check the vehicle. Operate the electric starter. There is no Have a Yamaha dealer check the vehicle. compression. 6-35...
  • Page 82 Start the engine. If the engine overheats again, The coolant level is have a Yamaha dealer check and repair the cooling system. If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 83: Scooter Care And Storage

    Rust and corrosion can develop even if matte colored finished parts. Be high-quality components are used. A sure to consult a Yamaha dealer for rusty exhaust pipe may go unnoticed advice on what products to use be- on a car, however, it detracts from the fore cleaning the vehicle.
  • Page 84 Scooter care and storage structed. Also, thoroughly rinse compounds for plastic may the area off with water, immedi- leave scratches on the wind- ately dry it, and then apply a cor- shield. Test the product on a rosion protection spray. small hidden part of the wind- ...
  • Page 85 3. To prevent corrosion, it is recom- mended to apply a corrosion pro- tection spray metal,  Consult a Yamaha dealer for ad- including chrome- and nickel-plat- vice on what products to use. ed, surfaces.  Washing, rainy weather or humid 4.

  • Page 86: Storage

    Scooter care and storage head so that the electrodes are EAU36564 Storage grounded. (This will limit spark- ing during the next step.) Short-term d. Turn the engine over several Always store your scooter in a cool, dry times with the starter. (This will place and, if necessary, protect it coat the cylinder wall with oil.) against dust with a porous cover.
  • Page 87 Scooter care and storage Make any necessary repairs before storing the scooter.

  • Page 88: Specifications

    Specifications Dimensions: 10 30 50 70 90 110 130 ˚F Overall length: 2160 mm (85.0 in) SAE 10W-30 Overall width: SAE 10W-40 790 mm (31.1 in) SAE 10W-50 Overall height: 1385 mm (54.5 in) SAE 15W-40 Seat height: SAE 20W-40 785 mm (30.9 in) SAE 20W-50 Wheelbase:...
  • Page 89 Specifications Spark plug gap: Loading condition: 0.7–0.8 mm (0.028–0.031 in) 90–181 kg (198–399 lb) Clutch: Loading condition: 90 kg - maximum load Clutch type: Front: Dry, centrifugal automatic 210 kPa (2.10 kgf/cm², 30 psi) Transmission: Rear: Primary reduction ratio: 250 kPa (2.50 kgf/cm², 36 psi) (1.000) Front wheel: Final drive:...
  • Page 90 Specifications Ignition system: ECU fuse: 10.0 A Charging system: ABS control unit fuse: AC magneto 10.0 A Battery: ABS motor fuse: 30.0 A Model: ABS solenoid fuse: GT9B-4 20.0 A Voltage, capacity: Backup fuse: 12 V, 8.0 Ah 10.0 A Headlight: Bulb type: Halogen bulb...

  • Page 91: Consumer Information

    Record the information on this label in the space provided. This information will be needed when order- ZAUM0683 ing spare parts from a Yamaha dealer. 1. Vehicle identification number The vehicle identification number is stamped into the frame.

  • Page 92: Diagnostic Connectors

    The ABS and Fuel Injection diagnostic mance data connectors are located as shown.  Fuel-injection and emission-relat- ed data Yamaha will not disclose this data to a third party except:  With the consent of the vehicle owner  Where obligated by law ...

  • Page 93: Index

    Index ABS ............3-15 Identification numbers ......9-1 ABS warning light........3-4 Ignition circuit cut-off system ....3-23 Acceleration and deceleration....5-3 Immobilizer system .........3-1 Air filter and V-belt case air filter Immobilizer system indicator light ..3-5 elements ..........6-15 Indicator lights and warning lights ..3-4 Auxiliary light bulbs ......
  • Page 94 Index Valve clearance........6-17 Vehicle identification number ....9-1 Wheel bearings, checking.....6-27 Wheels ..........6-20 10-2...
