For optimal RF performance, ensure the copper cut out on the top layer under the RF-BG pin (pin 31) is as
shown in Figure 10-3.
Copyright © 2021 Texas Instruments Incorporated
Copyright © 2017, Texas Instruments Incorporated

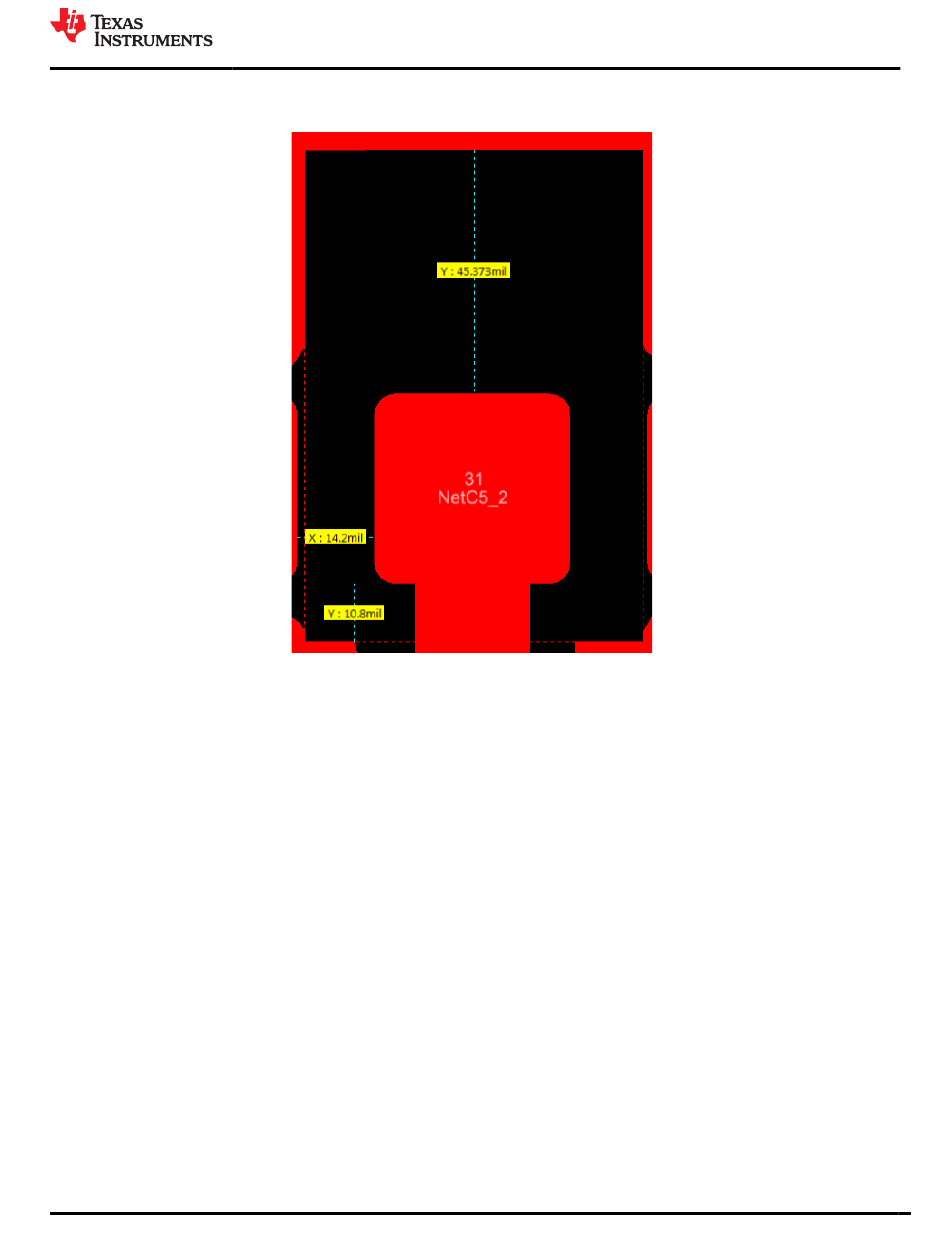

Figure 10-3. Top Layer Copper Pullback on RF Pads
