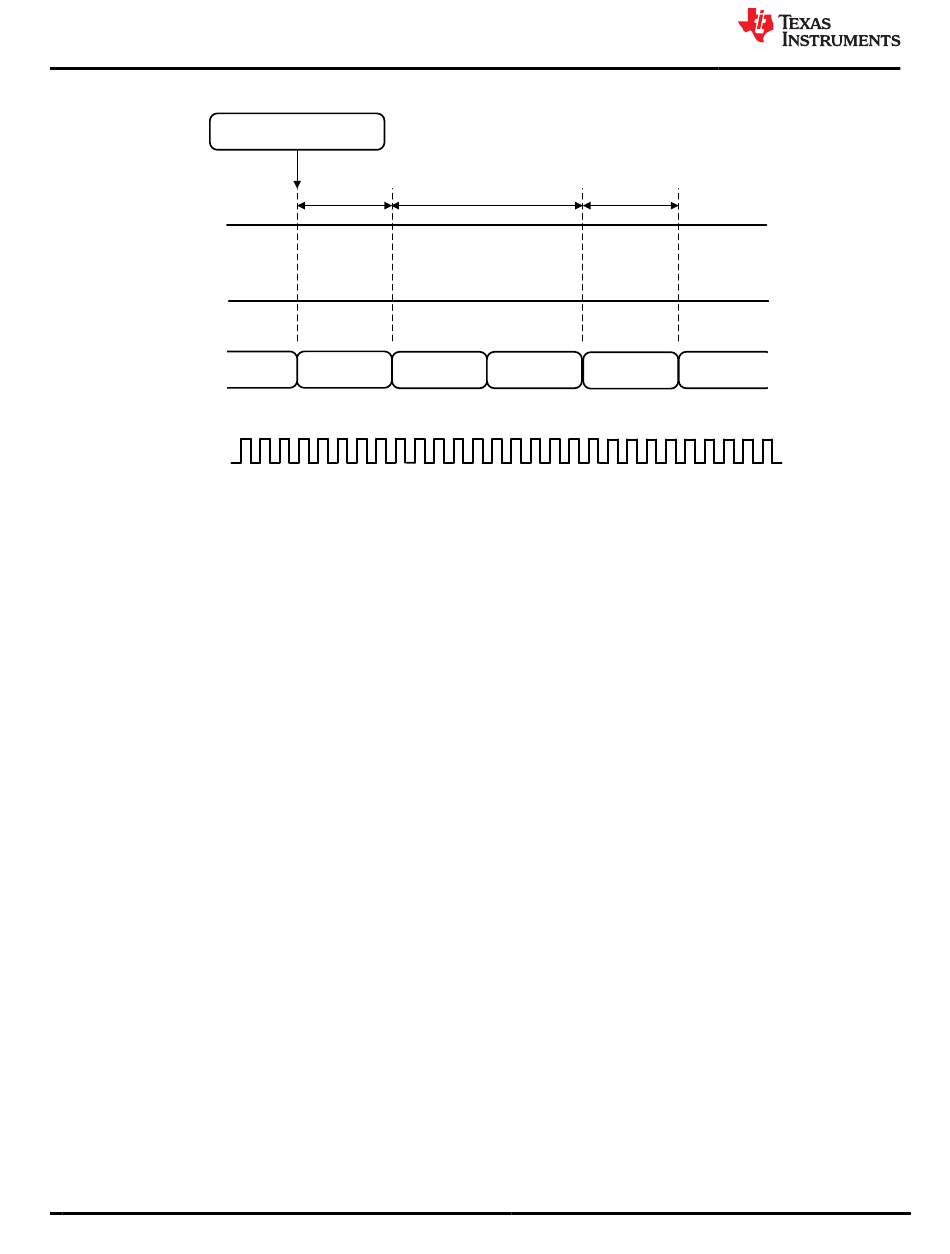

Figure 8-7 shows the timing diagram for wake up from the hibernate state.
Application software requests
VBAT
nRESET
STATE
32-kHz
RTC CLK
8.14.5 Peripherals Timing
This section describes the peripherals that are supported by the CC3220MODx and CC3220MODAx modules,
as follows:
• SPI
• I2S
• GPIOs
2
• I C
• IEEE 1149.1 JTAG
• ADC
• Camera parallel port
• External Flash
• UART
• SD Host
• Timers
8.14.5.1 SPI
8.14.5.1.1 SPI Master
The CC3220MODx and CC3220MODAx microcontroller includes one SPI module, which can be configured as
a master or slave device. The SPI includes a serial clock with programmable frequency, polarity, and phase;
a programmable timing control between chip select and external clock generation; and a programmable delay
before the first SPI word is transmitted. Slave mode does not include a dead cycle between two successive
words.
