CC3120 SimpleLink™ Wi-Fi
The CC3120 device is part of the SimpleLink™ microcontroller (MCU) platform which consists of Wi-Fi
Bluetooth
low energy, Sub-1 GHz and host MCUs. All share a common, easy-to-use development
®
environment with a single core software development kit (SDK) and rich tool set. A one-time integration of
the SimpleLink platform lets you add any combination of devices from the portfolio into your design. The
ultimate goal of the SimpleLink platform is to achieve 100 percent code reuse when your design
requirements change. For more information, visit www.ti.com/simplelink.
The SimpleLink Wi-Fi CC3120 wireless network processor from Texas Instruments™ provides users the
flexibility to add Wi-Fi to any MCU. This user's guide explains the various configurations of the CC3120
BoosterPack™ Plug-In Module.
...................................................................................................................
1
1.1
1.2
1.3
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
3
3.1
3.2
3.3
3.4
4
4.1
5
5.1
5.2
5.3
5.4
(1)
SimpleLink, Texas Instruments, BoosterPack, Internet-on-a chip, LaunchPad, MSP432 are trademarks of Texas Instruments.
(2)
Bluetooth is a registered trademark of Bluetooth SIG.
(3)
Macronix is a trademark of Macronix International Co., Ltd.
(4)
Wi-Fi is a registered trademark of Wi-Fi Alliance.
(5)
All other trademarks are the property of their respective owners.
SWRU457A - February 2017 - Revised August 2018
Submit Documentation Feedback
.....................................................................................................
....................................................................................................
..................................................................................
.......................................................................................................
.......................................................................................................
.................................................................................................
.................................................................................................................
............................................................................................................
..................................................................................
.....................................................................................
...........................................................................................
..........................................................................................
...................................................................................
......................................................................................................
........................................................................................................
............................................................................................................
............................................................................................
.................................................................................................
Copyright © 2017-2018, Texas Instruments Incorporated
SWRU457A - February 2017 - Revised August 2018
®
BoosterPack™ Plug-In
Module and IoT Solution
Contents
.............................................................................
............................................................................
...........................................................
...............................................................
........................................................
®
CC3120 SimpleLink™ Wi-Fi
BoosterPack™ Plug-In Module and IoT
User's Guide
,
®
2
2
3
3
4
5
5
6
9
11
12
13
14
14
16
16
17
17
18
18
18
18
19
19
1
Solution
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments SimpleLink Wi-Fi BoosterPack CC3120
Summary of Contents for Texas Instruments SimpleLink Wi-Fi BoosterPack CC3120
-
Page 1: Table Of Contents
SimpleLink platform is to achieve 100 percent code reuse when your design requirements change. For more information, visit www.ti.com/simplelink. The SimpleLink Wi-Fi CC3120 wireless network processor from Texas Instruments™ provides users the flexibility to add Wi-Fi to any MCU. This user's guide explains the various configurations of the CC3120 BoosterPack™... -
Page 2: Introduction
For changes across the various revisions of the board, see Section 5.3. ® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated... -
Page 3: What Is Included

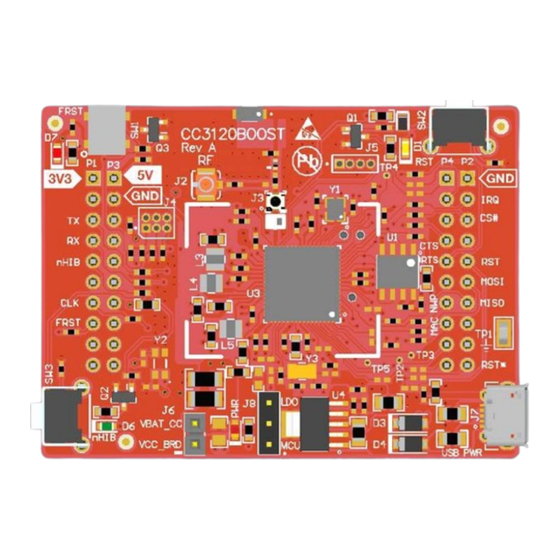

Introduction www.ti.com Copyright © 2017, Texas Instruments Incorporated Figure 1. CC3120BOOST Board What is Included • One CC3120BOOST board • One micro USB cable • One quick start guide FCC/IC Regulatory Compliance The CC3120 SimpleLink Wi-Fi and IoT Solution BoosterPack Hardware is tested for and found to be in compliance with R&TTE and FCC regulations regarding unlicensed intentional radiators. -
Page 4: Hardware Description
Hibernate (Power Only) Button Current Power Measurement Select Copyright © 2017, Texas Instruments Incorporated Figure 2. CC3120BOOST Front Side ® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback... -
Page 5: Block Diagram
32-kHz 40-MHz buttons FRST Crystal Crystal FRST LEDs Copyright © 2017, Texas Instruments Incorporated Figure 3. CC3120 Block Diagram Hardware Features • Two 20-pin stackable connectors • Onboard chip antenna with option for U.FL-based conducted testing • Power from onboard LDO using USB or 3.3 V from MCU LaunchPad •... -
Page 6: Connector And Jumper Descriptions
U.FL connector for conducted testing in the lab. Using this requires an ECO be made to RF test the board by swapping two resistors. ® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated... - Page 7 SPI_CS P1.4 UART1_RX P2.4 UNUSED P1.5 nHIB P2.5 nRESET P1.6 UNUSED P2.6 SPI_MOSI SWRU457A – February 2017 – Revised August 2018 ® CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
- Page 8 CC3120. For the SPI lines, the CC3120 device always acts like a slave. ® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
-
Page 9: Power
LDO input, as shown in Figure Figure 5. 3.3-V Power From MCU LaunchPad Kit SWRU457A – February 2017 – Revised August 2018 ® CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Submit Documentation Feedback Solution Copyright © 2017–2018, Texas Instruments Incorporated... - Page 10 Hardware Description www.ti.com Feed Power Here Copyright © 2017, Texas Instruments Incorporated Figure 6. Feed USB on the BoosterPack Module (LaunchPad Kit Cannot Source 5 V on 20-Pin Connector) 2.4.2 Onboard LDO Power Supply On some LaunchPad kits, the 3.3 V cannot source the 350-mA peak current needed for the CC3120BOOST board.
-
Page 11: Measure The Cc3120 Current Draw
Hardware Description www.ti.com USB PWR Copyright © 2017, Texas Instruments Incorporated Figure 8. Feed USB on the BoosterPack Module (Always While Using the Onboard LDO) Measure the CC3120 Current Draw 2.5.1 Low Current Measurement (Hibernate and LPDS) To measure the current draw of the CC3120 device, and the serial flash, a jumper labeled J6 is provided on the board. -
Page 12: Clocking
® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated... -
Page 13: Performing Conducted Testing
The use of this connector requires a rework to be performed, which involves swapping the position of a resistor, as shown in Figure 11 Figure U.FL Connector Murata Connector Copyright © 2017, Texas Instruments Incorporated Figure 11. Connectors on the Board Resistor Mounted for RF Signal towards Resistor U.FL U.FL antenna... -
Page 14: Connecting To The Pc Using Cc31Xxemuboost Board
3.1.2 Hardware Details Figure 13 shows the CC31XXEMUBOOST board. Copyright © 2017, Texas Instruments Incorporated Figure 13. CC31XXEMUBOOST Board The CC31XXEMUBOOST board has two FTDI ICs to enumerate multiple COM and D2XX ports. Table 6 gives the details of the ports. - Page 15 SDK release in the following folder: [Install-Path]\CC3120-sdk\tools\cc31xx_board_drivers\. The install path is usually C:\ti\CC3120SDK. SWRU457A – February 2017 – Revised August 2018 ® CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Submit Documentation Feedback Solution Copyright © 2017–2018, Texas Instruments Incorporated...
-
Page 16: Connecting The Boards
The jumper shall be placed so that it is near the edge of the PCB. J6 (short) No current measurement ® SWRU457A – February 2017 – Revised August 2018 CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Solution Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated... -
Page 17: Jumper Settings On The Cc31Xxemuboost Board
USB cable on the LaunchPad kit is also required. Figure 16. CC3120BP Connected to MSP432™ LaunchPad SWRU457A – February 2017 – Revised August 2018 ® CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Submit Documentation Feedback Solution Copyright © 2017–2018, Texas Instruments Incorporated... -
Page 18: Launchpad Current Limitation
Figure 17, when the power is supplied from the onboard USB connector. Copyright © 2017, Texas Instruments Incorporated Figure 17. Jumper Settings When Used With LaunchPad Kit CAUTION Because two power sources exist in this setup, it is important to follow the power-up sequence. -
Page 19: Hardware Change Log
In hibernate mode, pullup resistor R296 must be removed to enable the lowest current state. SWRU457A – February 2017 – Revised August 2018 ® CC3120 SimpleLink™ Wi-Fi BoosterPack™ Plug-In Module and IoT Submit Documentation Feedback Solution Copyright © 2017–2018, Texas Instruments Incorporated... - Page 20 Changes from February 7, 2017 to March 2, 2017 (from * Revision (February 2017) to A Revision) ......Page ........................• Changed Section 5.2 ....................• Upated CC3120 Product Page link........................• Updated SDK link. Revision History SWRU457A – February 2017 – Revised August 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
- Page 21 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
