8.6 TX Power and IBAT Versus TX Power Level Settings

Figure 8-1, Figure 8-2, and
the CC3220MODS module at modulations of 1 DSSS, 6 OFDM, and 54 OFDM, respectively. For the
CC3220MODSF module, the IBAT current has an increase of approximately 10 mA to 15 mA depending on
the transmitted rate. The TX power level will remain the same.

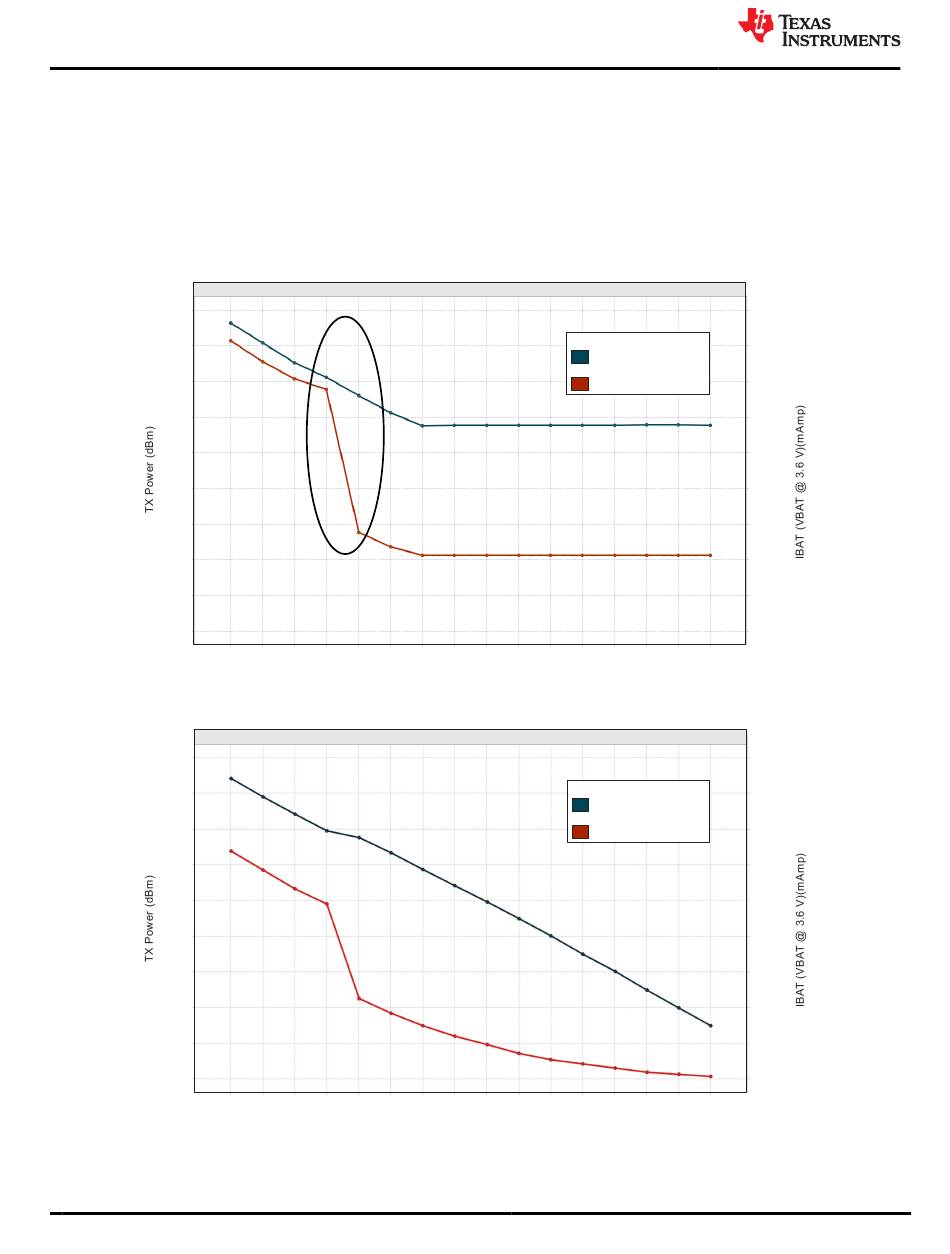

In Figure 8-1, the area enclosed in the circle represents a significant reduction in current during transition from
TX power level 3 to level 4. In the case of lower range requirements (14-dBm output power), TI recommends
using TX power level 4 to reduce the current.
19.00
17.00
15.00
13.00
11.00
9.00
7.00
5.00
3.00
1.00
0
Figure 8-1. TX Power and IBAT vs TX Power Level Settings (1 DSSS)
19.00
17.00
15.00
13.00
11.00
9.00
7.00
5.00
3.00
1.00
0
Figure 8-2. TX Power and IBAT vs TX Power Level Settings (6 OFDM)
30 Submit Document Feedback
Figure 8-3 show TX Power and IBAT versus TX power level settings for
1 2 3 4 5 6
TX power level setting
1 2 3 4 5 6
TX power level setting
Product Folder Links:
1 DSSS
Color by
TX Power (dBm)
IBAT (VBAT @ 3.6 V)
7 8 9 10 11 12
6 OFDM
Color by
TX Power (dBm)
IBAT (VBAT @ 3.6 V)
7 8 9 10 11 12
CC3220MOD CC3220MODA
280.00
264.40
249.00
233.30
218.00
202.00
186.70
171.00
155.60
140.00
13 14 15
280.00
264.40
249.00
233.30
218.00
202.00
186.70
171.00
155.60
140.00
13 14 15
