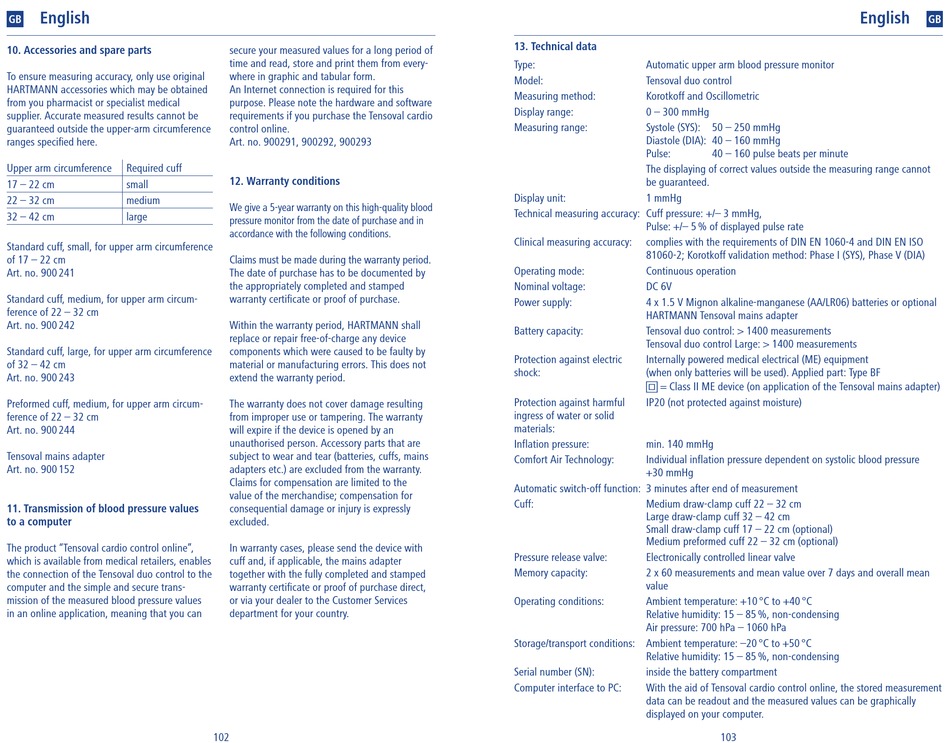

10. Accessories and spare parts

To ensure measuring accuracy, only use original
HARTMANN accessories which may be obtained
from you pharmacist or specialist medical
supplier. Accurate measured results cannot be
guaranteed outside the upper-arm circumference
ranges specified here.
Upper arm circum ference Required cuff
17 – 22 cm small
22 – 32 cm medium
32 – 42 cm large
Standard cuff, small, for upper arm circumference
of 17 – 22 cm
Art. no. 900 241
Standard cuff, medium, for upper arm circum-
ference of 22 – 32 cm
Art. no. 900 242
Standard cuff, large, for upper arm circumference
of 32 – 42 cm
Art. no. 900 243
Preformed cuff, medium, for upper arm circum-
ference of 22 – 32 cm
Art. no. 900 244
Tensoval mains adapter
Art. no. 900 152
11. Transmission of blood pressure values
to a computer
The product "Tensoval cardio control online",
which is available from medical retailers, enables
the connection of the Tensoval duo control to the
computer and the simple and secure trans-
mission of the measured blood pressure values
in an online application, meaning that you can
secure your measured values for a long period of
time and read, store and print them from every-
where in graphic and tabular form.
An Internet connection is required for this
purpose. Please note the hardware and software
requirements if you purchase the Tensoval cardio
control online.
Art. no. 900291, 900292, 900293

12. Warranty conditions

We give a 5-year warranty on this high-quality blood
pressure monitor from the date of purchase and in
accordance with the following conditions.
Claims must be made during the warranty period.
The date of purchase has to be documented by
the appropriately completed and stamped
warranty certificate or proof of purchase.
Within the warranty period, HARTMANN shall
replace or repair free-of-charge any device
components which were caused to be faulty by
material or manufacturing errors. This does not
extend the warranty period.
The warranty does not cover damage resulting
from improper use or tampering. The warranty
will expire if the device is opened by an
unauthorised person. Accessory parts that are
subject to wear and tear (batteries, cuffs, mains
adapters etc.) are excluded from the warranty.
Claims for compensation are limited to the
value of the merchandise; compensation for
consequential damage or injury is expressly
excluded.
In warranty cases, please send the device with
cuff and, if applicable, the mains adapter
together with the fully completed and stamped
warranty certificate or proof of purchase direct,
or via your dealer to the Customer Services
department for your country.
102

13. Technical data

Type: Automatic upper arm blood pressure monitor
Model: Tensoval duo control
Measuring method: Korotkoff and Oscillometric
Display range: 0 – 300 mmHg
Measuring range: Systole (SYS):
Diastole (DIA):
Pulse:
The displaying of correct values outside the measuring range cannot
be guaranteed.
Display unit: 1 mmHg
Technical measuring accuracy: Cuff pressure: +/– 3 mmHg,
Pulse: +/– 5 % of displayed pulse rate
Clinical measuring accuracy: complies with the requirements of DIN EN 1060-4 and DIN EN ISO
81060-2; Korotkoff validation method: Phase I (SYS), Phase V (DIA)
Operating mode: Continuous operation
Nominal voltage: DC 6V
Power supply: 4 x 1.5 V Mignon alkaline-manganese (AA/LR06) batteries or optional
HARTMANN Tensoval mains adapter
Battery capacity: Tensoval duo control: > 1400 measurements
Tensoval duo control Large: > 1400 measurements
Protection against electric Internally powered medical electrical (ME) equipment
shock: (when only batteries will be used). Applied part: Type BF
 = Class II ME device (on application of the Tensoval mains adapter)
Protection against harmful IP20 (not protected against moisture)
ingress of water or solid
materials:
Inflation pressure: min. 140 mmHg
Comfort Air Technology: Individual inflation pressure dependent on systolic blood pressure
+30 mmHg
Automatic switch-off function: 3 minutes after end of measurement
Cuff: Medium draw-clamp cuff 22 – 32 cm
Large draw-clamp cuff 32 – 42 cm
Small draw-clamp cuff 17 – 22 cm (optional)
Medium preformed cuff 22 – 32 cm (optional)
Pressure release valve: Electronically controlled linear valve
Memory capacity: 2 x 60 measurements and mean value over 7 days and overall mean
value
Operating conditions: Ambient temperature: +10 °C to +40 °C
Relative humidity: 15 – 85 %, non-condensing
Air pressure: 700 hPa – 1060 hPa
Storage/transport conditions: Ambient temperature: –20 °C to +50 °C
Relative humidity: 15 – 85 %, non-condensing
Serial number (SN): inside the battery compartment
Computer interface to PC: With the aid of Tensoval cardio control online, the stored measurement
data can be readout and the measured values can be graphically
displayed on your computer.
English
50 – 250 mmHg
40 – 160 mmHg
40 – 160 pulse beats per minute
