Page 2
EN – Infrared thermometer for non-contact forehead temperature measurement Instructions for Use ..............4–25 TR – Kızılötesi, alından temassız ateş ölçümü için ateş ölçer Kullanma talimatı ..............26– 47 Electromagnetic Compatibility Information ..........88 Warranty certificate / Garanti belgesi / ......
Page 3

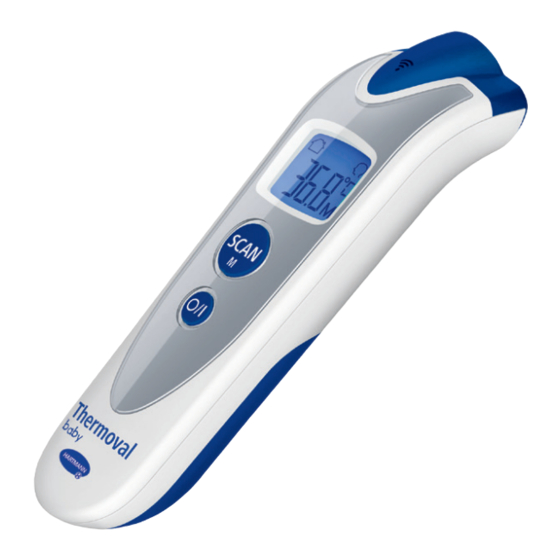

Device and display description Cihazın ve ekranın özellikleri...
Page 4
1. Measuring sensor 4. SCAN button to start 6. ON/OFF button for switching the Ölçüm sensörü measurement and to call up the device on and off memory function Cihazı açmak ve kapatmak için Ölçümü başlatmak ve belleği AÇMA/KAPAMA düğmesi görüntülemek için 2.
Page 5
These instructions for use will guide you through the individual steps for taking temperature on the forehead using the Thermoval baby. You will be given important and useful hints to ensure that you obtain reliable results regarding your body temperature.
English Table of contents Page 1. Introduction .................................................6 2. Signs and symbols ...............................................7 3. Important information ............................................8 4. General information on body temperature ......................................12 5. Advantages of the thermometer ........................................13 6. Initial operation of the device ..........................................14 7. Measuring the body temperature .........................................14 8.
English 1. Introduction Thermoval baby is a thermometer that uses infrared technology to measure the temperature of the body or the surface of an object without contact. Thermoval baby offers quicker temperature measurement compared to conventional thermometers. A scan over the forehead without skin contact provides a reliable body temperature measurement with Thermoval baby.
English 2. Signs and symbols Dispose of packaging in an environmentally responsible way Follow instructions for use Caution (Please note) Symbol for the marking of electrical and electronic equipment Protected against solid objects with a diameter of 12.5 mm and IP22 against vertically falling drops of water when enclosure tilted up to 15°...
■ The additional object mode of Thermoval baby allows for the temperature The Thermoval baby is a reusable, digital infrared thermometer for non-contact measurement of the surface of objects or the ambient temperature. measurement on the forehead that is intended for temporary monitoring of the body temperature of humans and can be used by laypersons and healthcare professionals in clinical and domestic settings.
Page 10
English via infrared radiation emitted by the body. Even when temperature measurement is carried out correctly, the reading can vary slightly compared Safety instructions concerning the device to a rectal, oral or axillary temperature measurement using a digital This thermometer consists of high-quality electronic precision components. The thermometer.
Page 11
English ■ Please comply with the storage, transport and operating conditions defined in ■ Using the thermometer on different people may not be suitable if certain Chapter 14 – Technical data. Storing or using the device outside the specified acute infectious diseases are present, because germs may be transferred temperature and humidity range can affect measurement accuracy or the from one person to another despite mandatory disinfecting by cleaning and function of the device.
Page 12
■ Do not disassemble, open or crush batteries. Instructions for measurement function check Every Thermoval device has been carefully tested by HARTMANN for measurement accuracy and has been developed with a view to a long service life. We recommend carrying out a metrological check once a year for devices in professional use, for example, in pharmacies, medical practices or hospitals.
English 4. General information on body temperature Table of measured values (in °C): The human body regulates the body temperature to a target value, although Measurement site body temperature can fluctuate by up to 1 °C over the course of a day. Description Ear / forehead Rectum Mouth / armpit...
Designed to meet customer needs, it meets high stability Visual fever alert standards. If your child’s body temperature is 37.6 °C or higher, the Thermoval baby screen will light up red as a visual alert to indicate a fever.
Thermoval baby is now ready for operation. ■ Do not remove the measuring device from the measuring area until the blue positioning light has gone off after 3 seconds.
Page 16
English ■ Please note that the thermometer and the person whose temperature is to be values are obtained when you scan the entire area starting from the middle measured should both be in a moderately warm room for at least 30 minutes of the forehead and over the temple.
Page 17
English Maintain the measuring distance Measurement process finished 3–5 cm 4. Position the thermometer over the middle of the forehead at 7. Read the measured temperature displayed on the screen. a distance of 3 cm – 5 cm from the skin. The result is displayed for five seconds and then the flashing ‘°C’...
English ■ Please make sure the thermometer is in the same room as the object to be In the early stages of fever, a specific physiological effect called measured for at least 30 minutes before taking the reading. In cases of high vasoconstriction can occur.
You do not need to point the device at any specific object. The device is ready to take a measurement as soon as Thermoval baby now determines the temperature of the the ‘°C’ symbol flashes. ambient air. After 3 seconds, the temperature appears on the screen and the screen lights up blue.
Temperature below 10. Explanation of error messages 34.0 °C, measured Thermoval baby is a clinically tested, premium product. Yet error messages may in forehead mode occur, such as an ambient temperature reading that is too high or too low, if the measured temperature is outside the range of human body temperature, if the battery is flat or in very rare instances, if a system error occurs.
Page 21
English Error message Possible causes Remedy Error message Possible causes Remedy Temperature above Check that the mode switch is in Malfunction message Check the thermometer for 100 °C, measured the correct position. (The thermometer is not possible damage. Remove and in object mode Only use the thermometer within functioning correctly or...
English 11. Cleaning and care of the device Error message Possible causes Remedy Implausible Implausible measured Please follow the directions measured values often occur for correct use given in the The measuring sensor is the most important and most sensitive part of values due to inappropriate instructions for use and all...
■ HARTMANN will replace or repair free of charge any faulty device components caused by material faults or manufacturing errors within the warranty period. This does not extend the warranty period.
English 13. Contact details for customer queries ZA – HARTMANN South Africa Epsom Avenue, Northriding, 2169 Johannesburg www.hartmann.info Tel. +27 860 4278 6266 phzahelpdesk@hartmann.info If necessary, please contact us at the above address if you have any questions regarding the initial startup, use and maintenance of the device or to report an unexpected operation or incident.
Product description: Infrared thermometer for non-contact forehead reference) temperature measurement LCD display: 4-digit plus special icons Model: Thermoval baby Acoustic signal: No acoustic signal Measuring range: Forehead mode: 34.0 °C – 42.2 °C Memory capacity: 10 measured values Object mode: 0 °C – 100 °C...
Page 26
English Legal requirements and guidelines Storage / transport Ambient temperature: –25 °C to +55 °C The Thermoval baby infrared thermometer conforms to the European conditions: Relative humidity: regulations, that are subject to the Medical Device Directive 93/42/EEC and 15% to 95%, non-condensing bears the CE mark.
Page 27
Teslimat kapsamı: Öncelikle HARTMANN marka bir ateş ölçer satın aldığınız için sizi kutlarız. • Termometre Thermoval baby, insanların vücut ısısını alından temassız bir şekilde ölçmek için • 2x1,5V AAA pil kaliteli bir üründür. Bu ateş ölçer, çocuklarda, bebeklerde ve yetişkinlerde ateş...
Page 28
Türkçe İçindekiler Sayfa 1. Giriş ...................................................28 2. İşaretler ve semboller ............................................29 3. Önemli bilgiler ..............................................30 4. Vücut ısısına ilişkin genel bilgiler ........................................34 5. Termometrenin avantajları ..........................................35 6. Cihazın işletime alınması ............................................36 7. Vücut sıcaklığının ölçümü ..........................................36 8. Obje sıcaklığı ölçümü ..........................................39 9.
ölçerler ile karşılaştırıldığında daha hızlı ölçüm avantajı sunmaktadır. Isı ölçümü için cilt ile temas etmeden alın üzerinde yapılan tarama sayesinde, Thermoval baby ateş ölçer ile güvenilir bir vücut ısısı ölçümü elde edilir. Ölçüm işlemi daha kısa sürdüğünden ve alın vücudun yüzeyinde yer aldığından dolayı, doğru ölçüm yapılabilmesi için bazı...
Türkçe 2. İşaretler ve semboller Ambalajı çevreye zarar vermeden bertaraf edin Kullanım kılavuzuna uyun Dikkat (Lütfen dikkate alın) Elektrikli ve elektronik cihazların işaretlenmesinde kullanılan sembol 12,5 mm ve daha büyük çaplı katı cisimlere ve azami 15° gövde IP22 eğiminde dikey damlayan suya karşı korumalıdır 93/42/AET sayılı...
■ Doktorunuza ölçtüğünüz sıcaklıkları açıkladığınızda, bu sıcaklık değerlerinin alından yapılan ölçümlerde belirlendiğini de belirtin. ■ Alın ölçümü inkübatörlerde kullanım için uygun değildir. ■ Thermoval baby ateş ölçerin ilave obje modu , objelerin sıcaklığının veya Kullanıma ilişkin önemli bilgiler oda sıcaklığının hassas bir şekilde ölçülmesini mümkün kılar.
Page 32
Türkçe ■ Bebeklerde ve küçük çocuklarda temassız alın ölçümü kullanıldığında ■ Bunlar işlevini bozabileceğinden, cihazı aşırı sıcaklıklara veya nem, toz ve tüye (özellikle ilk 6 ayda), ölçüm sonucunu rektal ölçümle doğrulamanızı öneririz. veya doğrudan güneş ışığına maruz bırakmayın. ■ Kendi kendinize elde ettiğiniz ölçüm sonuçları yalnızca bilgi amaçlıdır ■...
Page 33
■ Yalnızca yüksek kaliteli piller kullanın (Bölüm 14 "Teknik veriler" altında Teknik ölçüm kontrolüne ilişkin bilgiler sağlanan bilgilere bakın). Pil zayıfken belirtilen ölçüm performansı garanti Her bir Thermoval cihazının ölçüm hassasiyeti HARTMANN tarafından itina edilemez. ile kontrol edilmiş olup cihazın uzun ömürlü olmasını sağlayacak şekilde ■...
Page 34
Türkçe İmha talimatları ■ Çevrenin korunması bakımından kullanılmış piller evsel atıklarla birlikte bertaraf edilmemelidir. Lütfen geçerli imha yönetmeliklerini dikkate alın veya pilleri atık pil toplama kutularına atın. ■ Bu ürün, 2012/19/AB sayılı Atık Elektrikli ve Elektronik Eşya Yönetmeliği'ne uygundur ve buna uygun şekilde işaretlenmiştir. Elektronik cihazları kesinlikle evsel atıklarla birlikte bertaraf etmeyin.
Türkçe 4. Vücut ısısına ilişkin genel bilgiler Ölçüm değeri tablosu (°C olarak): İnsan vücudu, vücut ısısını belirli bir ayar noktasına göre ayarlar; bu ayar noktası, Ölçüm yeri gün içerisinde en fazla 1 °C kadar farklılık gösterir. Yaşam süresince ortalama Tanım Kulak / Alın Rektum Ağız / Koltuk altı...
Ateşin seyrine genel bakış Modern ölçüm sensörü teknolojisi sayesinde yüksek ölçüm hassasiyeti Thermoval baby, kayıt fonksiyonuna (M) en fazla 10 ölçüm değeri kaydeder ve Kızılötesi sensörler, temassız alından ateş ölçümü için yüksek ölçüm hassasiyeti çocuğunuzun ateş seyri hakkında genel bakış sağlar.
şeridini lütfen dikkatle çekip çıkarın. Bu işlemlerden ortasından şakak dahil şakak kısmına kadar yapılmalıdır. sonra Thermoval baby çalışmaya hazır olur. ■ Ölçüm cihazını, ancak mavi konumlandırma ışığı söndükten üç saniye sonra Pillerin takılması / değiştirilmesi ölçüm alanından uzaklaştırın.
Page 38
Türkçe ■ En iyi ölçüm doğruluğu için alnınızı ve şakaklarınızı saçlardan, terden, makyaj 7.1 Alından ölçümün gerçekleştirilmesi malzemelerinden veya kirden arındırın. Termometre, deri tarafından alın ve şakak kısmında ve çevredeki dokudan yayılan ■ Duş aldıktan, yüzdükten, vb. hemen sonra alın ıslak olduğunda ölçüm kızılötesi ışını...
Page 39
Türkçe Ölçme uzaklığını koruyun Ölçüm işlemi bitti 3–5 cm 4. Termometreyi, ciltten 3 cm – 5 cm uzaklıkta alnın ortasına 7. Ölçülen sıcaklığı ekrandan okuyun. Ölçüm sonucu, beş konumlandırın. saniye gösterilir ve ardından ekranda "°C" sembolü yanıp söner. Cihaz, şimdi bir sonraki ölçüm için hazırdır. Ölçüm işlemini başlatın Aşağıda belirtilen durumlarda, sıcaklığı...
Türkçe ■ Ölçüm işleminde, termometre ile ölçülen obje arasında 3 cm – 5 cm ölçüm Erken ateş evresinde, damar daralması olarak adlandırılan özel bir uzaklığı bırakıldığında ve sensör merceğinin üzerinde yoğuşma suyu fiziksel etki meydana gelebilir. Bu tür bir etkide deri serin olur ve olmadığında tam doğru ölçüm değerleri elde edilir.
Cihaz, "°C" sembolü yanıp sönmeye başladığında ölçüme hazırdır. Cihazı odada tutun ve SCAN düğmesine basın. Bunun için belirli bir objeyi hedef almanıza gerek yoktur. Thermoval baby, Ölçme uzaklığını koruyun şimdi ortam havasının sıcaklığını belirler. Ölçülen sıcaklık, 3. Termometreyi, 3 cm – 5 cm uzaklıktan sıcaklığını ölçmek 3–5 cm...
ölçüm değerinden yeniden başlar. altında ölçüldü 10. Hata göstergelerinin açıklaması Thermoval baby, klinik ortamda test edilip onaylanmış yüksek kaliteli bir üründür. Buna rağmen, örneğin çok yüksek veya çok düşük ortam sıcaklığında, alın modunda ölçülen sıcaklık insan vücut ısısı sınırlarının dışında olduğunda, pil...
Page 43
Türkçe Hata Hata Olası sebepler Giderilmesi Olası sebepler Giderilmesi göstergesi göstergesi Sıcaklık obje modunda Mod şalterinin doğru konumda Hatalı çalışma Cihazı olası hasarlara karşı 100 °C'nin olup olmadığını kontrol edin. göstergesi kontrol edin. Yeni pilleri takın. üzerinde ölçüldü Termometreyi sadece belirtilen (Termometre düzgün Hata devam ederse müşteri ölçüm aralıklarında kullanın...
Türkçe 11. Cihazın temizliği ve bakımı Hata Olası sebepler Giderilmesi göstergesi Makul olmayan Makul olmayan ölçüm Lütfen kullanım kılavuzundaki Ölçüm sensörü, cihazın en önemli ve hassas parçasıdır. En doğru ölçüm değerleri değerleri, çoğu zaman ve 3, 7 ve 8. bölümlerdeki ölçümleri elde etmek için cihaz her zaman temiz ve hasarsız olmalıdır.
Satın alma tarihi, usulüne uygun şekilde doldurulmuş ve kaşe vurulmuş garanti belgesi veya satış fişi ile kanıtlanacaktır. ■ HARTMANN firması, garanti süresi dahilinde malzeme ve üretim hatalarından kaynaklanan arızalı cihaz parçalarını ücretsiz olarak değiştirir veya bu parçaları onarır. Bu tür işlemler garanti süresinin uzatılmasına yol açmaz.
Türkçe 13. Müşteri başvuruları için iletişim bilgileri TR – PAUL HARTMANN Ltd. Sti. 34742 Kadıköy/Kozyatağı, İstanbul www.hartmann.info Gerektiğinde cihazın çalıştırılması, kullanılması ve bakımına ilişkin sorularınızı bize iletmek veya çalışması sırasında meydana gelen beklenmedik bir durumu bildirmek üzere yukarıda belirttiğimiz adresten bize ulaşın.
Ürün tanımı: Kızılötesi, alından temassız ateş ölçümü için ateş ölçer Çalışma modu: Eşitleme modunda tıbbi termometre (oral referans) Model: Thermoval baby LCD gösterge: 4 haneli ve özel semboller Ölçüm aralığı: Alın modu: 34,0 °C – 42,2 °C Sesli uyarı: Sesli uyarı yoktur Obje modu: 0 °C –...
Page 48
Türkçe Çalışma koşulları Alın modu: Su veya katı maddelerin IP 22 (12,5 mm ve daha büyük çaplı katı cisimlere Ortam sıcaklığı: +15 °C ile +40 °C arası zararlı girişine karşı ve azami 15° gövde eğiminde dikey damlayan suya koruma karşı korumalıdır) Obje modu: Ortam sıcaklığı: +5 °C ile +40 °C arası...
繁體中文 13. 客戶查詢的聯絡方式 PAUL HARTMANN Asia-Pacific Ltd. Suite 3102-3103, 31/F Manhattan Place 23 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Tel: +852 2953-7100 Fax: +852 2796-7610 service@hk.hartmann.info 如果您對於首次啟動、使用、裝置維護、報告意外操作或狀況有任 何疑問,必要時請通過上述地址與我們聯繫。 最近資料更新日期:2019-04 2019-06 保 任...
繁體中文 14. 技術資料 在校準模式 (以口測溫度為基準) 工作模式: 的醫用溫度計 產品說明: 非接觸式額探紅外線體溫計 4 位數顯示及特殊符號 液晶顯示幕: 名稱: Thermoval baby 無音響信號 音響信號: 額頭測溫模式:34.0 °C – 42.2 °C 測量範圍: 10 組測量值 儲存容量: 物體測溫模式:0 °C – 100 °C 視覺發燒警告/ 當在額頭測溫模式測量所得的額頭體溫等於 0.1 °C (測量單位:攝氏度) 最小顯示單位: 背景照明 或者大於 37.6 °C 時,液晶顯示幕的背景照明...
Page 88
繁體中文 法律要求和條 例 存放/運輸條件 環境溫度:– 25 °C 至 + 55 °C Thermoval baby 紅外線體溫計符合關於醫療產品的歐盟法令 相對空氣濕度: 93/42/EWG,並具有 CE 標記。 15 % 至 95 %,不冷凝 自動關機: 在測量結束約 1 分鐘後 供電方式 / 電池類型: 2 x 1.5 V 鹼性錳電池 (A A A / LR03) 電池容量:...
Page 89
Electromagnetic Compatibility Information The Thermoval baby infrared thermometer is intended for use in one of the electromagnetic environments specified below (see Table 1–3). The customer or user of the Thermoval baby should assure that it is used in such an environment.
Page 90
Field strengths from fixed transmitters, such as base stations for radios, (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength, in the location in which the Thermoval baby is used, exceeds the applicable RF compliance level above, the Thermoval baby should be observed to verify normal operation.
Page 91
For NON-LIFE-SUPPORT MEDICAL-ELECTRICAL (ME) DEVICES and ME SYSTEMS: Recommended separation distances between portable and mobile RF communications equipment and the Thermoval baby The Thermoval baby is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Thermoval baby can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Thermoval baby as recommended below, according to the maximum output power of the communications equipment.
Warranty certificate Garanti belgesi Infrared thermometer for non-contact forehead temperature measurement · Kızılötesi, alından temassız ateş ölçümü için ateş ölçer Purchase date · Satın alma tarihi · Serial number (see battery compartment) · Seri numarası (bkz. pil bölmesi) · Reason for warranty claim · Şikayet sebebi · Dealer’s stamp ·...
