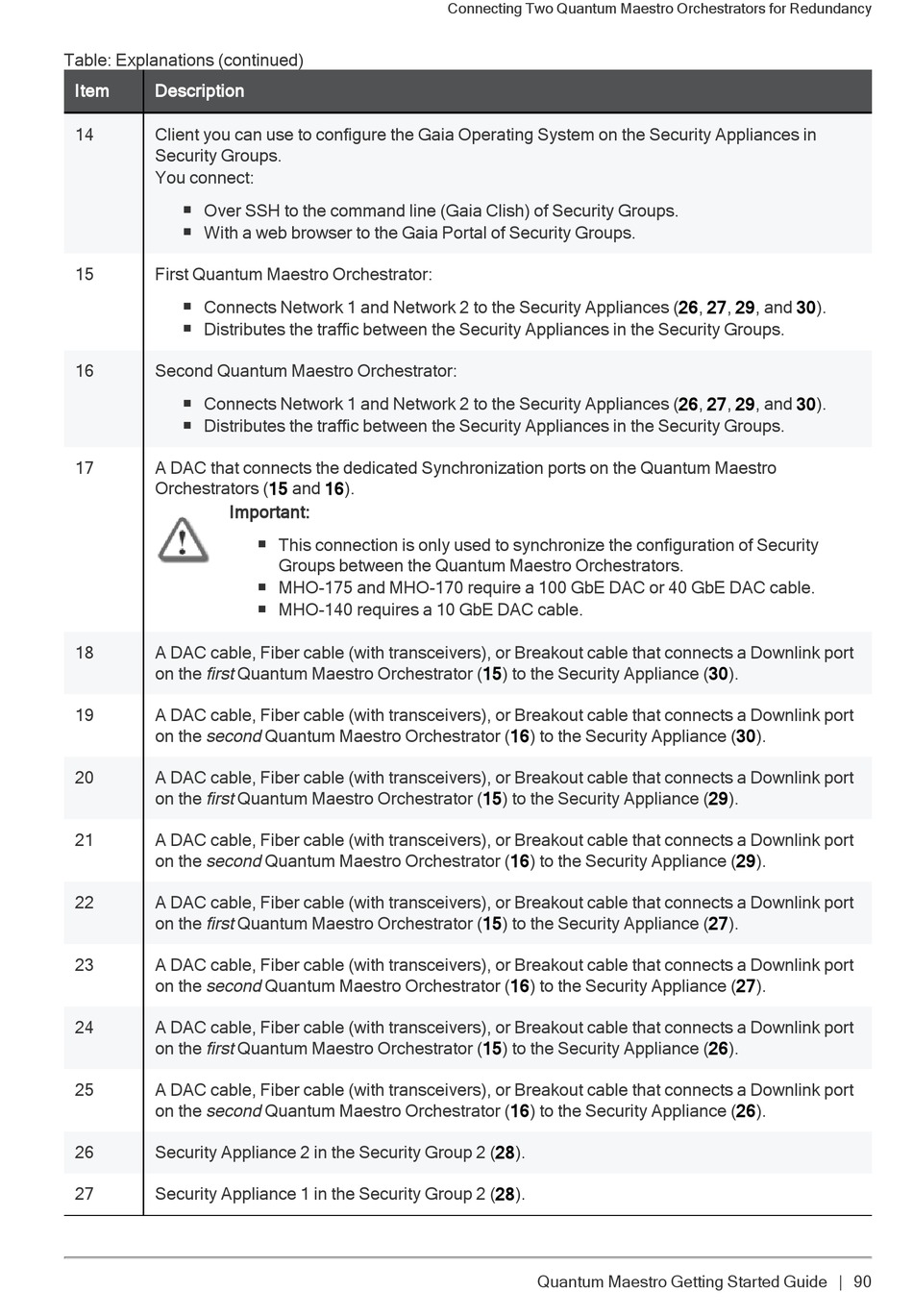

Table: Explanations (continued)
Item Description
14 Client you can use to configure the Gaia Operating System on the Security Appliances in
Security Groups.
You connect:
Over SSH to the command line (Gaia Clish) of Security Groups.
n
With a web browser to the Gaia Portal of Security Groups.
n
15 First Quantum Maestro Orchestrator:
Connects Network 1 and Network 2 to the Security Appliances (26, 27, 29, and 30).
n
Distributes the traffic between the Security Appliances in the Security Groups.
n
16 Second Quantum Maestro Orchestrator:
Connects Network 1 and Network 2 to the Security Appliances (26, 27, 29, and 30).
n
Distributes the traffic between the Security Appliances in the Security Groups.
n
17 A DAC that connects the dedicated Synchronization ports on the Quantum Maestro
Orchestrators
Important:
18 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the first Quantum Maestro Orchestrator (15) to the Security Appliance (30).
19 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the second Quantum Maestro Orchestrator (16) to the Security Appliance (30).
20 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the first Quantum Maestro Orchestrator (15) to the Security Appliance (29).
21 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the second Quantum Maestro Orchestrator (16) to the Security Appliance (29).
22 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the first Quantum Maestro Orchestrator (15) to the Security Appliance (27).
23 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the second Quantum Maestro Orchestrator (16) to the Security Appliance (27).
24 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the first Quantum Maestro Orchestrator (15) to the Security Appliance (26).
25 A DAC cable, Fiber cable (with transceivers), or Breakout cable that connects a Downlink port
on the second Quantum Maestro Orchestrator (16) to the Security Appliance (26).
26 Security Appliance 2 in the Security Group 2 (28).
27 Security Appliance 1 in the Security Group 2 (28).
(15 and 16).
This connection is only used to synchronize the configuration of Security
n
Groups between the Quantum Maestro Orchestrators.
MHO-175 and MHO-170 require a 100 GbE DAC or 40 GbE DAC cable.
n
MHO-140 requires a 10 GbE DAC cable.
n
